The Ifor Williams GH1054 Plant Trailer features a 24mm resin-bonded heavy-duty platform, 3'9" beavertail ramp, internal tie points, step-off metal mudguards, bucket rest, and full 13 (8) pin EU lighting system for transporting excavators, rollers,... Read More

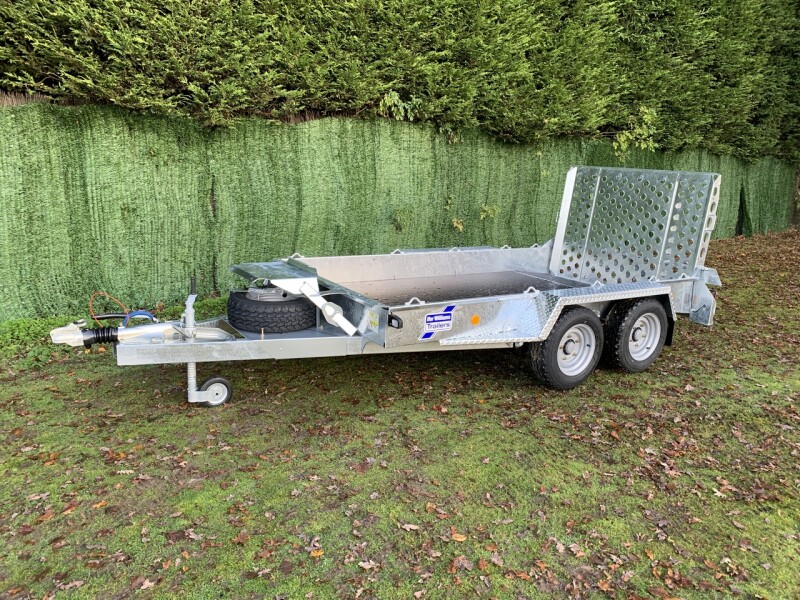

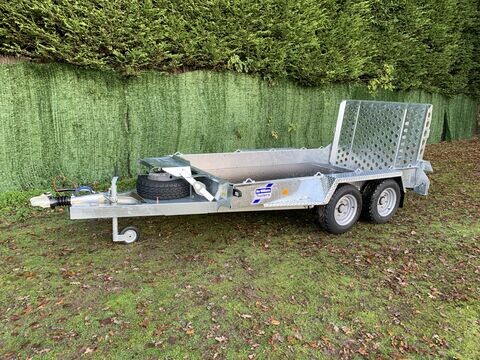

Ifor Williams GH1054 Beavertail Plant Trailer With 3'9" Ramp
The Ifor Williams GH1054 Plant Trailer is an extremely versatile trailer. A 24mm thick, resin-bonded heavy duty platform makes the GH1054 Plant Trailer particularly suitable for transporting a wide variety of plant, including excavators, and many other items of wheeled equipment such as rollers, dumpers and a variety of access platforms.
3500kg Gross Weight.
The 10ft length of the Ifor Williams GH1054 platform, provides ample loading space behind the rear axle, thus allowing a full range of excavators to be loaded along with machines with a more central centre of gravity, such as hi-tip dumpers.
The beavertail lowers the rear of the trailer, enabling the optimum loading gradient of 13°.
🔧 Standard Features:
Jockey Wheel
Heavy Duty Resin-Coated Ply-Wood Platform
Internal Tie Points
Step-Off Metal Mudguards
Bucket Rest
Full 13 (8) Pin EU Lighting System
🔽 Click to Show Optional Extras
Flush Fitted Tie Rings
Towing Eye
Interchangable Number Plate Holder
High Security Hitch Lock
High Security Wheel Clamp
✅ All prices include: ✔️ Factory delivery from Ifor Williams to GT Towing Ltd ✔️ UK VAT (Value Added Tax)
📸 Images are for illustrative purposes. Some items may be optional extras and are not included in the base price.
Tech Spec
Internal Length: 3.04m / 9' 11"
Internal Width: 1.62m / 5' 4"
Overall Length: 5.00m / 16' 5"
Overall Width: 2.09m / 6' 10"
Gross Weight: 3500kg
Unladen Weight: 660kg
Payload: 2840kg
Wheels: 185/70R13C / 13"
