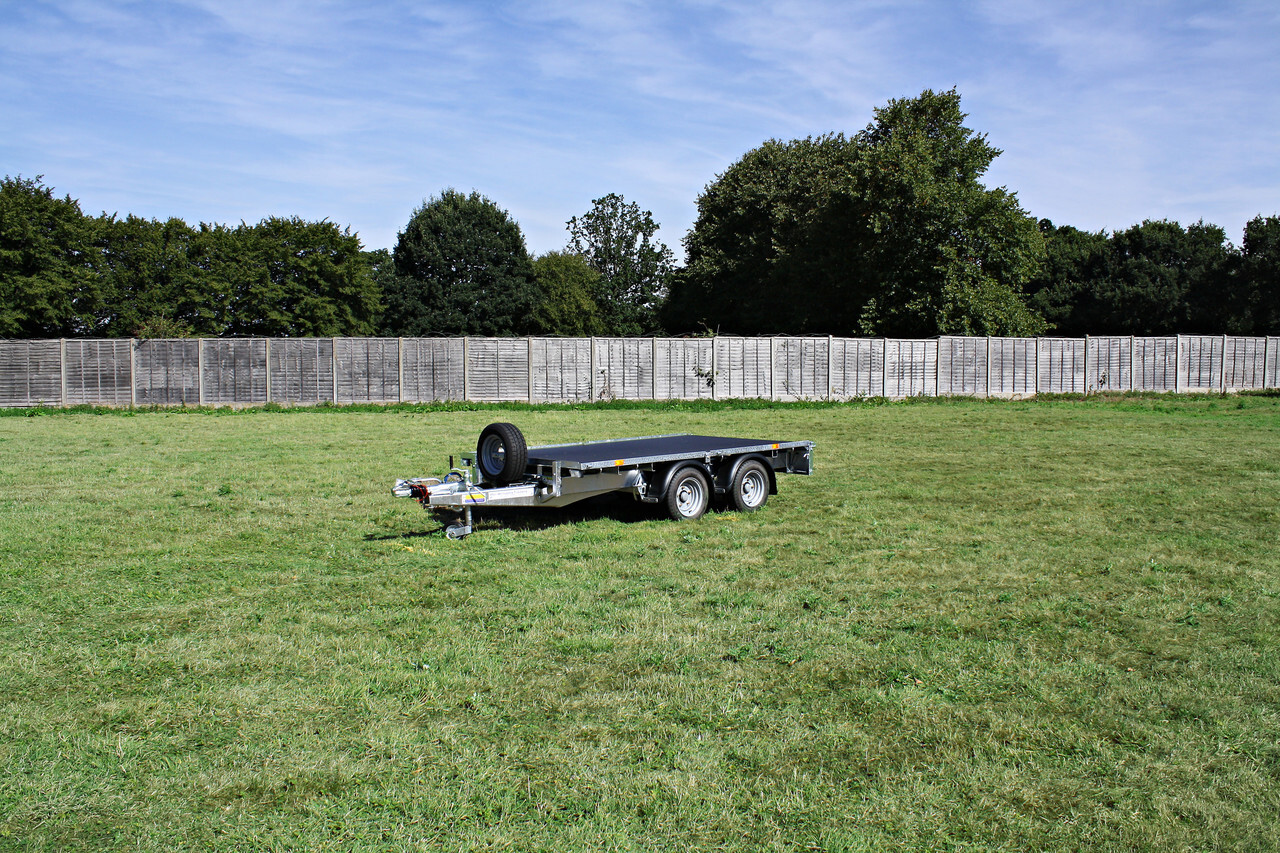

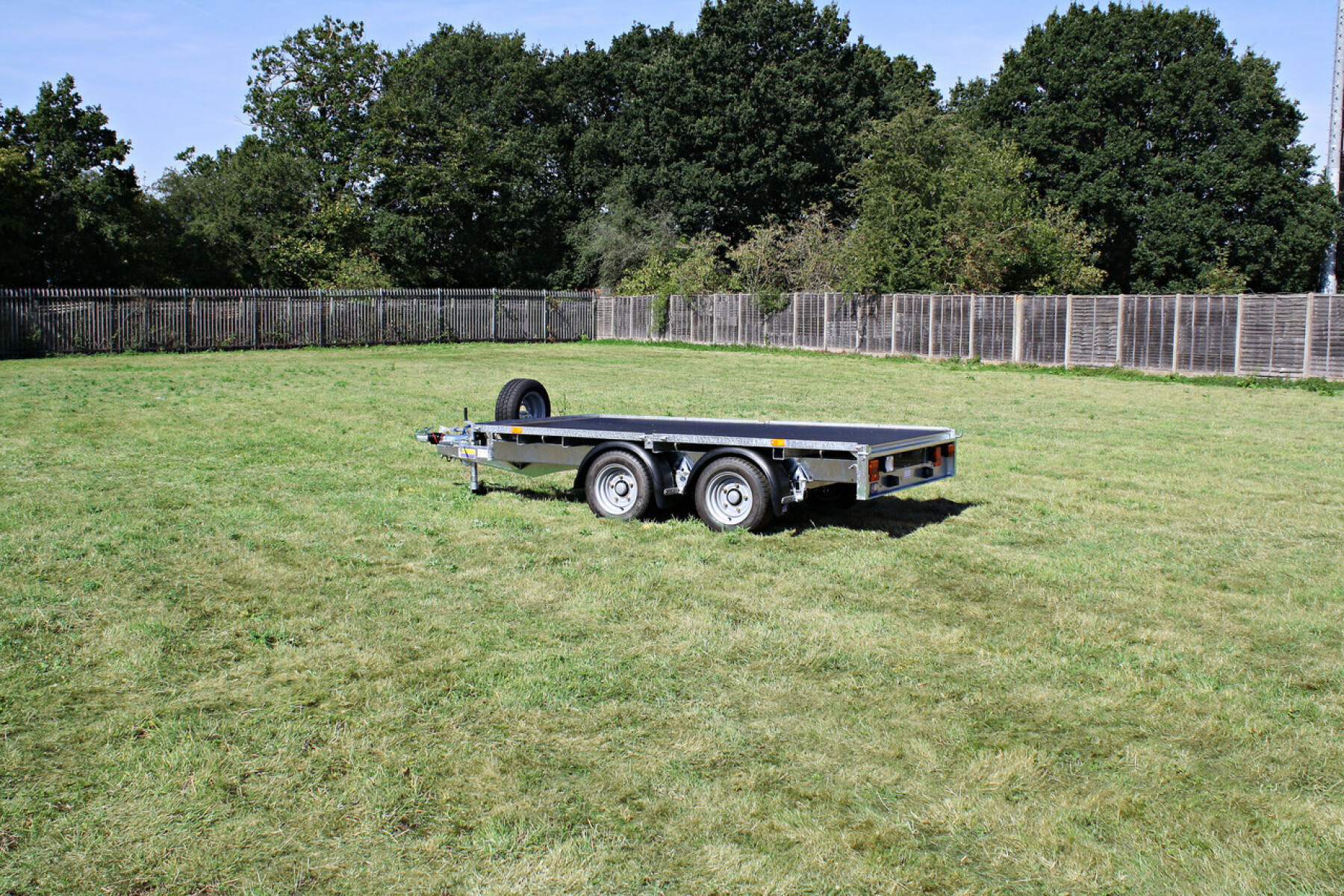

The Ifor Williams LM105HD Flat Bed Trailer is a heavy-duty twin axle trailer built for tradespeople, landscapers, and DIYers who need a strong trailer for transporting equipment, materials, or machinery.
The Ifor Williams LM105HD is part of the heavy-duty LM Series, designed for demanding professional and commercial workloads.
Ideal for transporting a wide variety of loads, the LM105HD is commonly used for:
Construction materials and machinery
Agricultural equipment and vehicles
General haulage and logistics
Landscaping and garden projects
Light vehicle transport (optional rear ramps)
With a reinforced build and a maximum gross weight of 3500kg, this twin-axle trailer offers exceptional payload capacity while remaining towable with standard commercial vehicles.
🔧 Key Features (Standard):
Full 13 (8) Pin EU lighting system
Heavy-duty 12" wheels and tyres
Robust twin-axle configuration
Resin-coated plywood platform
High payload capacity for heavy and bulky loads
Spare wheel included as standard
Factory delivery charge included in the price
📦 Optional Extras
🧱 Drop Side Kit
🧱 Extended Mesh Side Kit
🪵 Aluminium Floor Upgrade
🔗 Flush Fitted Tie Rings
🪜 Ladder Rack
🦿 Rear Support Prop Stands
🛻 Rear Loading Ramps / Skids
🔒 High Security Hitch Lock
🔐 High Security Wheel Clamp
✅ Price includes: Ifor Williams factory delivery to GT Towing Ltd. 💷 All prices include VAT.
🔍 View Model Comparison
Model
Internal Length
Internal Width
Overall Length
Overall Width
Gross Weight
Unladen Weight
Payload
Axles
LM85G
2.44m / 8' 0"
1.52m / 5' 0"
3.80m
1.60m
2700kg
495kg
2205kg
2
LM85HD
2.44m / 8' 0"
1.52m / 5' 0"
3.80m
1.60m
3500kg
525kg
2975kg
2
LM105G
3.01m / 9' 9"
1.68m / 5' 5"
4.35m
1.75m
2700kg
575kg
2125kg
2
LM105HD
3.01m / 9' 9"
1.68m / 5' 5"
4.35m
1.75m
3500kg
605kg
2895kg
2
LM125G
3.62m / 11' 9"
1.68m / 5' 5"
5.00m
1.75m
2700kg
620kg
2080kg
2
LM125HD
3.62m / 11' 9"
1.68m / 5' 5"
5.00m
1.75m
3500kg
650kg
2050kg
2
LM126G
3.62m / 11' 9"
1.98m / 6' 5"
5.00m
2.10m
3500kg
675kg
2825kg
2
LM146G
4.23m / 13' 9"
1.98m / 6' 5"
5.60m
2.10m
3500kg
735kg
2765kg
2
LM146T
4.23m / 13' 9"
1.98m / 6' 5"
5.60m
2.10m
3500kg
845kg
2655kg
3
LM166G
4.77m / 15' 6"
1.98m / 6' 5"
6.20m
2.10m
3500kg
735kg
2705kg
2
LM166T
4.77m / 15' 6"
1.98m / 6' 5"
6.20m
2.10m
3500kg
905kg
2595kg
3
LM186G
5.47m / 17' 9"
1.98m / 6' 5"
6.85m
2.10m
3500kg
855kg
2645kg
2
LM186T
5.47m / 17' 9"
1.98m / 6' 5"
6.85m
2.10m
3500kg
965kg
2535kg
3
📸 Images shown are for illustration purposes only. Some items shown may be optional extras and are not included in the standard trailer price.
Tech Specs
📐 Technical Specifications
Internal Length: 3.01 m / 9' 10"
Internal Width: 1.68 m / 5' 6"
Overall Length: 4.35 m / 14' 3"
Overall Width: 1.75 m / 5' 9"
Gross Weight: 3500 kg / 7,716 lbs
Unladen Weight: 605 kg / 1,334 lbs
Payload Capacity: 2895 kg / 6,382 lbs
Wheels: 195/60R12C / 12"
