Ifor Williams LM146T Flat Bed Trailer
- 🏗️ Construction materials and heavy equipment
- 🚜 Agricultural machinery and vehicles
- 🌳 Landscaping and bulk garden projects
- 🛻 Light vehicle transport using optional rear ramps
Optional Extras

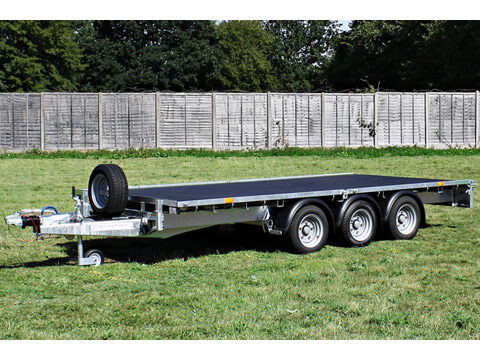

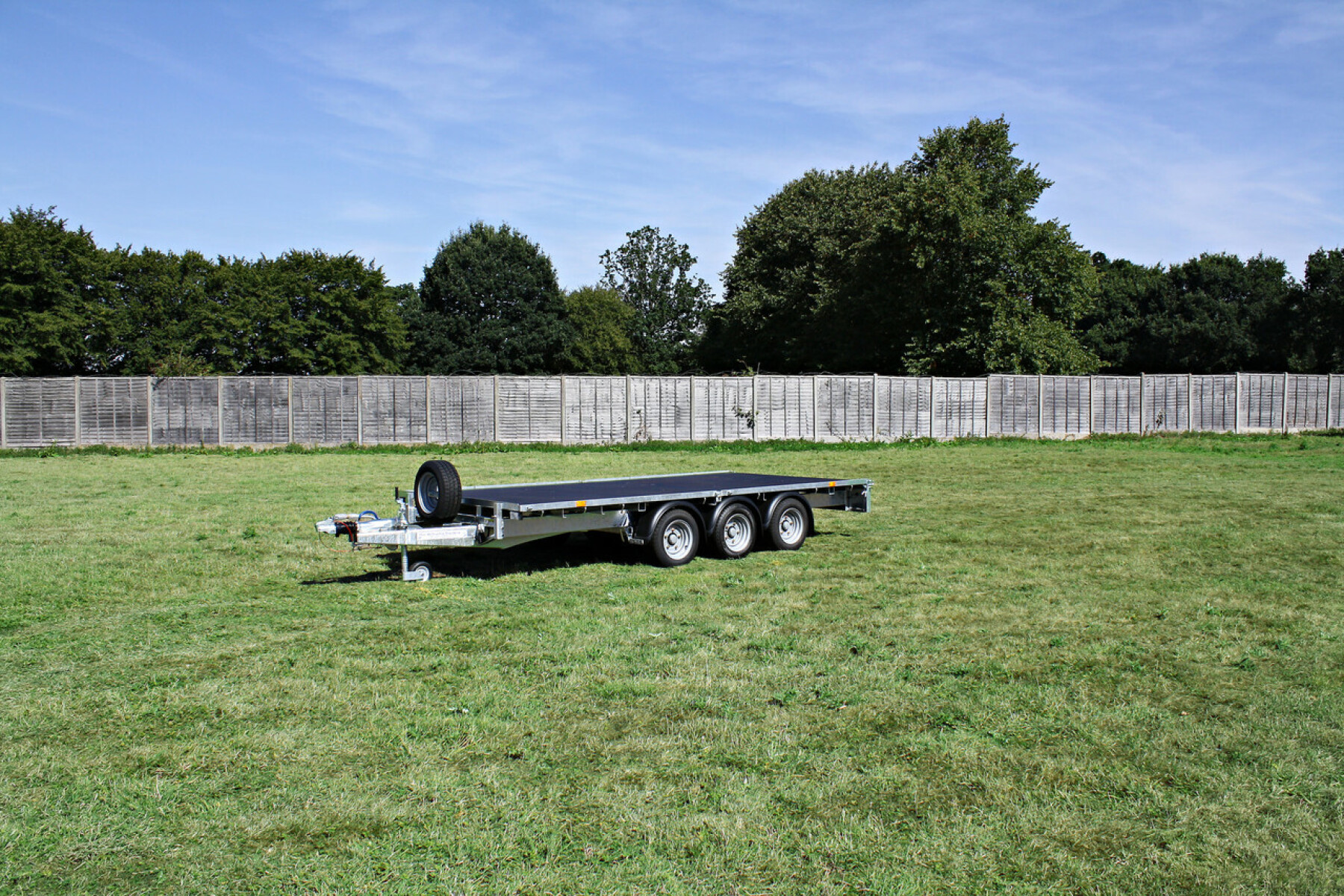

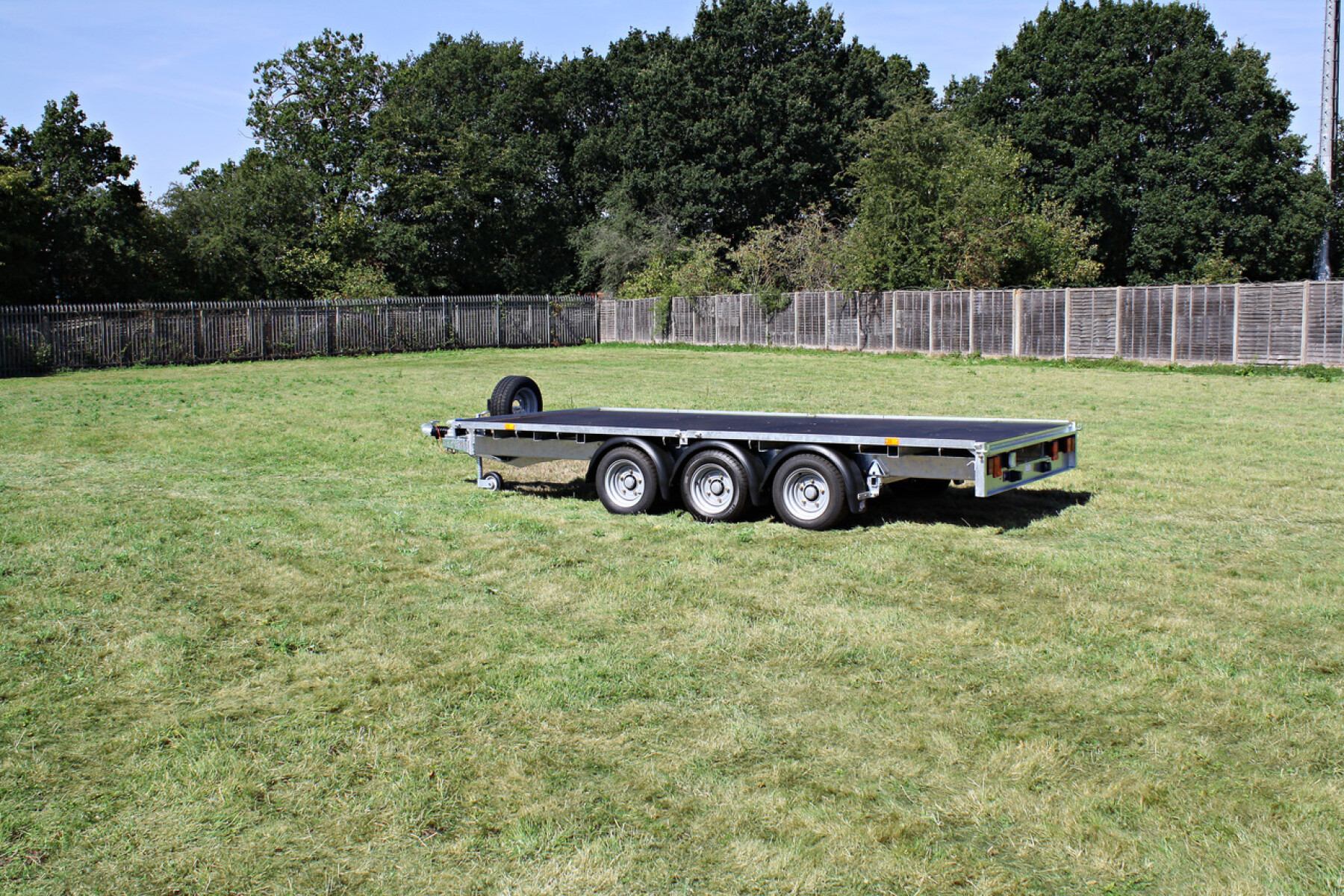

Ifor Williams LM146T Flatbed Trailer
The Ifor Williams LM146T is part of the versatile LM Series, featuring a robust tri-axle configuration for transporting heavier loads while maintaining excellent stability and handling.
Ideal for transporting a wide variety of loads, the LM146T is commonly used for:
- 🏗️ Construction materials and heavy equipment
- 🚜 Agricultural machinery and vehicles
- 🚚 General haulage and commercial transport
- 🌳 Landscaping and bulk garden projects
- 🛻 Light vehicle transport using optional rear ramps
With a strong tri-axle design and a maximum gross weight of 3500kg, the LM146T provides superior payload capacity while remaining safe and easy to tow.
- 💡 Full 13 (8) Pin EU lighting system
- 🛞 Heavy-duty 12" wheels and tyres
- ⚙️ Tri-axle design for maximum stability
- 🪵 Resin-coated plywood platform
- 📦 High payload capacity for heavier loads
- 🔁 Spare wheel included as standard
- 🚚 Factory delivery charge included in the price
📦 Optional Extras
- 🧱 Drop Side Kit
- 🧱 Extended Mesh Side Kit
- 🪵 Aluminium Floor Upgrade
- 🔗 Flush Fitted Tie Rings
- 🪜 Ladder Rack
- 🦿 Rear Support Prop Stands
- 🛻 Rear Loading Ramps / Skids
- 🔒 High Security Hitch Lock
- 🔐 High Security Wheel Clamp
✅ Price includes: Ifor Williams factory delivery to GT Towing Ltd.
💷 All prices include VAT.
🔍 View Model Comparison
| Model | Internal Length | Internal Width | Overall Length | Overall Width | Gross Weight | Unladen Weight | Payload | Axles |
|---|---|---|---|---|---|---|---|---|
| LM85G | 2.44m / 8' 0" | 1.52m / 5' 0" | 3.80m | 1.60m | 2700kg | 495kg | 2205kg | 2 |
| LM85HD | 2.44m / 8' 0" | 1.52m / 5' 0" | 3.80m | 1.60m | 3500kg | 525kg | 2975kg | 2 |
| LM105G | 3.01m / 9' 9" | 1.68m / 5' 5" | 4.35m | 1.75m | 2700kg | 575kg | 2125kg | 2 |
| LM105HD | 3.01m / 9' 9" | 1.68m / 5' 5" | 4.35m | 1.75m | 3500kg | 605kg | 2895kg | 2 |
| LM125G | 3.62m / 11' 9" | 1.68m / 5' 5" | 5.00m | 1.75m | 2700kg | 620kg | 2080kg | 2 |
| LM125HD | 3.62m / 11' 9" | 1.68m / 5' 5" | 5.00m | 1.75m | 3500kg | 650kg | 2050kg | 2 |
| LM126G | 3.62m / 11' 9" | 1.98m / 6' 5" | 5.00m | 2.10m | 3500kg | 675kg | 2825kg | 2 |
| LM146G | 4.23m / 13' 9" | 1.98m / 6' 5" | 5.60m | 2.10m | 3500kg | 735kg | 2765kg | 2 |
| LM146T | 4.23m / 13' 9" | 1.98m / 6' 5" | 5.60m | 2.10m | 3500kg | 845kg | 2655kg | 3 |
| LM166G | 4.77m / 15' 6" | 1.98m / 6' 5" | 6.20m | 2.10m | 3500kg | 735kg | 2705kg | 2 |
| LM166T | 4.77m / 15' 6" | 1.98m / 6' 5" | 6.20m | 2.10m | 3500kg | 905kg | 2595kg | 3 |
| LM186G | 5.47m / 17' 9" | 1.98m / 6' 5" | 6.85m | 2.10m | 3500kg | 855kg | 2645kg | 2 |
| LM186T | 5.47m / 17' 9" | 1.98m / 6' 5" | 6.85m | 2.10m | 3500kg | 965kg | 2535kg | 3 |
📸 Images shown are for illustration purposes only. Some items shown may be optional extras and are not included in the standard trailer price.
📐 Technical Specifications
4.23 m / 13' 11"
1.98 m / 6' 6"
5.60 m / 18' 4"
2.10 m / 6' 11"
3500 kg / 7,716 lbs
845 kg / 1,863 lbs
2655 kg / 5,853 lbs
195/60R12C / 12" (Tri Axle)
