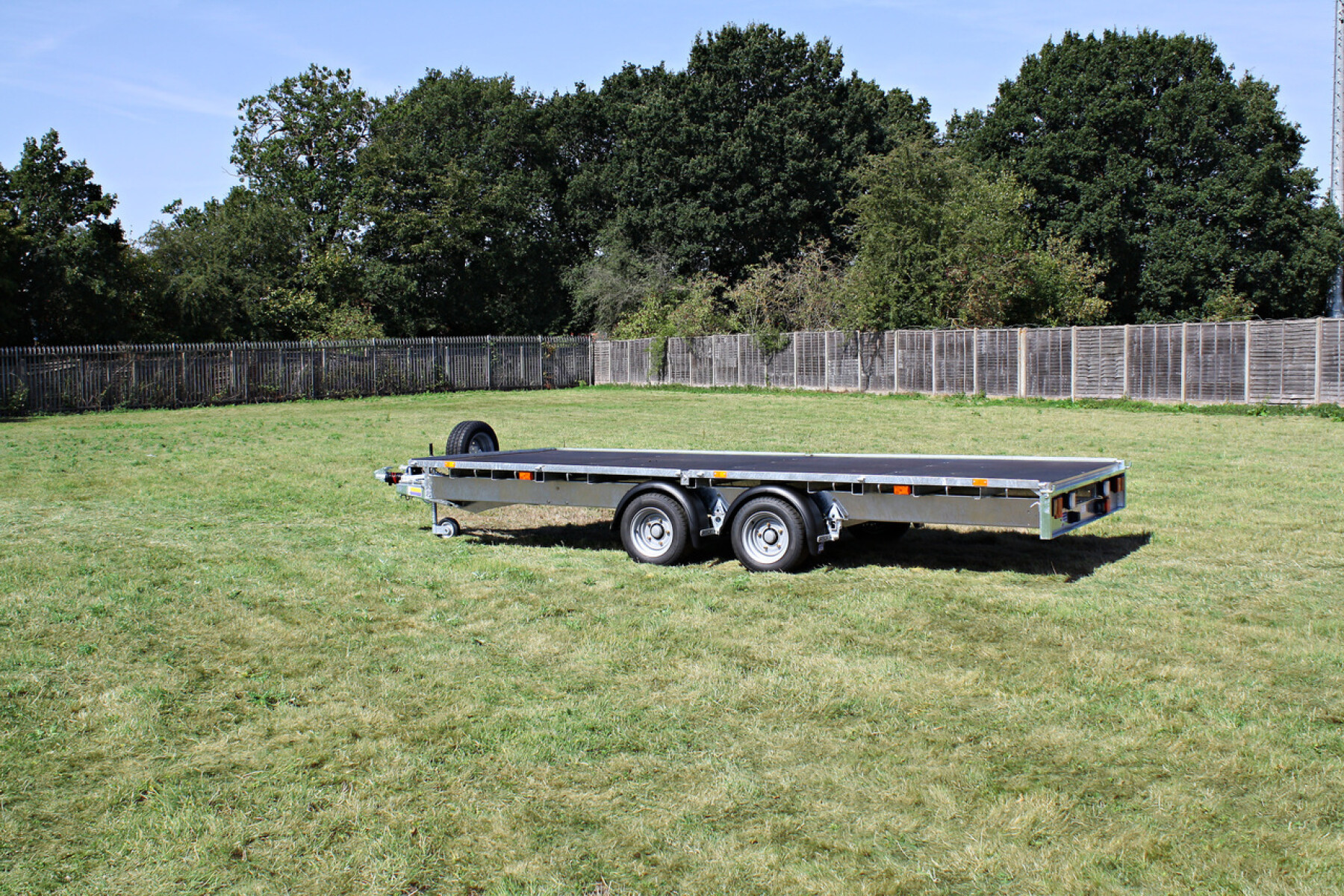

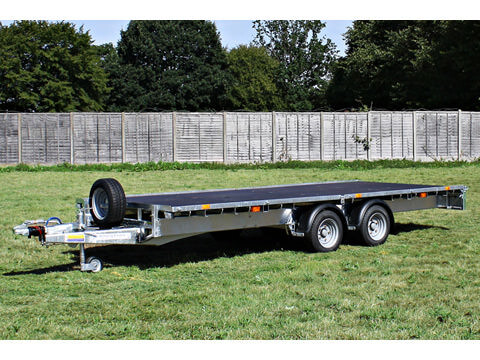

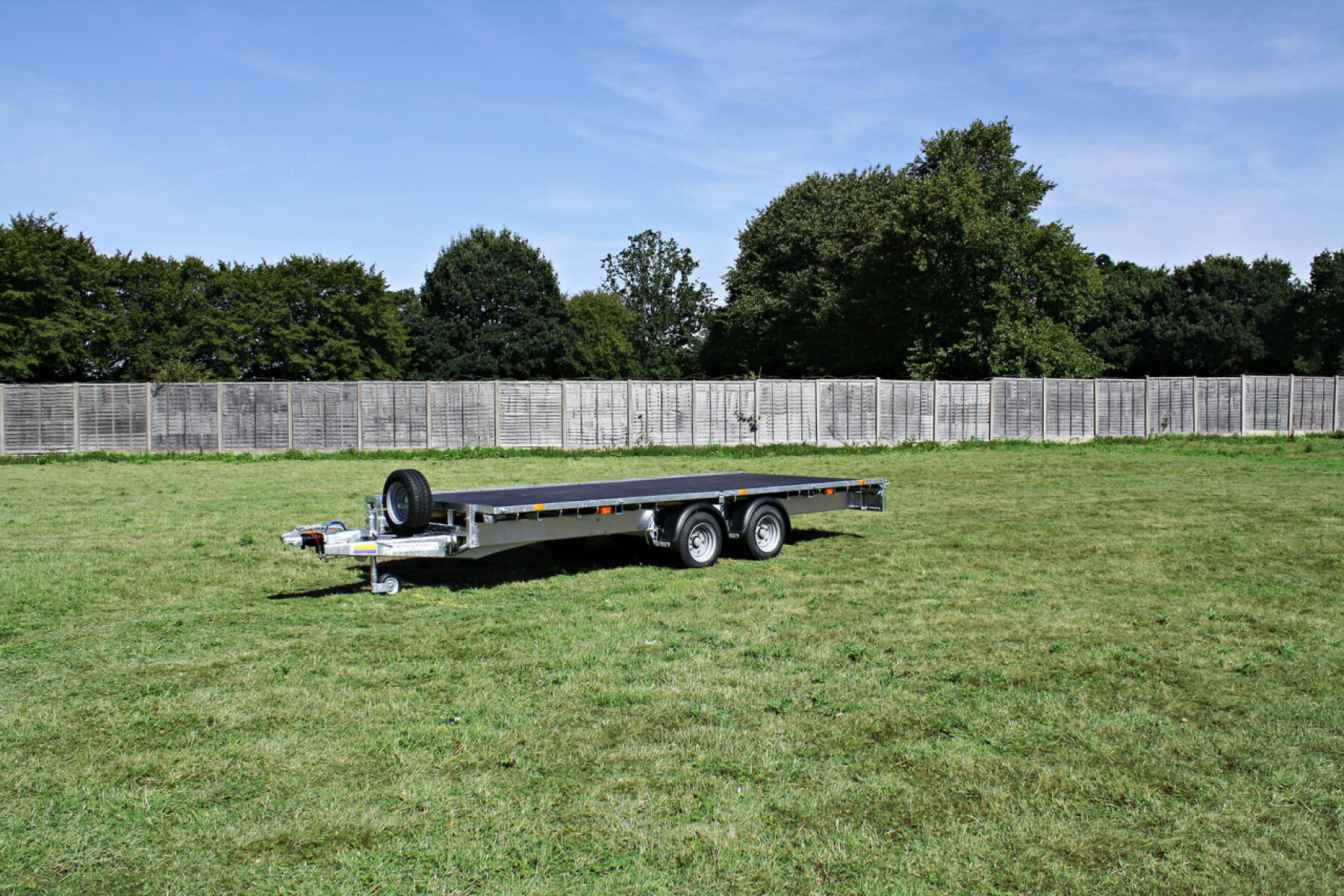

Ifor Williams LM166G Flat Bed Trailer
The Ifor Williams LM166G Flat Bed Trailer is a twin axle trailer designed for tradespeople, landscapers, and DIYers who need a reliable trailer for transporting construction materials, heavy equipment, agricultural machinery, and landscaping projects.
Optional Extras
Ifor Williams LM166G Flatbed Trailer
The Ifor Williams LM166G is part of the versatile LM Series, designed with a robust twin-axle configuration to carry heavier loads safely while maintaining excellent handling.
Ideal for transporting a wide variety of loads, the LM166G is commonly used for:
- Construction materials and equipment
- Agricultural machinery and vehicles
- General haulage and commercial transport
- Landscaping and bulk garden projects
- Light vehicle transport using optional rear ramps
With a maximum gross weight of 3500kg, this trailer provides substantial payload capacity while remaining easy to tow and highly durable.
- Full 13 (8) Pin EU lighting system
- Heavy-duty 12" wheels and tyres
- Twin-axle design for stability and durability
- Resin-coated plywood platform
- High payload capacity for heavier loads
- Spare wheel included as standard
- Factory delivery charge included in the price
📦 Optional Extras
- 🧱 Drop Side Kit
- 🧱 Extended Mesh Side Kit
- 🪵 Aluminium Floor Upgrade
- 🔗 Flush Fitted Tie Rings
- 🪜 Ladder Rack
- 🦿 Rear Support Prop Stands
- 🛻 Rear Loading Ramps / Skids
- 🔒 High Security Hitch Lock
- 🔐 High Security Wheel Clamp
✅ Price includes: Ifor Williams factory delivery to GT Towing Ltd.
💷 All prices include VAT.
🔍 View Model Comparison
| Model | Internal Length | Internal Width | Overall Length | Overall Width | Gross Weight | Unladen Weight | Payload | Axles |
|---|---|---|---|---|---|---|---|---|
| LM85G | 2.44m / 8' 0" | 1.52m / 5' 0" | 3.80m | 1.60m | 2700kg | 495kg | 2205kg | 2 |
| LM85HD | 2.44m / 8' 0" | 1.52m / 5' 0" | 3.80m | 1.60m | 3500kg | 525kg | 2975kg | 2 |
| LM105G | 3.01m / 9' 9" | 1.68m / 5' 5" | 4.35m | 1.75m | 2700kg | 575kg | 2125kg | 2 |
| LM105HD | 3.01m / 9' 9" | 1.68m / 5' 5" | 4.35m | 1.75m | 3500kg | 605kg | 2895kg | 2 |
| LM125G | 3.62m / 11' 9" | 1.68m / 5' 5" | 5.00m | 1.75m | 2700kg | 620kg | 2080kg | 2 |
| LM125HD | 3.62m / 11' 9" | 1.68m / 5' 5" | 5.00m | 1.75m | 3500kg | 650kg | 2050kg | 2 |
| LM126G | 3.62m / 11' 9" | 1.98m / 6' 5" | 5.00m | 2.10m | 3500kg | 675kg | 2825kg | 2 |
| LM146G | 4.23m / 13' 9" | 1.98m / 6' 5" | 5.60m | 2.10m | 3500kg | 735kg | 2765kg | 2 |
| LM146T | 4.23m / 13' 9" | 1.98m / 6' 5" | 5.60m | 2.10m | 3500kg | 845kg | 2655kg | 3 |
| LM166G | 4.77m / 15' 6" | 1.98m / 6' 5" | 6.20m | 2.10m | 3500kg | 735kg | 2705kg | 2 |
| LM166T | 4.77m / 15' 6" | 1.98m / 6' 5" | 6.20m | 2.10m | 3500kg | 905kg | 2595kg | 3 |
| LM186G | 5.47m / 17' 9" | 1.98m / 6' 5" | 6.85m | 2.10m | 3500kg | 855kg | 2645kg | 2 |
| LM186T | 5.47m / 17' 9" | 1.98m / 6' 5" | 6.85m | 2.10m | 3500kg | 965kg | 2535kg | 3 |
📸 Images shown are for illustration purposes only. Some items shown may be optional extras and are not included in the standard trailer price.
📐 Technical Specifications
4.77 m / 15' 8"
1.98 m / 6' 6"
6.20 m / 20' 4"
2.10 m / 6' 11"
3500 kg / 7,716 lbs
735 kg / 1,620 lbs
2705 kg / 5,964 lbs
195/60R12C / 12"
