Ifor Williams LM85HD Flat Bed Trailer
- 🛞 Spare Wheel
- ⚙️ Jockey Wheel
- 🪵 Heavy Duty Resin-Coated Ply-Wood Platform
- 💡 Full 13 (8) Pin EU Lighting System
Optional Extras

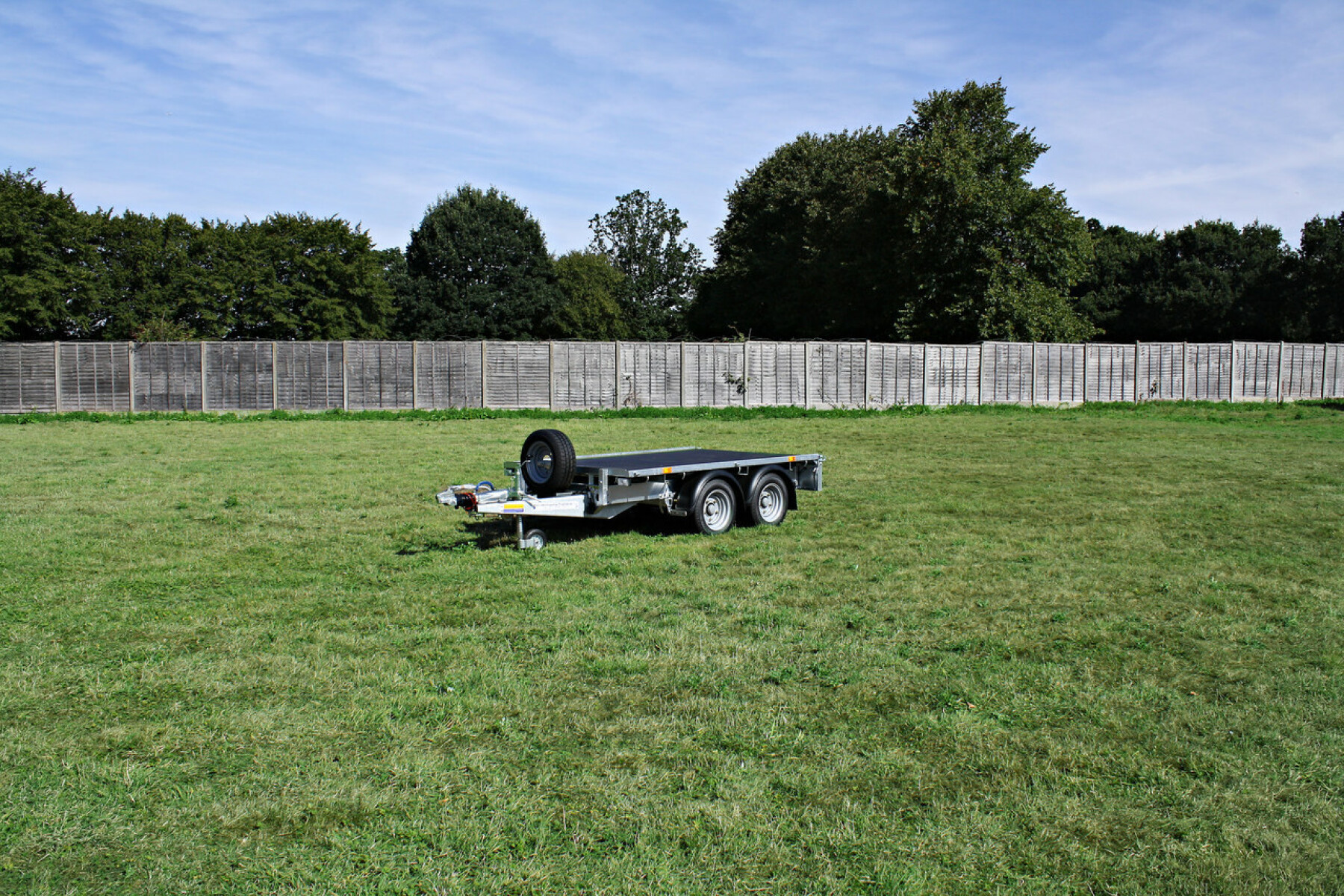

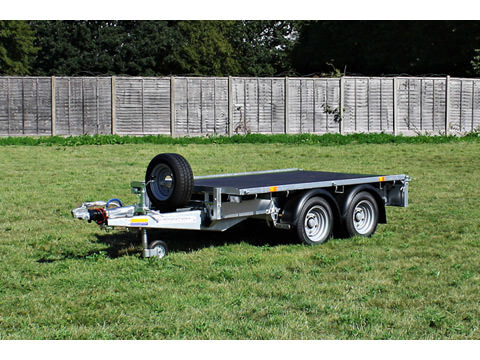

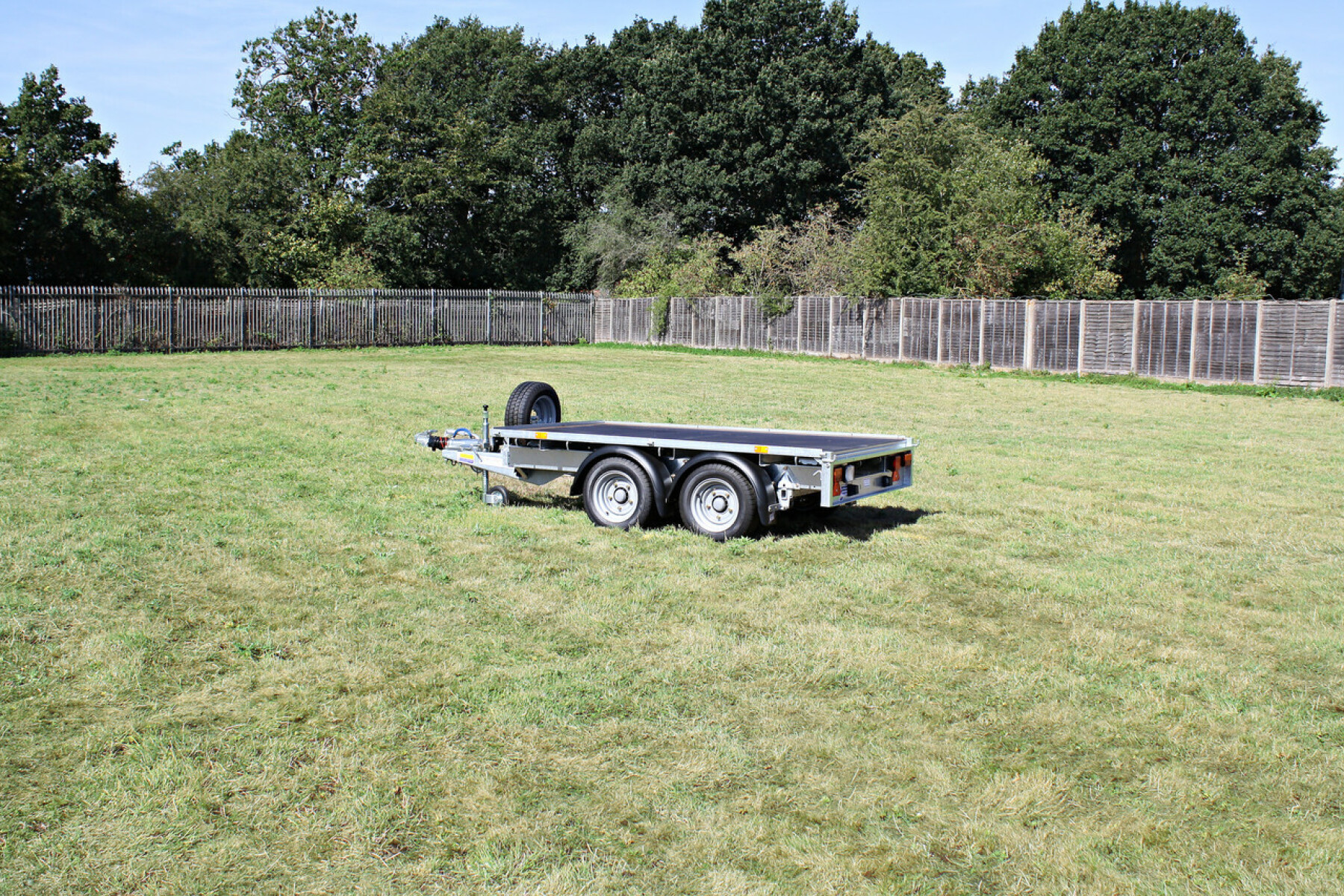

Ifor Williams LM85HD Flat Bed Trailer
All Ifor Williams Flatbed models are built around a welded steel, galvanised chassis fitted with bolt-on tapered drawbars and the Ifor Williams beam axle with leaf sprung suspension.
The LM85HD is a versatile, professional-grade flatbed trailer, popular among the commercial and builders trade. Its drop sides allow side and rear loading, while optional pull-out rear loading ramps make it possible to transport heavy machinery such as diggers and dump trucks. Larger models can even carry vehicles, making the LM range the ultimate in flexibility.
The LM85HD is supplied with twin axles, with tri-axle options available on the LM6 series models over 12ft in length.
- 🛞 Spare Wheel
- ⚙️ Jockey Wheel
- 🪵 Heavy Duty Resin-Coated Ply-Wood Platform
- 💡 Full 13 (8) Pin EU Lighting System
- ✅ Price includes factory delivery charge
🔽 Click to Show Optional Extras
- ⬇️ Drop Side Kit
- 🧱 Extended Mesh Side Kit
- 🪵 Aluminium Floor Upgrade
- 🔗 Flush Fitted Tie Rings
- 🪜 Ladder Rack
- 🦿 Rear Support Prop Stands
- 🛻 Rear Loading Ramps / Skids
- 🔒 High Security Hitch Lock
- 🛡️ High Security Wheel Clamp
🔍 View Model Comparison
| Model | Internal Length | Internal Width | Overall Length | Overall Width | Gross Weight | Unladen Weight | Payload | Axles |
|---|---|---|---|---|---|---|---|---|
| LM85G | 2.44m / 8' 0" | 1.52m / 5' 0" | 3.80m | 1.60m | 2700kg | 495kg | 2205kg | 2 |
| LM85HD | 2.44m / 8' 0" | 1.52m / 5' 0" | 3.80m | 1.60m | 3500kg | 525kg | 2975kg | 2 |
| LM105G | 3.01m / 9' 9" | 1.68m / 5' 5" | 4.35m | 1.75m | 2700kg | 575kg | 2125kg | 2 |
| LM105HD | 3.01m / 9' 9" | 1.68m / 5' 5" | 4.35m | 1.75m | 3500kg | 605kg | 2895kg | 2 |
| LM125G | 3.62m / 11' 9" | 1.68m / 5' 5" | 5.00m | 1.75m | 2700kg | 620kg | 2080kg | 2 |
| LM125HD | 3.62m / 11' 9" | 1.68m / 5' 5" | 5.00m | 1.75m | 3500kg | 650kg | 2050kg | 2 |
| LM126G | 3.62m / 11' 9" | 1.98m / 6' 5" | 5.00m | 2.10m | 3500kg | 675kg | 2825kg | 2 |
| LM146G | 4.23m / 13' 9" | 1.98m / 6' 5" | 5.60m | 2.10m | 3500kg | 735kg | 2765kg | 2 |
| LM146T | 4.23m / 13' 9" | 1.98m / 6' 5" | 5.60m | 2.10m | 3500kg | 845kg | 2655kg | 3 |
| LM166G | 4.77m / 15' 6" | 1.98m / 6' 5" | 6.20m | 2.10m | 3500kg | 735kg | 2705kg | 2 |
| LM166T | 4.77m / 15' 6" | 1.98m / 6' 5" | 6.20m | 2.10m | 3500kg | 905kg | 2595kg | 3 |
| LM186G | 5.47m / 17' 9" | 1.98m / 6' 5" | 6.85m | 2.10m | 3500kg | 855kg | 2645kg | 2 |
| LM186T | 5.47m / 17' 9" | 1.98m / 6' 5" | 6.85m | 2.10m | 3500kg | 965kg | 2535kg | 3 |
📸 Images shown are for illustration purposes only. Some items shown may be optional extras and are not included in the standard trailer price.
📐 Technical Specifications
2.44 m / 8' 0"
1.52 m / 5' 0"
3.80 m / 12' 6"
1.60 m / 5' 3"
3500 kg / 7,716 lbs
525 kg / 1,157 lbs
2975 kg / 6,559 lbs
195/60R12C / 12"
