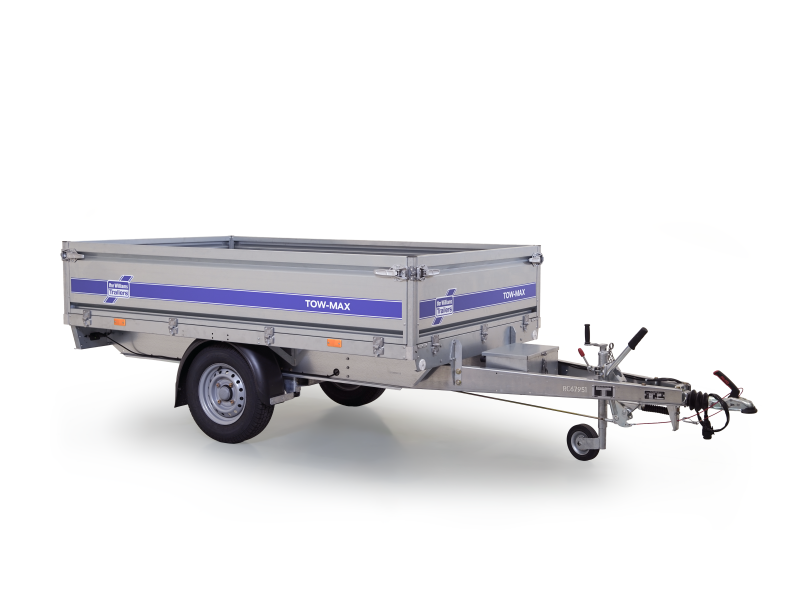

The Ifor Williams TM101-2514 Tow-Max is the perfect step up for users who want the light, easy-towing nature of the Tow-Max family but with a higher gross capacity. With a 1000kg gross weight and a low unladen mass of 338kg, it offers an appealing balance of payload and manoeuvrability for small vans, pickups and family cars.
Featuring a practical 2.50m x 1.47m bed, the TM101-2514 handles everyday loads — from garden machinery and building materials to site kit and bulky domestic items. Its extra-long drawbar and Paraflex leaf spring suspension deliver stable towing characteristics and predictable handling even when loaded.
Built on a fully galvanised chassis with modular bolted construction and Ifor Williams-designed axles, the TM101-2514 is engineered for long service life with low maintenance. If you need a reliable, light-weight trailer with increased carrying capacity, this model is a smart, economical choice.
Choose the TM101-2514 for a no-fuss, high-value trailer that makes light work of everyday transport tasks while staying easy to tow and manoeuvre.
🔧 Key Features (Standard):
🔩 Galvanised steel chassis & extra-long drawbar
🌿 Paraflex leaf spring suspension (Ifor Williams design)
📸 Images shown are for illustration purposes only. Some items shown may be optional extras and are not included in the standard trailer price.
✅ Price includes: Ifor Williams factory delivery to GT Towing Ltd. 💷 All prices include VAT.
💡 Did you know? The TM101-2514 keeps towing easy for small vehicles while offering a substantial uplift in payload versus the unbraked 750kg model — a great choice if you need extra carrying capacity without stepping up to larger vans.
🔍 View Model Comparison
Model
Internal Length
Internal Width
Overall Length
Overall Width
Gross Weight
Unladen Weight
Payload
Axles
TM071-2514
2.50m / 8'2"
1.47m / 4'10"
4.03m / 13'3"
1.60m / 5'3"
750kg
298kg
452kg
1
TM101-2514
2.50m / 8'2"
1.47m / 4'10"
4.08m / 13'5"
1.60m / 5'3"
1000kg
338kg
662kg
1
TM141-2514
2.50m / 8'2"
1.47m / 4'10"
4.08m / 13'5"
1.60m / 5'3"
1400kg
346kg
1054kg
1
TM162-2514
2.50m / 8'2"
1.47m / 4'10"
4.08m / 13'5"
1.60m / 5'3"
1600kg
423kg
1177kg
1
TM202-2514
2.50m / 8'2"
1.47m / 4'10"
4.08m / 13'5"
1.60m / 5'3"
2000kg
423kg
1577kg
1
TM162-2817
2.80m / 9'2"
1.75m / 5'9"
4.38m / 14'4"
1.88m / 6'2"
1600kg
463kg
1137kg
1
TM202-2817
2.80m / 9'2"
1.75m / 5'9"
4.38m / 14'4"
1.88m / 6'2"
2000kg
463kg
1537kg
1
TM162-3617
3.60m / 11'10"
1.75m / 5'9"
5.18m / 17'0"
1.88m / 6'2"
1600kg
513kg
1087kg
1
TM202-3617
3.60m / 11'10"
1.75m / 5'9"
5.18m / 17'0"
1.88m / 6'2"
2000kg
513kg
1487kg
1
TM272-2817
2.80m / 9'2"
1.75m / 5'9"
4.38m / 14'4"
1.88m / 6'2"
2700kg
486kg
2214kg
2
TM272-3617
3.60m / 11'10"
1.75m / 5'9"
5.18m / 17'0"
1.88m / 6'2"
2700kg
536kg
2164kg
2
All specifications are manufacturer published values and are for guidance only. Always check the vehicle/trailer paperwork for exact figures.
Tech Spec
📐 Technical Specifications
Internal Length: 2.50 m / 8' 2"
Internal Width: 1.47 m / 4' 10"
Overall Length: 4.08 m / 13' 5"
Overall Width: 1.60 m / 5' 3"
Gross Weight: 1000 kg / 2,205 lbs
Unladen Weight: 338 kg / 745 lbs
Tyres: 145/70R13
