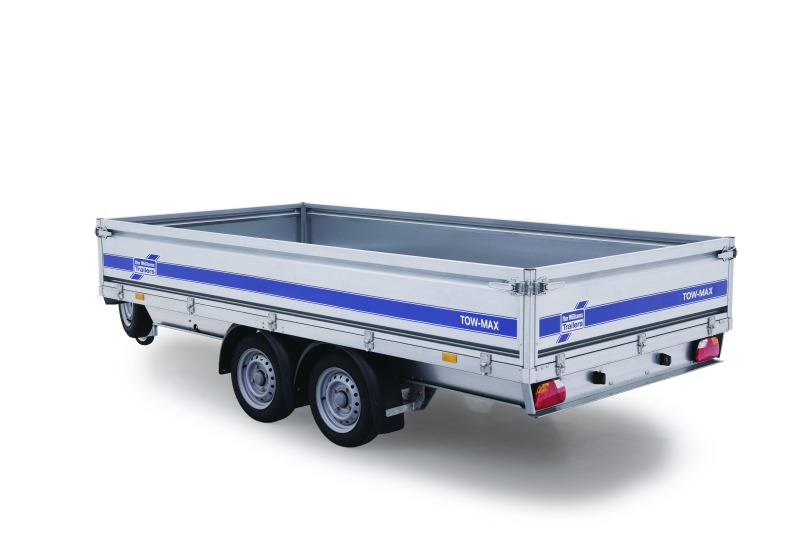

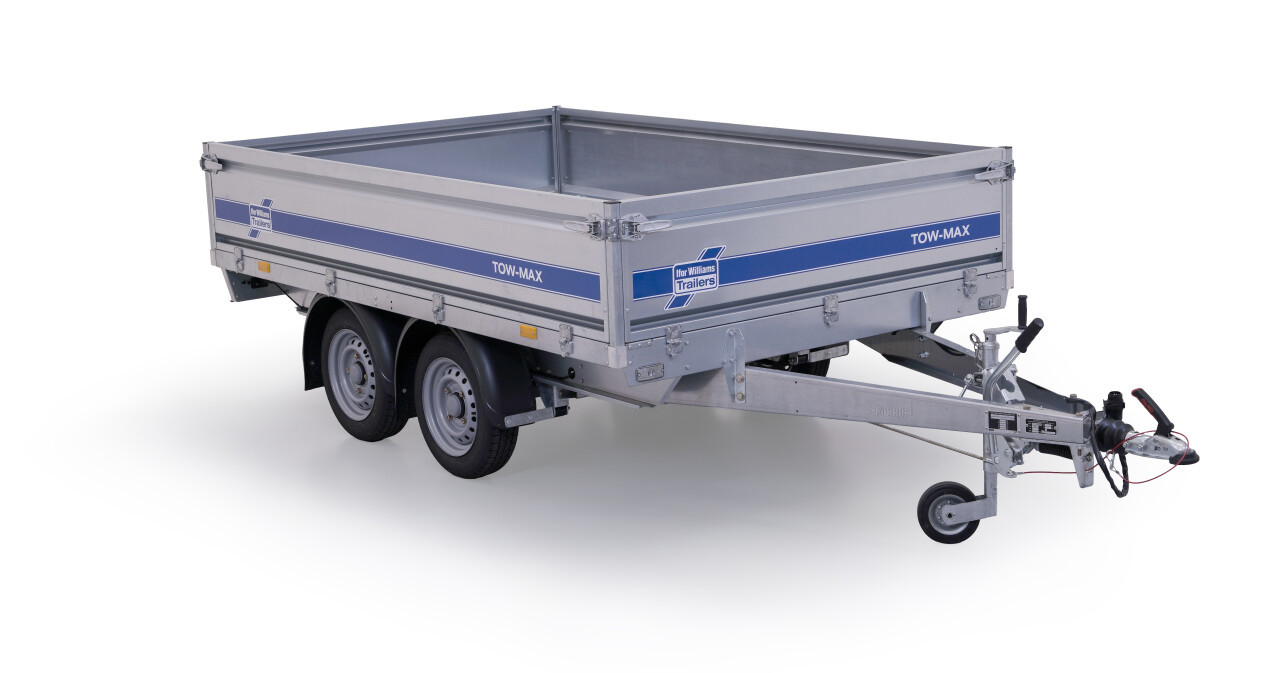

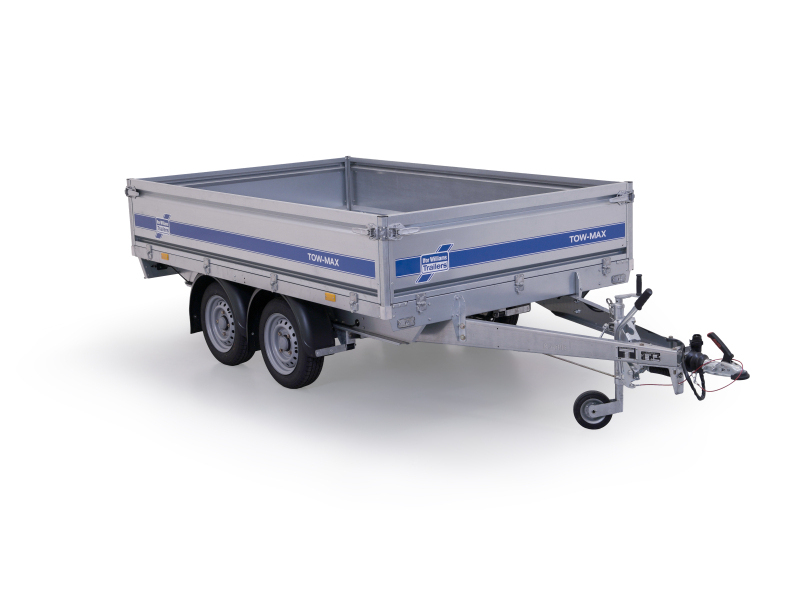

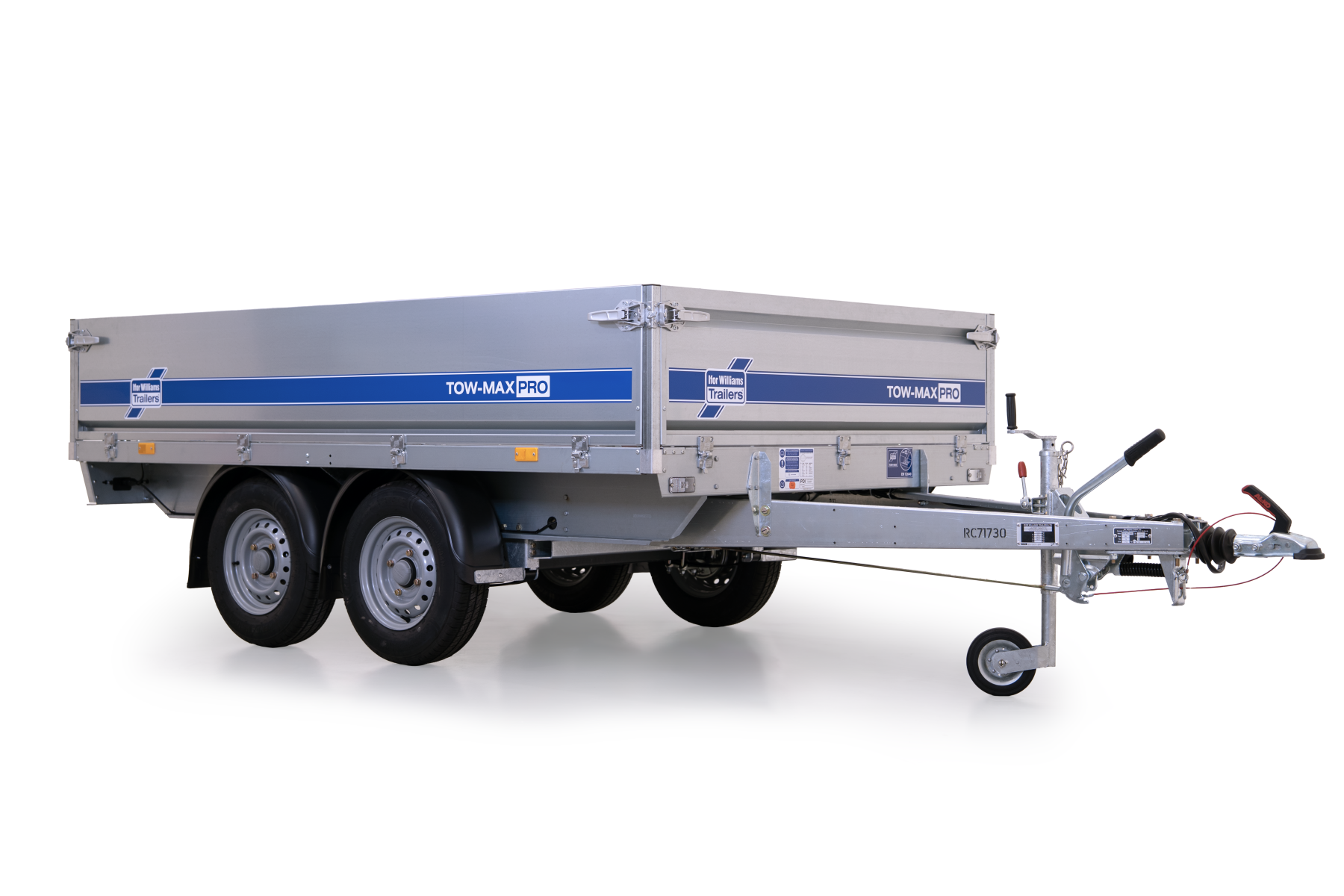

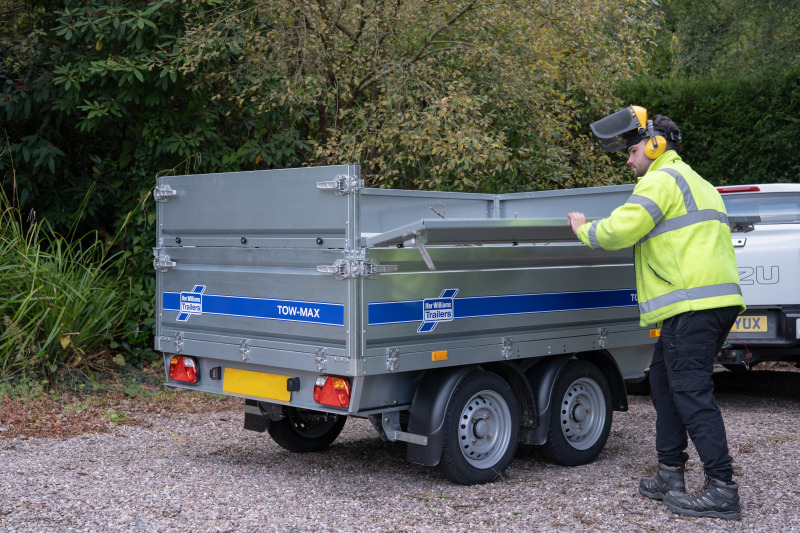

The Ifor Williams TM162-2817 Tow-Max is a rugged twin-axle flatbed trailer designed for those who need more carrying capacity without compromising towing stability. With a 1600kg gross weight and a fully galvanised steel chassis, it combines durability, longevity, and reliability for both commercial and domestic use.
Its 2.80m × 1.75m load area comfortably accommodates bulky items such as machinery, building materials, or garden equipment. The twin-axle Paraflex suspension system ensures smooth towing and improved stability, even under maximum load, while the extended drawbar gives superior reversing control and reduced sway.

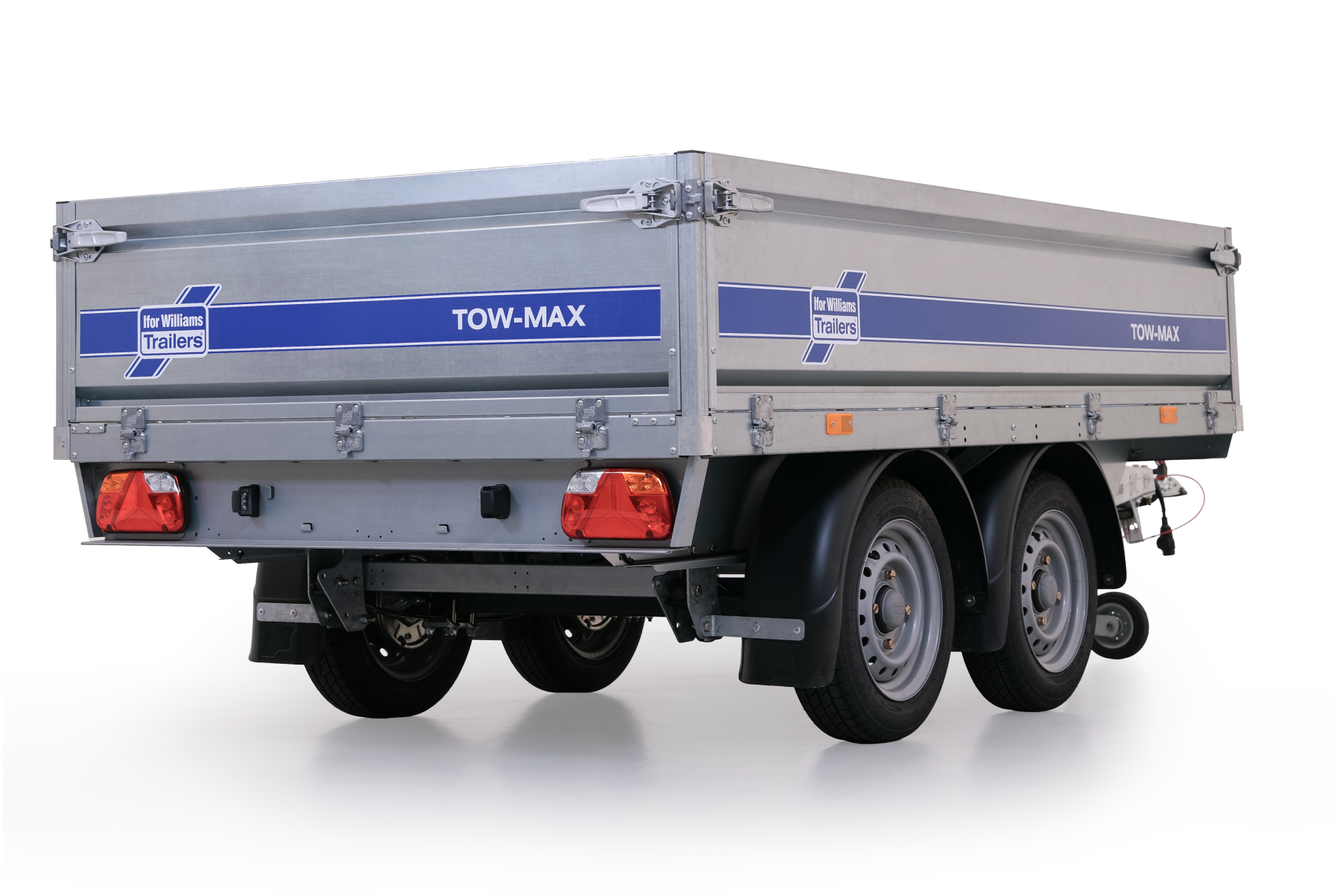

With a tough 15mm resin-bonded plywood floor and strong 450mm galvanised steel dropsides, the TM162-2817 is ready to handle demanding tasks. Its modular construction makes maintenance straightforward, and it comes supplied with a spare wheel and full LED lighting as standard.
This trailer is perfect for landscapers, small contractors, or homeowners looking to transport heavier loads safely and efficiently.
🔧 Key Features (Standard):
🔩 Galvanised steel chassis & extra-long drawbar
🌿 Paraflex leaf spring suspension (Ifor Williams design)
🪵 Propstands – stabilise trailer when loading with ramps.
🔒 Security Options – hitch locks, wheel clamps, and light guards for safety.
📸 Images are for illustration only. Optional extras shown are not included in the standard trailer price.
✅ Price includes: Ifor Williams factory delivery to GT Towing Ltd. 💷 All prices include VAT.
💡 Did you know? The TM162-2817’s twin-axle design gives a more stable and smoother ride than single-axle Tow-Max trailers, making it perfect for heavier loads.
🔍 View Model Comparison
Model
Tyres
Gross Weight
Unladen Weight
Internal Length
Internal Width
Overall Length
Overall Width
TM071-2514
145/70R13
750kg
298kg
2.50m / 8'2"
1.47m / 4'10"
4.03m / 13'3"
1.60m / 5'3"
TM101-2514
145/70R13
1000kg
338kg
2.50m / 8'2"
1.47m / 4'10"
4.08m / 13'5"
1.60m / 5'3"
TM141-2514
165R13
1400kg
346kg
2.50m / 8'2"
1.47m / 4'10"
4.08m / 13'5"
1.60m / 5'3"
TM162-2514
145/70R13
1600kg
423kg
2.50m / 8'2"
1.47m / 4'10"
4.08m / 13'5"
1.60m / 5'3"
TM202-2514
145/70R13
2000kg
423kg
2.50m / 8'2"
1.47m / 4'10"
4.08m / 13'5"
1.60m / 5'3"
TM162-2817
145/70R13
1600kg
463kg
2.80m / 9'2"
1.75m / 5'9"
4.38m / 14'4"
1.88m / 6'2"
TM202-2817
145/70R13
2000kg
463kg
2.80m / 9'2"
1.75m / 5'9"
4.38m / 14'4"
1.88m / 6'2"
TM162-3617
145/70R13
1600kg
513kg
3.60m / 11'10"
1.75m / 5'9"
5.18m / 17'0"
1.88m / 6'2"
TM202-3617
145/70R13
2000kg
513kg
3.60m / 11'10"
1.75m / 5'9"
5.18m / 17'0"
1.88m / 6'2"
TM272-2817
165R13
2700kg
486kg
2.80m / 9'2"
1.75m / 5'9"
4.38m / 14'4"
1.88m / 6'2"
TM272-3617
165R13
2700kg
536kg
3.60m / 11'10"
1.75m / 5'9"
5.18m / 17'0"
1.88m / 6'2"
All specifications are manufacturer published values and are for guidance only. Always check the vehicle/trailer paperwork for exact figures.
Tech Spec
📐 Technical Specifications
Internal Length: 2.80 m / 9' 2"
Internal Width: 1.75 m / 5' 9"
Overall Length: 4.38 m / 14' 4"
Overall Width: 1.88 m / 6' 2"
Gross Weight: 1600 kg / 3,527 lbs
Unladen Weight: 463 kg / 1,019 lbs
Tyres: 145/70R13
