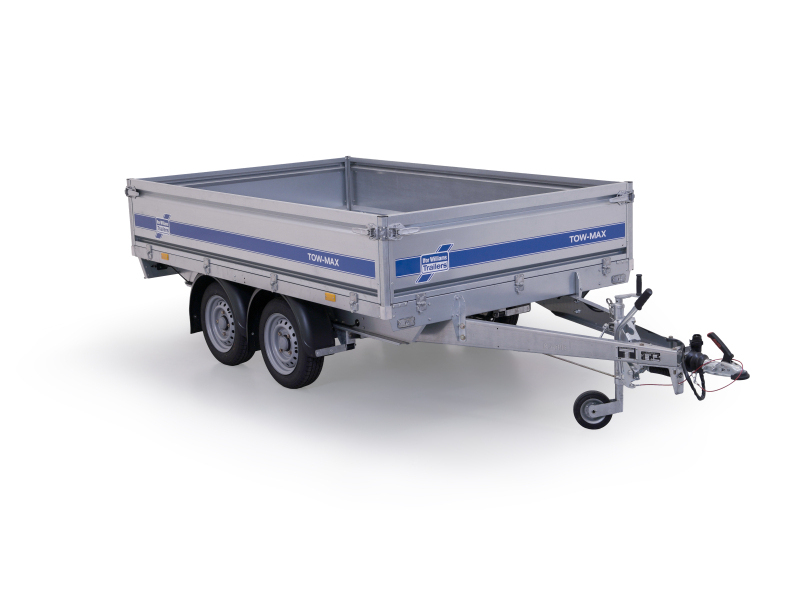

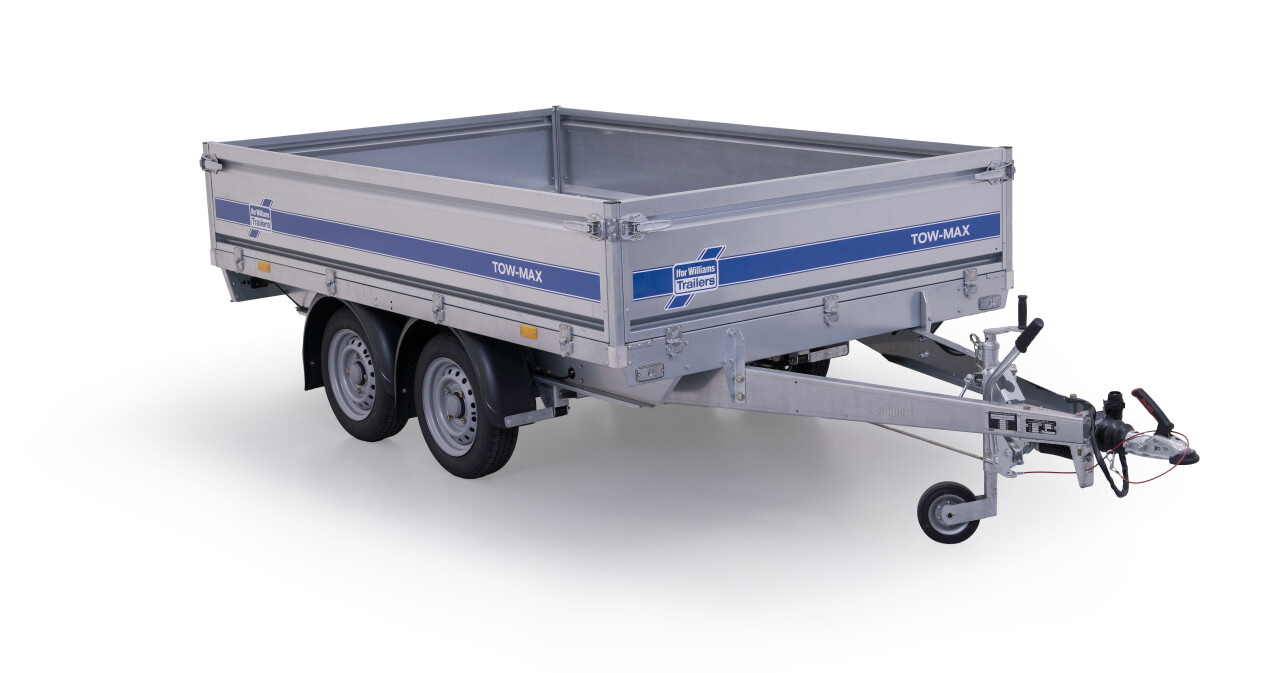

The Ifor Williams TM162-3617 Tow-Max is a robust twin-axle trailer engineered for maximum payload and stability. With a 1600kg gross weight and a practical 513kg unladen mass, this model handles heavy loads with confidence while remaining easy to tow.
Its expansive 3.60m x 1.75m bed offers ample space for landscaping equipment, machinery, building materials, or bulky domestic loads. The extended drawbar and signature Paraflex leaf spring suspension ensure a smooth, stable ride, even when fully loaded.
Built on a galvanised steel chassis with modular bolted construction and Ifor Williams-designed axles, the TM162-3617 provides long-lasting reliability and minimal maintenance. This trailer is ideal for users needing extra cargo space and stability without sacrificing manoeuvrability.
Choose the TM162-3617 for a versatile, high-capacity trailer that combines practicality, strength, and towing peace of mind.
🔧 Key Features (Standard):
🔩 Galvanised steel chassis & extra-long drawbar
🌿 Paraflex leaf spring suspension (Ifor Williams design)
⚓ Winch Kit (manual) – 680kg max in-line pull, ideal for loading compact machinery.
🪵 Propstands – stabilise the trailer when loading with ramps or handling heavy equipment.
🔒 Security Options – hitch locks, wheel clamps, and rear light guards for load protection.
📸 Images are for illustration only. Optional extras shown are not included in the standard trailer price.
✅ Price includes: Ifor Williams factory delivery to GT Towing Ltd. 💷 All prices include VAT.
💡 Did you know? The TM162-3617 is a twin-axle Tow-Max trailer with a 3.6m bed, ideal for users needing a combination of extra payload and towing stability.
🔍 View Model Comparison
Model
Tyres
Gross Weight
Unladen Weight
Internal Length
Internal Width
Overall Length
Overall Width
TM071-2514
145/70R13
750kg
298kg
2.50m / 8'2"
1.47m / 4'10"
4.03m / 13'3"
1.60m / 5'3"
TM101-2514
145/70R13
1000kg
338kg
2.50m / 8'2"
1.47m / 4'10"
4.08m / 13'5"
1.60m / 5'3"
TM141-2514
165R13
1400kg
346kg
2.50m / 8'2"
1.47m / 4'10"
4.08m / 13'5"
1.60m / 5'3"
TM162-2514
145/70R13
1600kg
423kg
2.50m / 8'2"
1.47m / 4'10"
4.08m / 13'5"
1.60m / 5'3"
TM202-2514
145/70R13
2000kg
423kg
2.50m / 8'2"
1.47m / 4'10"
4.08m / 13'5"
1.60m / 5'3"
TM162-2817
145/70R13
1600kg
463kg
2.80m / 9'2"
1.75m / 5'9"
4.38m / 14'4"
1.88m / 6'2"
TM202-2817
145/70R13
2000kg
463kg
2.80m / 9'2"
1.75m / 5'9"
4.38m / 14'4"
1.88m / 6'2"
TM162-3617
145/70R13
1600kg
513kg
3.60m / 11'10"
1.75m / 5'9"
5.18m / 17'0"
1.88m / 6'2"
TM202-3617
145/70R13
2000kg
513kg
3.60m / 11'10"
1.75m / 5'9"
5.18m / 17'0"
1.88m / 6'2"
TM272-2817
165R13
2700kg
486kg
2.80m / 9'2"
1.75m / 5'9"
4.38m / 14'4"
1.88m / 6'2"
TM272-3617
165R13
2700kg
536kg
3.60m / 11'10"
1.75m / 5'9"
5.18m / 17'0"
1.88m / 6'2"
All specifications are manufacturer published values and are for guidance only. Always check the vehicle/trailer paperwork for exact figures.
Tech Spec
📐 Technical Specifications
Internal Length: 3.60 m / 11' 10"
Internal Width: 1.75 m / 5' 9"
Overall Length: 5.18 m / 17' 0"
Overall Width: 1.88 m / 6' 2"
Gross Weight: 1600 kg / 3,527 lbs
Unladen Weight: 513 kg / 1,131 lbs
Tyres: 145/70R13
