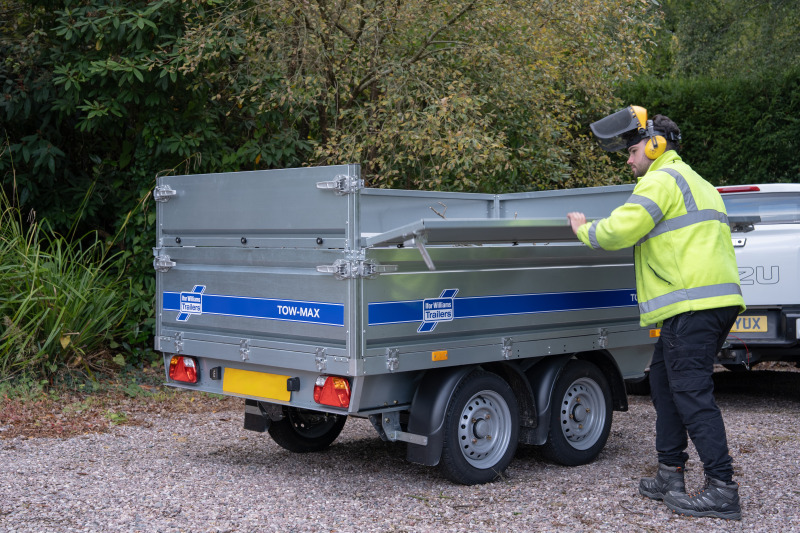

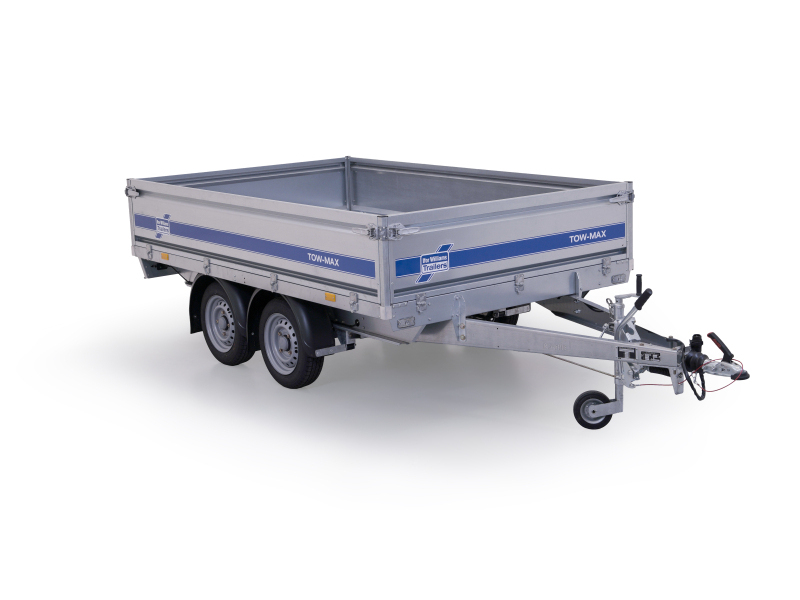

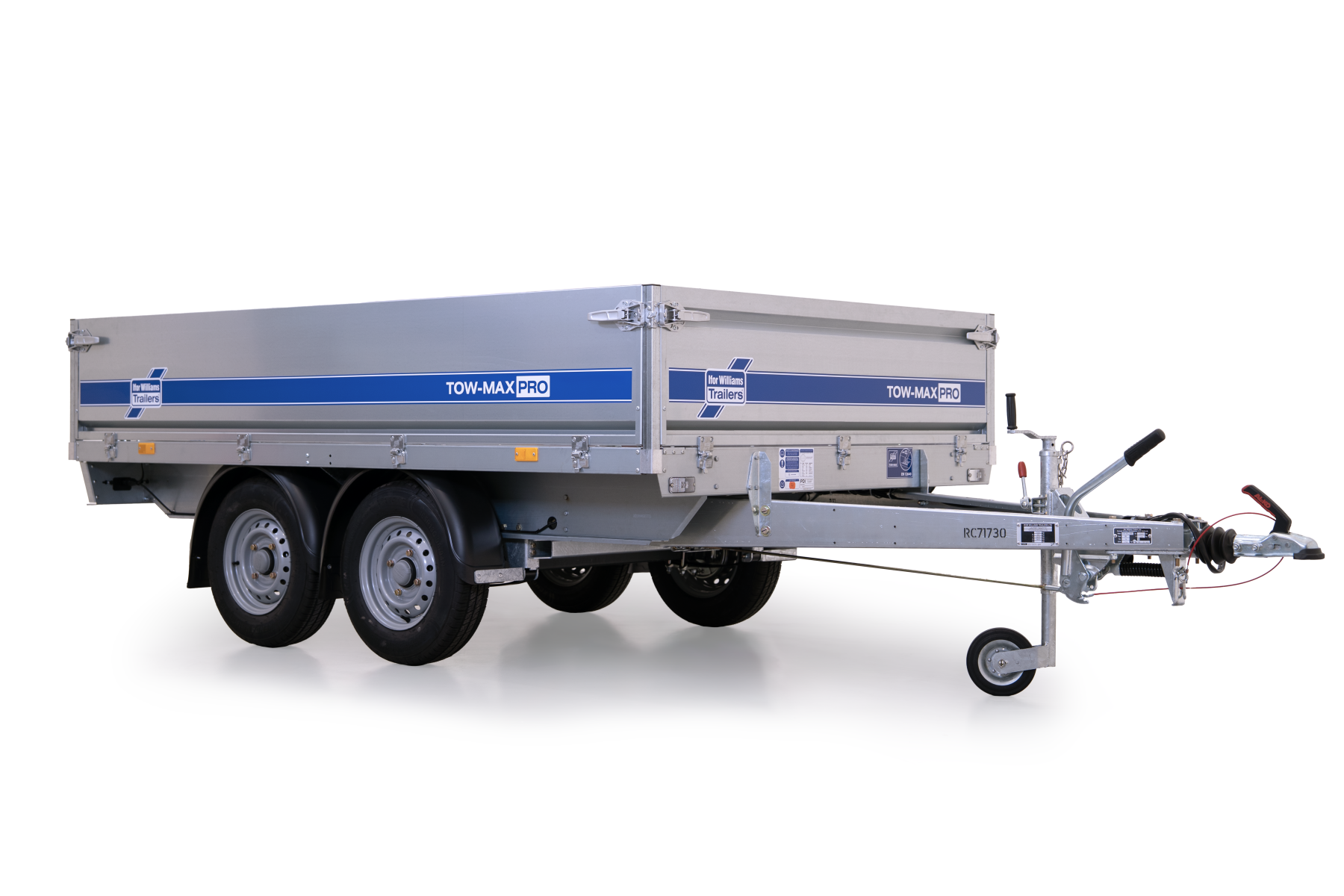

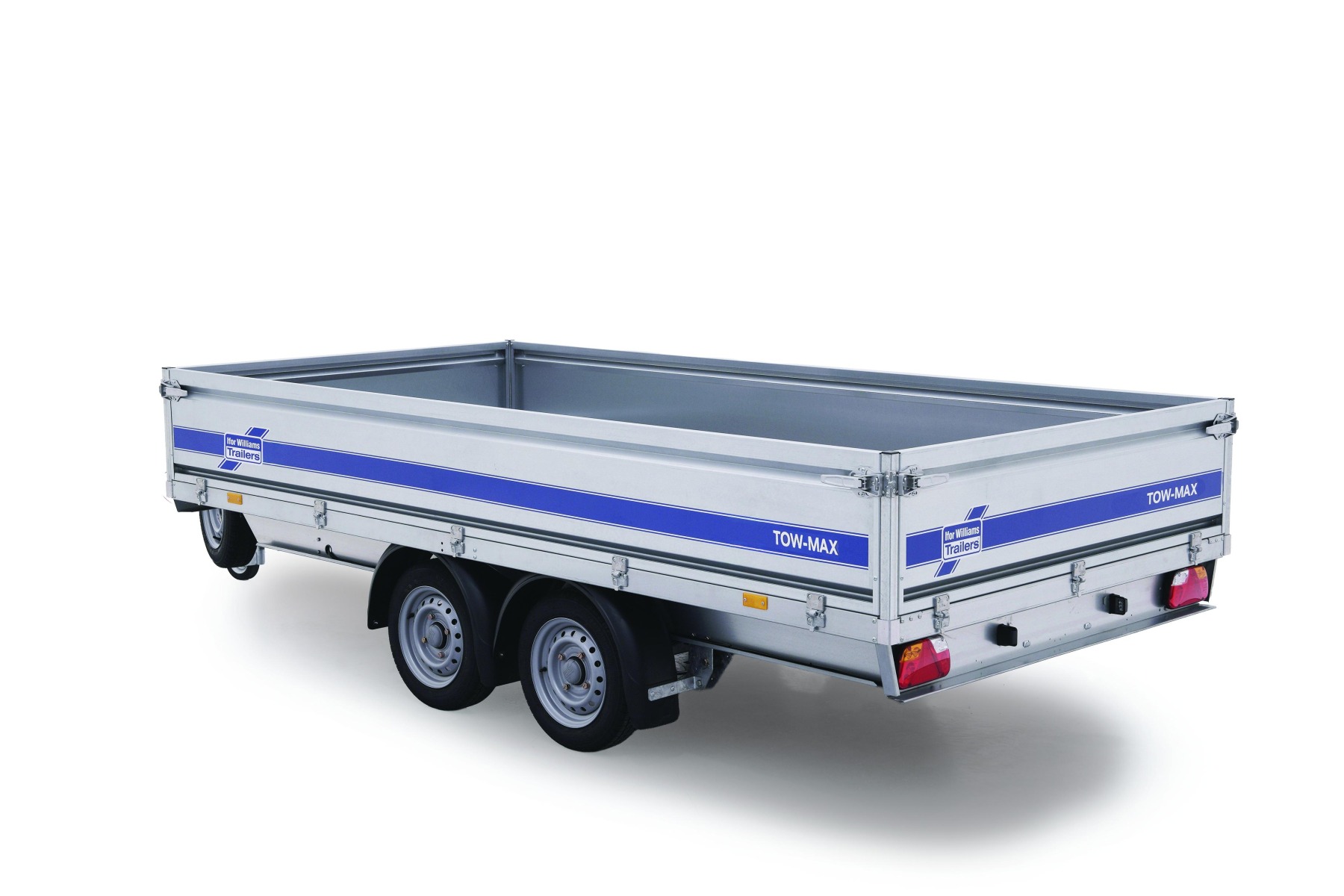

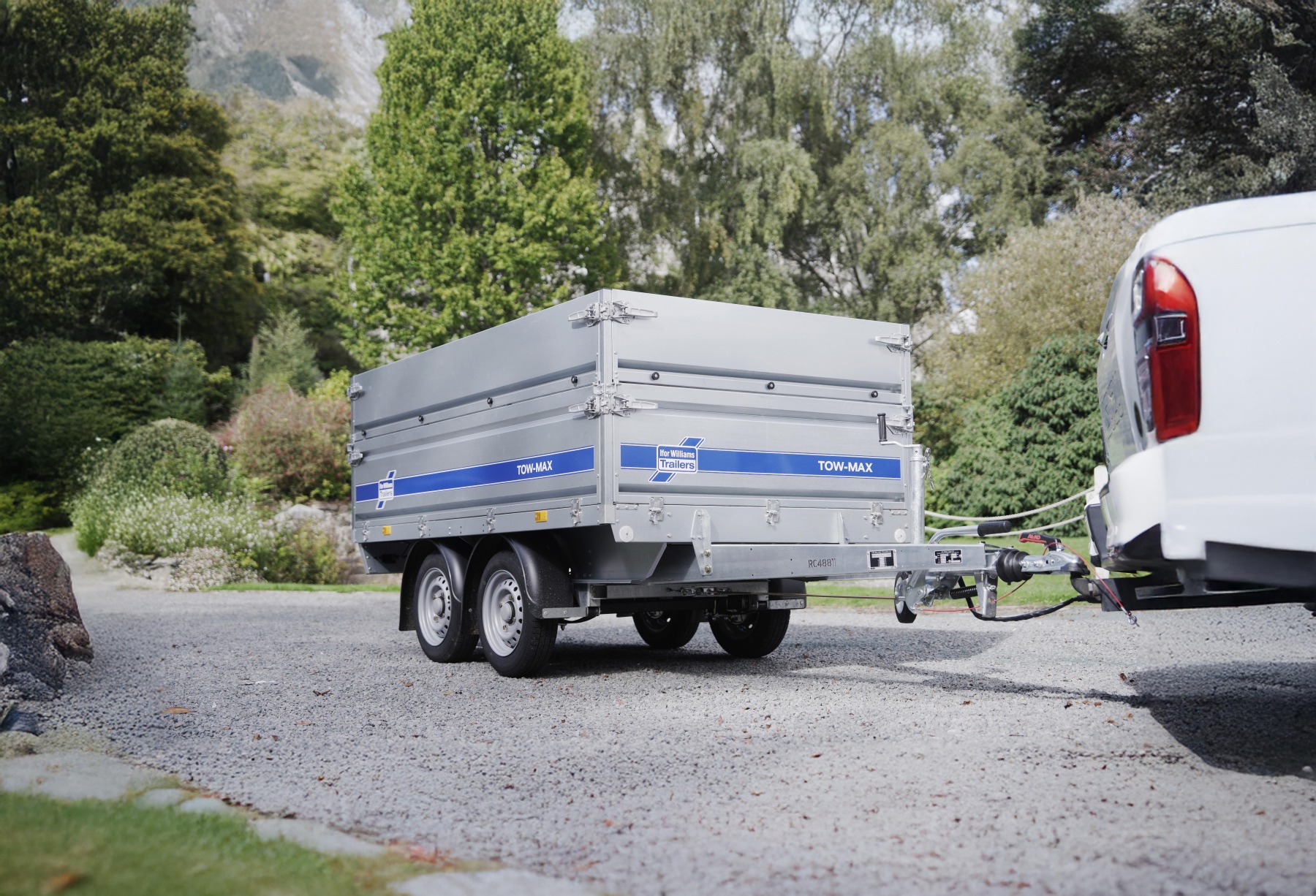

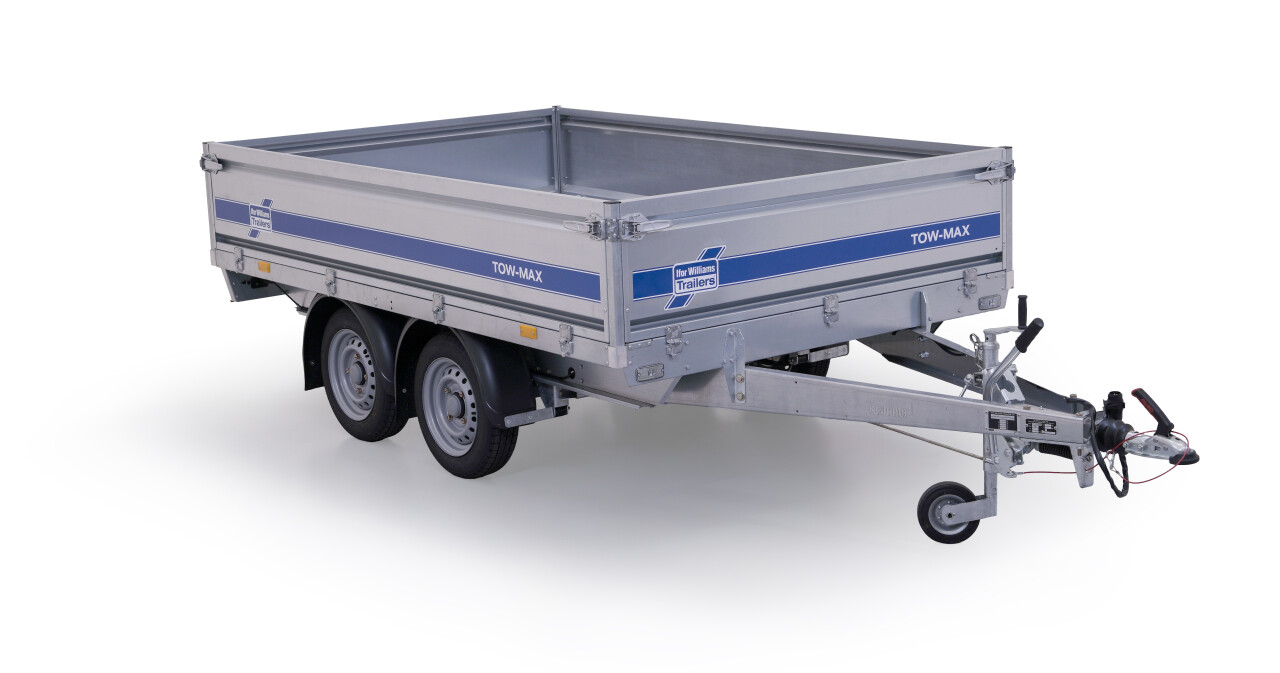

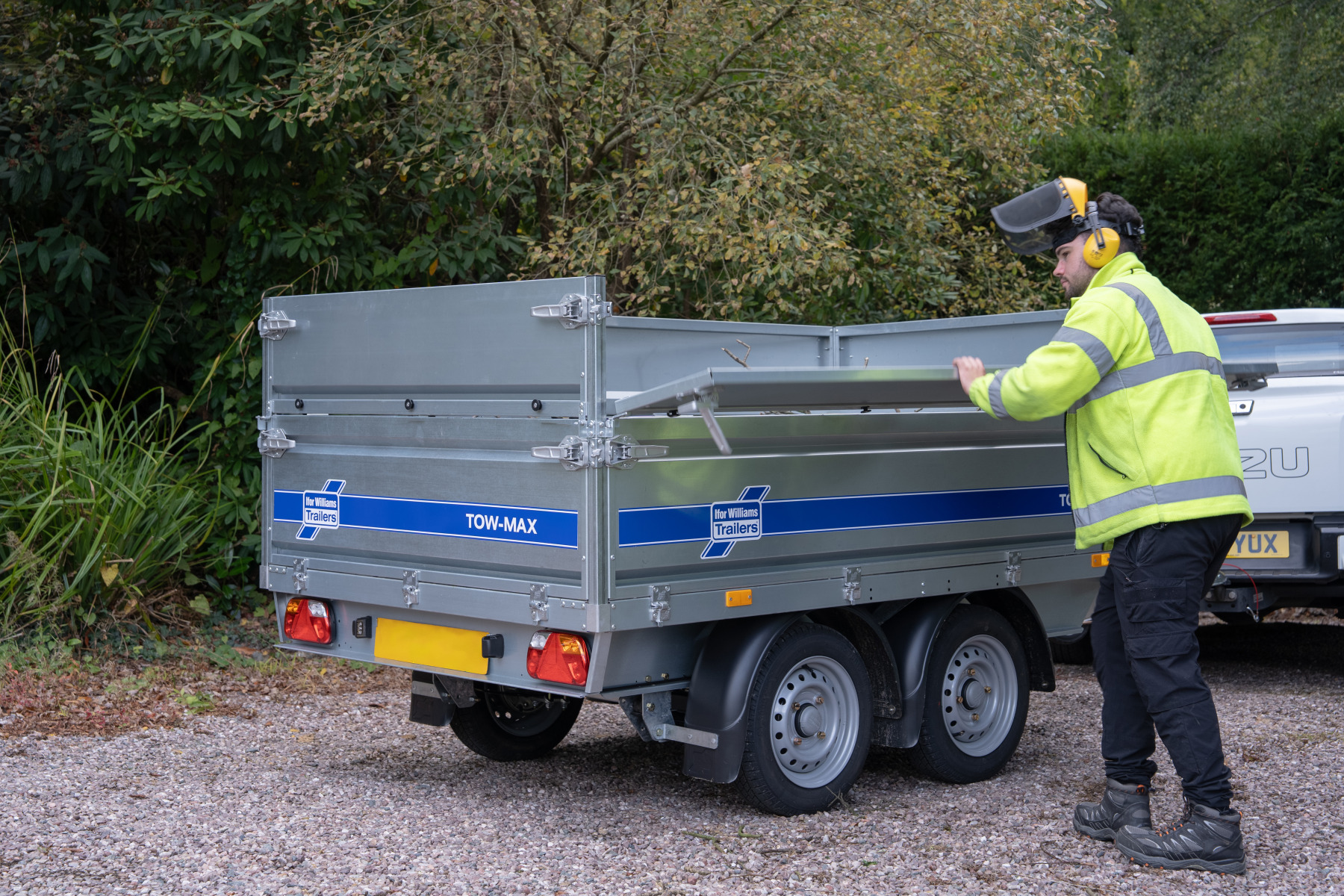

The Ifor Williams TM202-2514 Tow-Max is a robust twin-axle braked trailer, designed to carry heavier loads with ease. With a 2000kg gross weight and an unladen weight of 423kg, it provides exceptional payload capacity while remaining easy to tow for larger family vehicles, vans, or pickups.
Its practical 2.50m x 1.47m flatbed makes it perfect for landscaping materials, machinery, tools, and other heavy equipment. The dual-axle setup combined with Paraflex leaf spring suspension ensures smooth and stable towing, even at full capacity.
Built on a galvanised steel chassis with modular bolted construction and Ifor Williams-designed axles, the TM202-2514 promises long-lasting reliability and low maintenance. This trailer is ideal for those who need extra carrying capacity without compromising on towing performance.
Choose the TM202-2514 for a versatile twin-axle trailer that combines strength, stability, and practicality for demanding loads.
🔧 Key Features (Standard):
🔩 Galvanised steel chassis & extra-long drawbar
🌿 Paraflex leaf spring suspension (Ifor Williams design)
🔗 Four flush-mounted lashing points (five on 3.6m models)

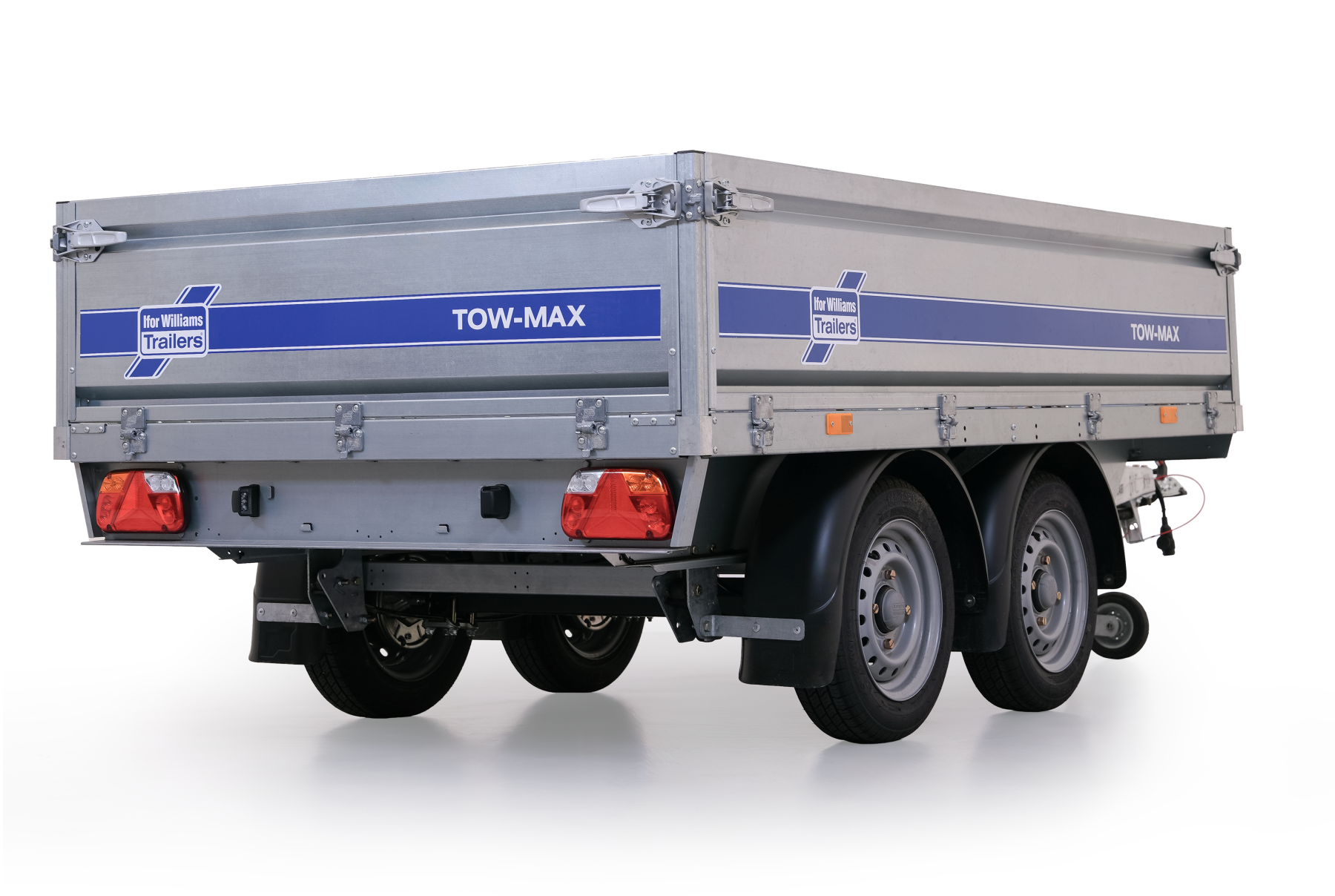

💡 12/24V LED lamps fitted as standard
🛞 Spare wheel and galvanised carrier fitted
🔧 Modular bolted construction for easy maintenance
🔽 Click to Show Optional Extras

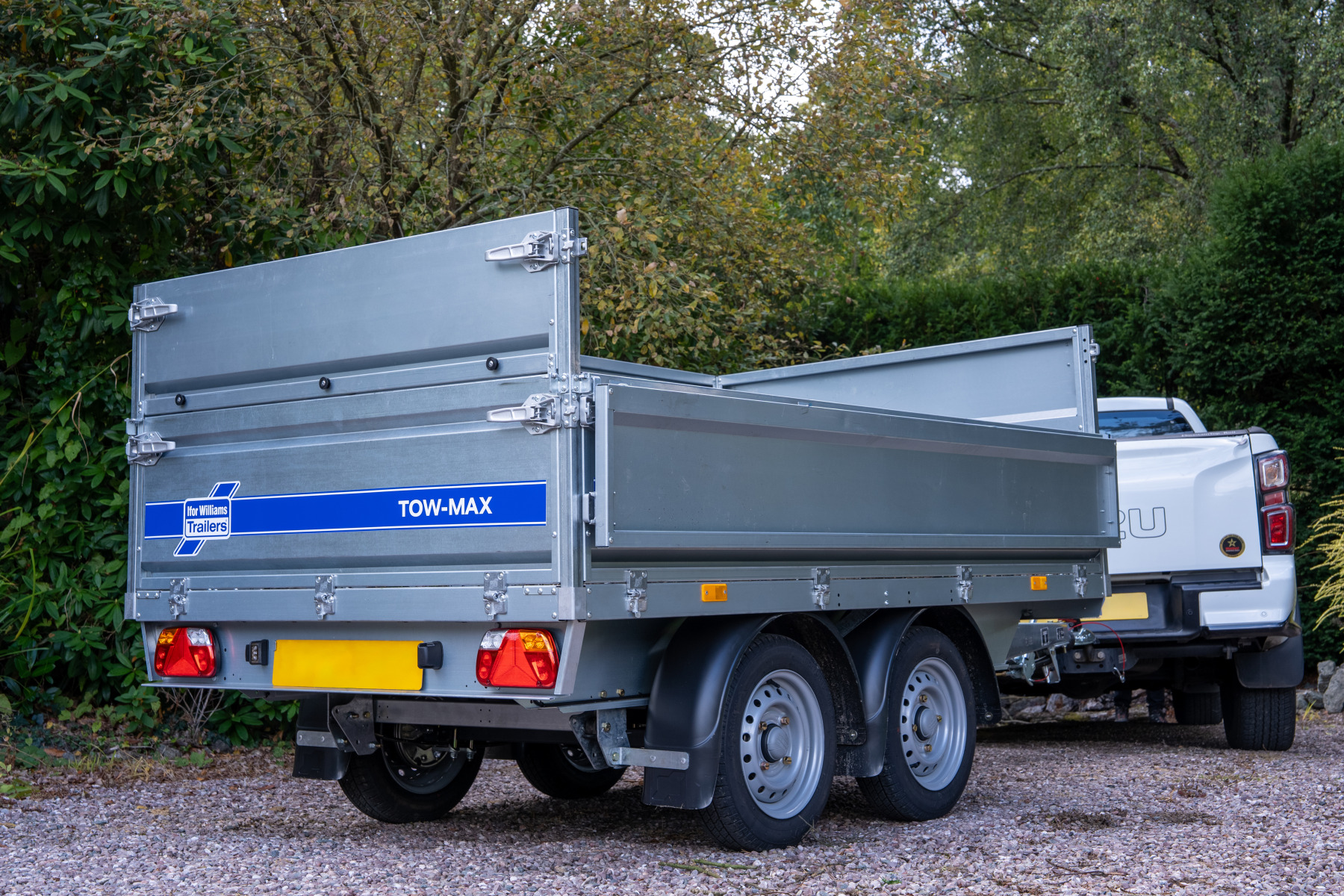

➕ Dropside Extensions (350mm) – increase side height to 800mm for taller or bulkier loads.
🟩 Perforated Sides (700mm) – ideal for garden waste or loose materials; improves airflow and reduces drag.
🪜 Ladder Rack – supports ladders, pipes, or long items safely; compatible with dropside extensions and perforated sides.
🛑 Suspension Damper Kit – add hydraulic dampers to improve towing stability and reduce bounce.
🛞 Steel Loading Ramps (2.4m) – rated 250kg per ramp for safe loading of machinery or small vehicles.
🧰 Loading Ramp Tray – under-chassis galvanised tray to store ramps neatly and securely.
🛡️ Tarpaulin Cover – heavy-duty 650g/m² cover with elastic cord to protect loads from the elements.
🧰 Toolbox (drawbar-mounted) – lockable galvanised steel toolbox for tools or equipment.
⚓ Winch Kit (manual) – 680kg max pull, ideal for loading ride-on mowers or compact machinery.
🪵 Propstands – stabilise the trailer bed when loading or handling heavy equipment.
🔒 Security Options – hitch locks, wheel clamps, and rear light guards to keep your trailer and load safe.
📸 Images are for illustration only. Some items shown may be optional extras and are not included in the standard trailer price.
✅ Price includes: Ifor Williams factory delivery to GT Towing Ltd. 💷 All prices include VAT.
💡 Did you know? The TM202-2514 twin-axle Tow-Max offers extra payload capacity with the same manoeuvrable design as single-axle models, perfect for heavier professional or domestic loads.
🔍 View Model Comparison
Model
Tyres
Gross Weight
Unladen Weight
Internal Length
Internal Width
Overall Length
Overall Width
TM071-2514
145/70R13
750kg
298kg
2.50m / 8'2"
1.47m / 4'10"
4.03m / 13'3"
1.60m / 5'3"
TM101-2514
145/70R13
1000kg
338kg
2.50m / 8'2"
1.47m / 4'10"
4.08m / 13'5"
1.60m / 5'3"
TM141-2514
165R13
1400kg
346kg
2.50m / 8'2"
1.47m / 4'10"
4.08m / 13'5"
1.60m / 5'3"
TM162-2514
145/70R13
1600kg
423kg
2.50m / 8'2"
1.47m / 4'10"
4.08m / 13'5"
1.60m / 5'3"
TM202-2514
145/70R13
2000kg
423kg
2.50m / 8'2"
1.47m / 4'10"
4.08m / 13'5"
1.60m / 5'3"
TM162-2817
145/70R13
1600kg
463kg
2.80m / 9'2"
1.75m / 5'9"
4.38m / 14'4"
1.88m / 6'2"
TM202-2817
145/70R13
2000kg
463kg
2.80m / 9'2"
1.75m / 5'9"
4.38m / 14'4"
1.88m / 6'2"
TM162-3617
145/70R13
1600kg
513kg
3.60m / 11'10"
1.75m / 5'9"
5.18m / 17'0"
1.88m / 6'2"
TM202-3617
145/70R13
2000kg
513kg
3.60m / 11'10"
1.75m / 5'9"
5.18m / 17'0"
1.88m / 6'2"
TM272-2817
165R13
2700kg
486kg
2.80m / 9'2"
1.75m / 5'9"
4.38m / 14'4"
1.88m / 6'2"
TM272-3617
165R13
2700kg
536kg
3.60m / 11'10"
1.75m / 5'9"
5.18m / 17'0"
1.88m / 6'2"
All specifications are manufacturer published values and are for guidance only. Always check the vehicle/trailer paperwork for exact figures.
Tech Spec
📐 Technical Specifications
Internal Length: 2.50 m / 8' 2"
Internal Width: 1.47 m / 4' 10"
Overall Length: 4.08 m / 13' 5"
Overall Width: 1.60 m / 5' 3"
Gross Weight: 2000 kg / 4,409 lbs
Unladen Weight: 423 kg / 933 lbs
Tyres: 145/70R13
