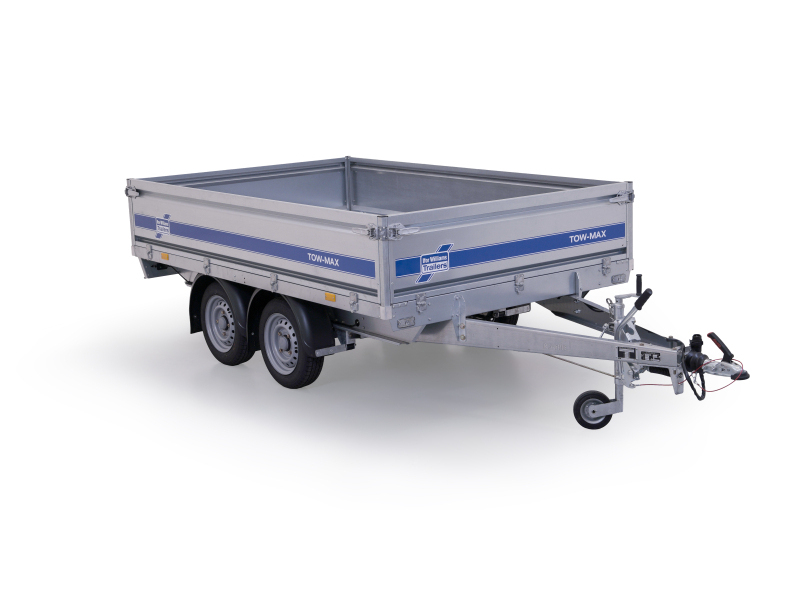

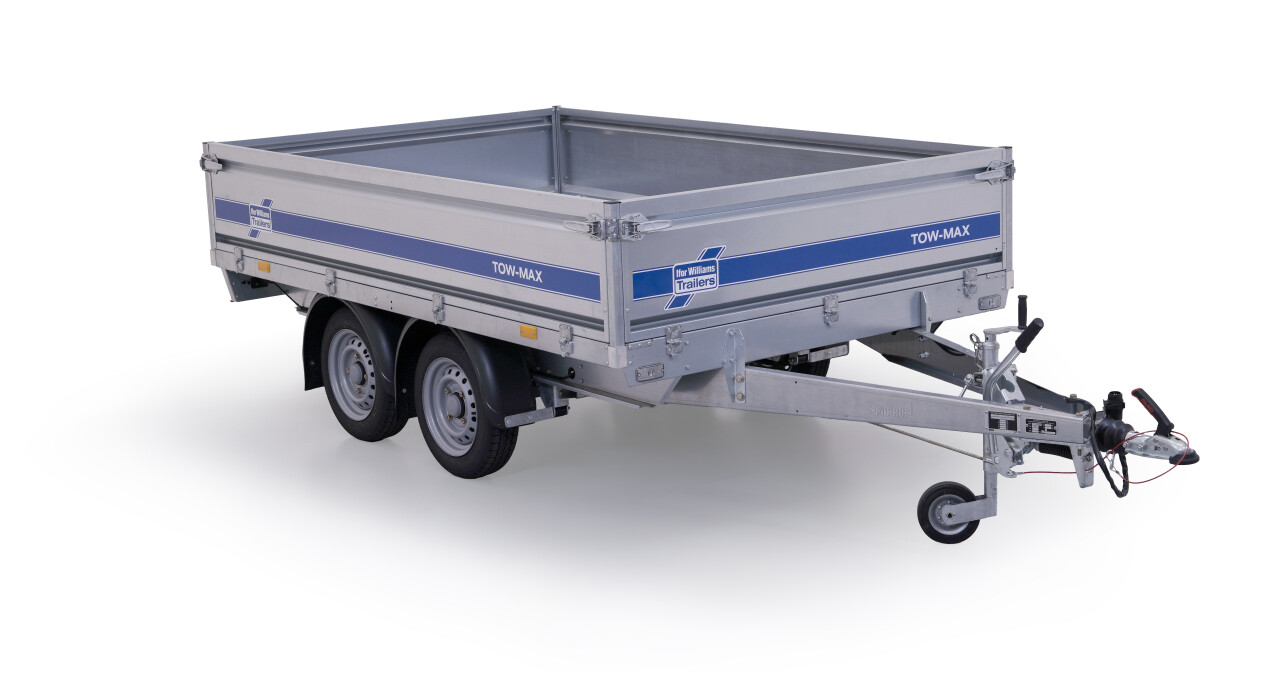

The Ifor Williams TM202-3617 Tow-Max is a robust twin-axle braked trailer designed for heavier loads while maintaining excellent towing stability. With a 2000kg gross weight and a practical 513kg unladen weight, it provides ample payload capacity without compromising on reliability or control.
Featuring a generous 3.60m x 1.75m loading bed, the TM202-3617 can handle bulky machinery, construction materials, and landscaping equipment with ease. Its long extra-long drawbar and proven Paraflex leaf spring suspension ensure a smooth, controlled tow even when fully loaded.
Built with a galvanised steel chassis, modular bolted construction, and Ifor Williams-designed axles, this trailer is engineered for longevity and minimal maintenance. Ideal for professional, domestic, or commercial use, the TM202-3617 strikes the perfect balance between heavy-duty capability and ease of manoeuvrability.
Choose the TM202-3617 for a high-capacity, twin-axle trailer that combines strength, practicality, and enduring reliability in one versatile package.
🔧 Key Features (Standard):
🔩 Galvanised steel chassis & extra-long drawbar
🌿 Paraflex leaf spring suspension (Ifor Williams design)
⚓ Winch Kit (manual) – 680kg max in-line pull for compact machinery or ride-on equipment.
🪵 Propstands – stabilise the trailer when loading or unloading heavy equipment.
🔒 Security Options – hitch locks, wheel clamps, and rear light guards for maximum security.

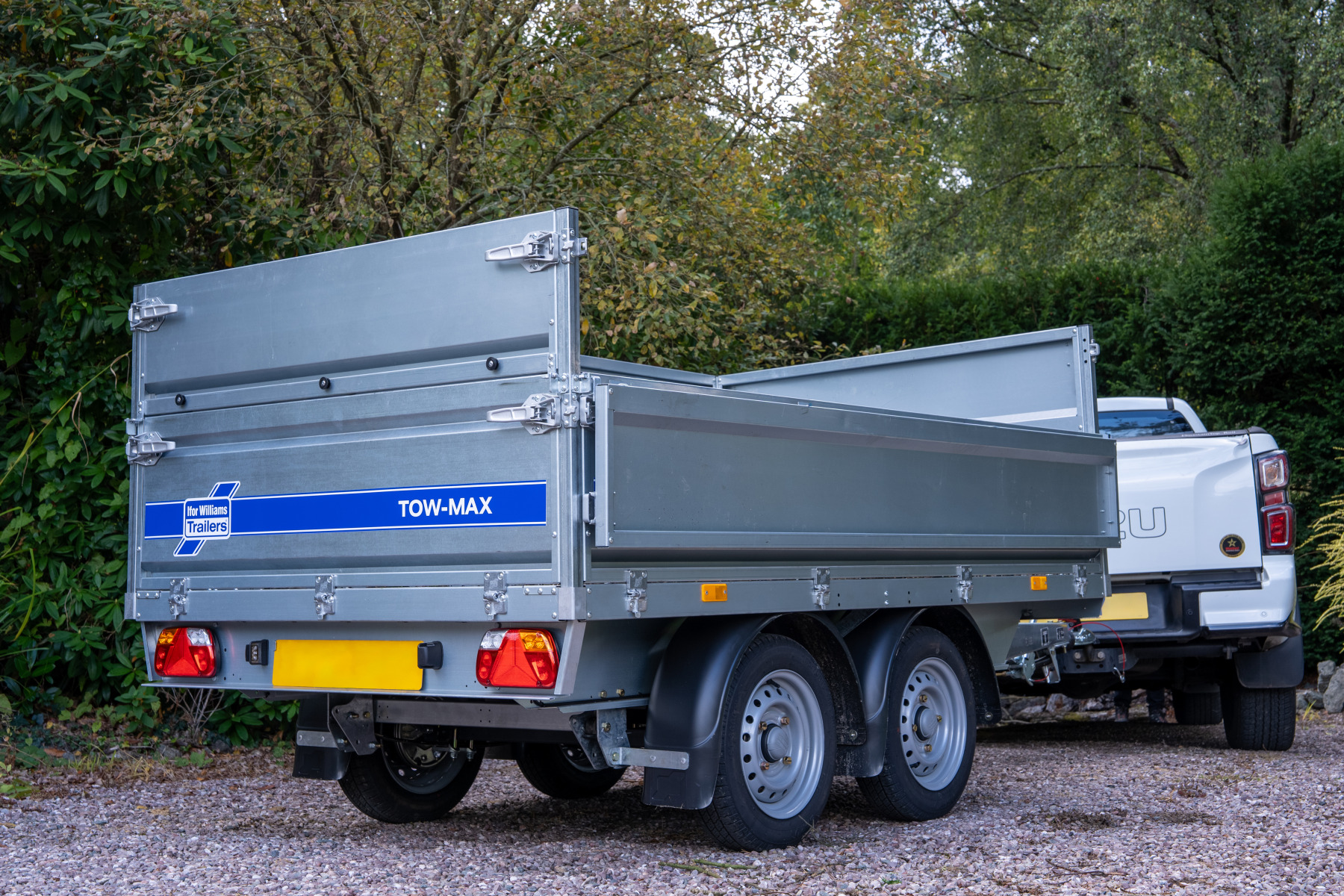

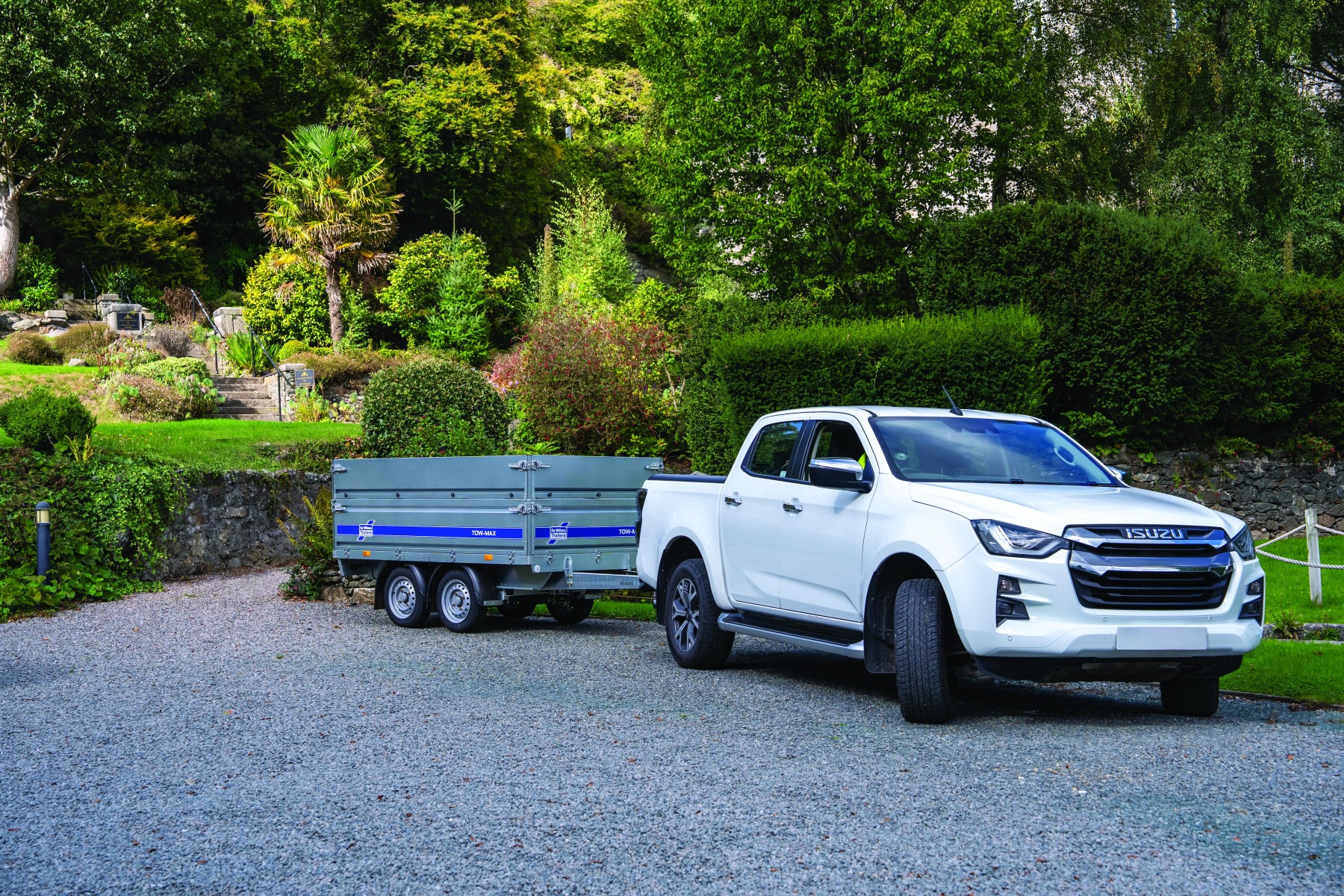

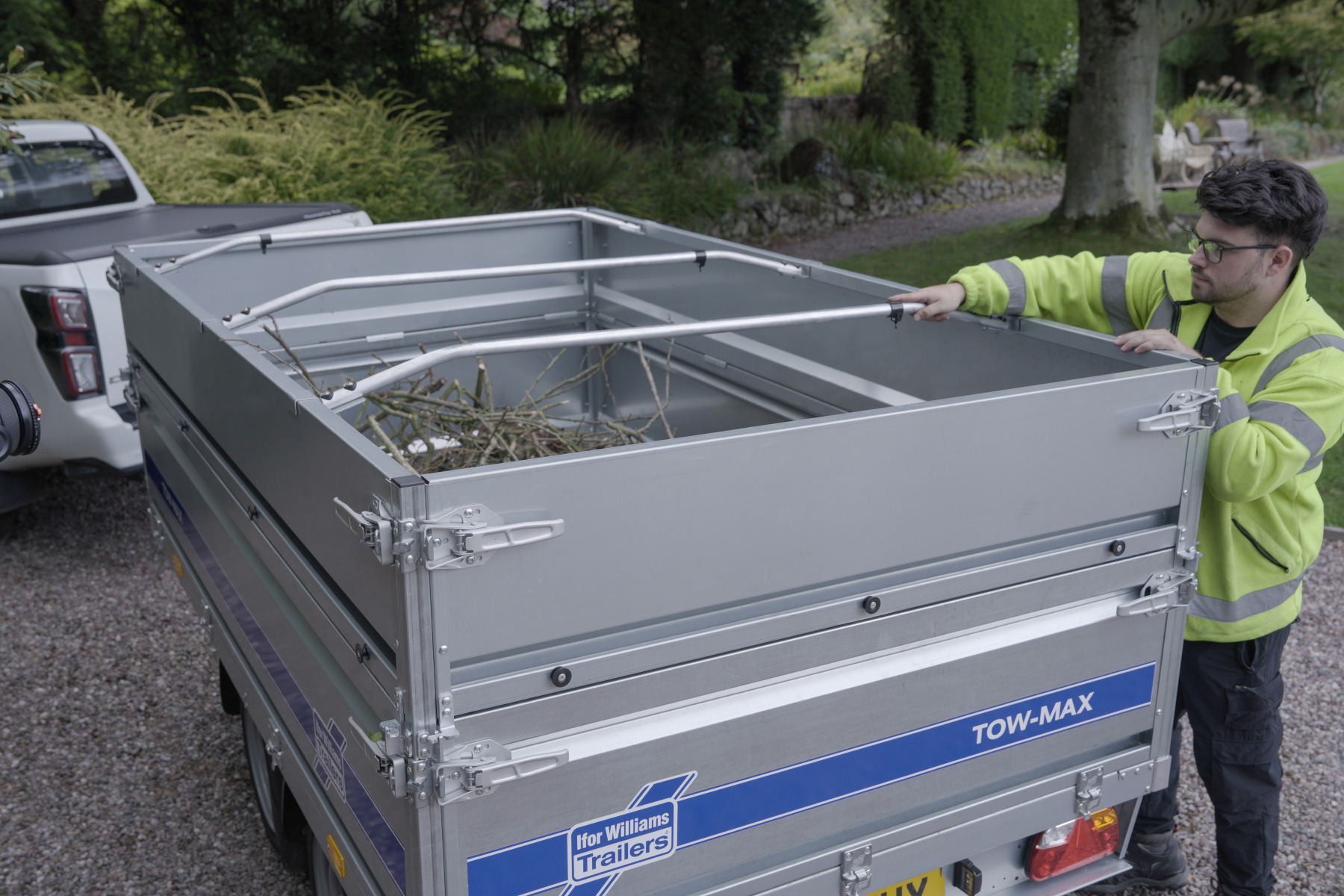

📸 Images are for illustration only. Optional extras may be shown but are not included in the standard trailer price.
✅ Price includes: Ifor Williams factory delivery to GT Towing Ltd. 💷 All prices include VAT.
💡 Did you know? The TM202-3617 is the largest 3.6m twin-axle Tow-Max trailer, designed to carry heavy loads with excellent towing stability and long-term reliability.
🔍 View Model Comparison
Model
Tyres
Gross Weight
Unladen Weight
Internal Length
Internal Width
Overall Length
Overall Width
TM071-2514
145/70R13
750kg
298kg
2.50m / 8'2"
1.47m / 4'10"
4.03m / 13'3"
1.60m / 5'3"
TM101-2514
145/70R13
1000kg
338kg
2.50m / 8'2"
1.47m / 4'10"
4.08m / 13'5"
1.60m / 5'3"
TM141-2514
165R13
1400kg
346kg
2.50m / 8'2"
1.47m / 4'10"
4.08m / 13'5"
1.60m / 5'3"
TM162-2514
145/70R13
1600kg
423kg
2.50m / 8'2"
1.47m / 4'10"
4.08m / 13'5"
1.60m / 5'3"
TM202-2514
145/70R13
2000kg
423kg
2.50m / 8'2"
1.47m / 4'10"
4.08m / 13'5"
1.60m / 5'3"
TM162-2817
145/70R13
1600kg
463kg
2.80m / 9'2"
1.75m / 5'9"
4.38m / 14'4"
1.88m / 6'2"
TM202-2817
145/70R13
2000kg
463kg
2.80m / 9'2"
1.75m / 5'9"
4.38m / 14'4"
1.88m / 6'2"
TM162-3617
145/70R13
1600kg
513kg
3.60m / 11'10"
1.75m / 5'9"
5.18m / 17'0"
1.88m / 6'2"
TM202-3617
145/70R13
2000kg
513kg
3.60m / 11'10"
1.75m / 5'9"
5.18m / 17'0"
1.88m / 6'2"
TM272-2817
165R13
2700kg
486kg
2.80m / 9'2"
1.75m / 5'9"
4.38m / 14'4"
1.88m / 6'2"
TM272-3617
165R13
2700kg
536kg
3.60m / 11'10"
1.75m / 5'9"
5.18m / 17'0"
1.88m / 6'2"
All specifications are manufacturer published values and for guidance only. Always confirm trailer and vehicle paperwork for exact figures.
Tech Spec
📐 Technical Specifications
Internal Length: 3.60 m / 11' 10"
Internal Width: 1.75 m / 5' 9"
Overall Length: 5.18 m / 17' 0"
Overall Width: 1.88 m / 6' 2"
Gross Weight: 2000 kg / 4,409 lbs
Unladen Weight: 513 kg / 1,131 lbs
Tyres: 145/70R13
