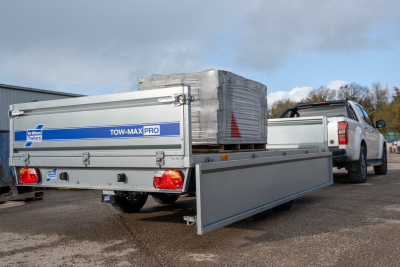

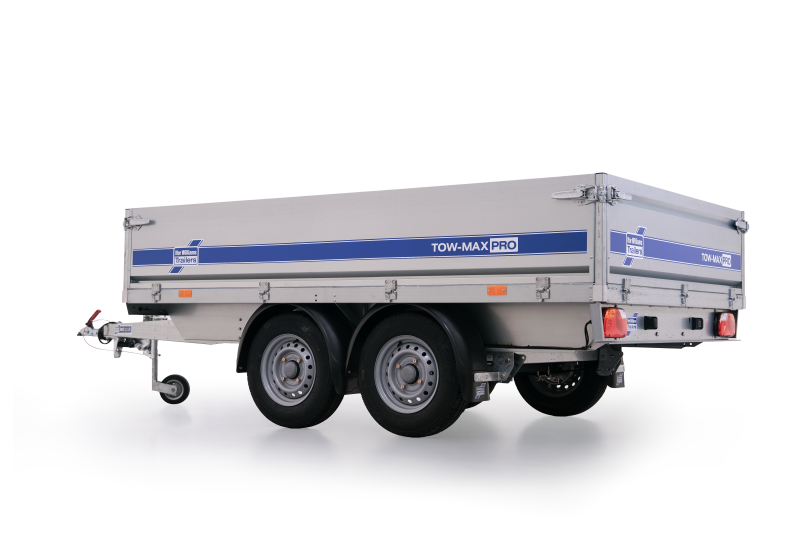

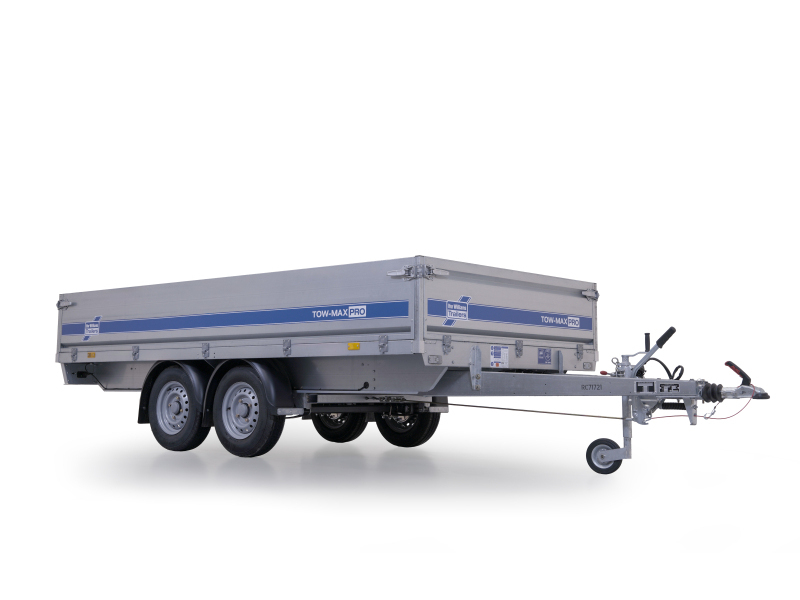

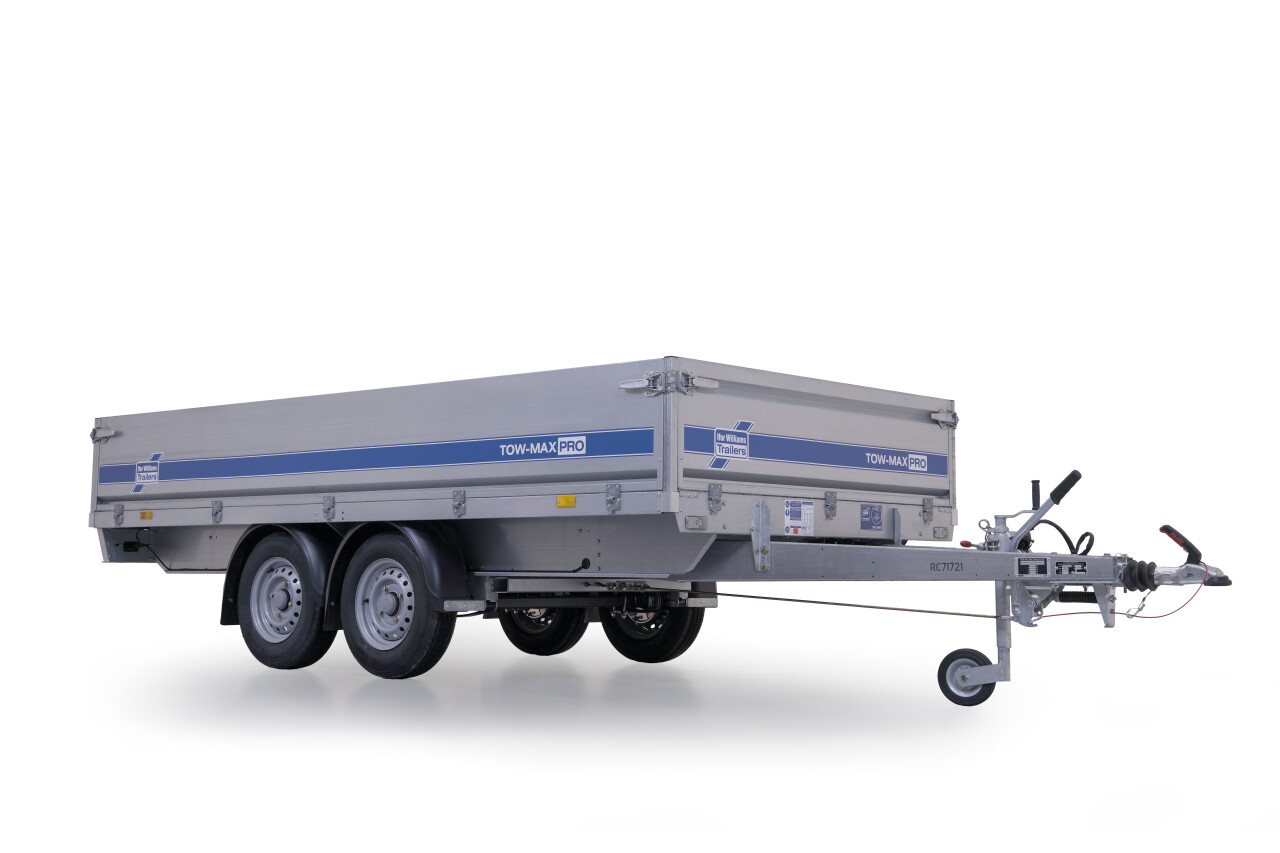

The Ifor Williams TM272-2817 Tow-Max Pro is the heaviest-duty twin-axle trailer in the Tow-Max Pro range, offering a massive 2700kg gross weight while maintaining a manageable unladen weight of 486kg. It’s engineered for professional, commercial, and domestic users who need to tow substantial loads with complete confidence.
Its generous 2.80m x 1.75m bed is perfect for transporting landscaping equipment, construction materials, machinery, and large bulk items. The reinforced heavy-duty drawbar and dual-axle Paraflex suspension ensure a smooth, stable ride even when fully loaded.
Constructed on a galvanised steel chassis with modular bolted construction and Ifor Williams-designed heavy-duty axles, the TM272-2817 combines strength, durability, and minimal maintenance requirements. This twin-axle model is the ideal choice for those seeking a high-capacity trailer without sacrificing manoeuvrability.
Whether for professional projects or demanding domestic tasks, the TM272-2817 makes transporting heavy, bulky loads straightforward, safe, and efficient.
🔧 Key Features (Standard):
🔩 Galvanised steel chassis & extra-long drawbar
🌿 Paraflex leaf spring suspension (Ifor Williams design)
⚓ Winch Kit (manual) – maximum 680kg in-line pull for loading compact machinery.
🪵 Propstands – stabilise the trailer bed when loading or unloading heavy items.
🔒 Security Options – hitch locks, wheel clamps, and rear light guards to protect trailer and load.
📸 Images are for illustration only. Some items shown may be optional extras and are not included in the standard trailer price.
✅ Price includes: Ifor Williams factory delivery to GT Towing Ltd. 💷 All prices include VAT.
💡 Did you know? The TM272-2817 is the most capable twin-axle Tow-Max Pro trailer in the 2.8m bed length range, offering the highest payload in its class while maintaining excellent towing stability.
🔍 View Model Comparison
Model
Tyres
Gross Weight
Unladen Weight
Internal Length
Internal Width
Overall Length
Overall Width
TM071-2514
145/70R13
750kg
298kg
2.50m / 8'2"
1.47m / 4'10"
4.03m / 13'3"
1.60m / 5'3"
TM101-2514
145/70R13
1000kg
338kg
2.50m / 8'2"
1.47m / 4'10"
4.08m / 13'5"
1.60m / 5'3"
TM141-2514
165R13
1400kg
346kg
2.50m / 8'2"
1.47m / 4'10"
4.08m / 13'5"
1.60m / 5'3"
TM162-2514
145/70R13
1600kg
423kg
2.50m / 8'2"
1.47m / 4'10"
4.08m / 13'5"
1.60m / 5'3"
TM202-2514
145/70R13
2000kg
423kg
2.50m / 8'2"
1.47m / 4'10"
4.08m / 13'5"
1.60m / 5'3"
TM162-2817
145/70R13
1600kg
463kg
2.80m / 9'2"
1.75m / 5'9"
4.38m / 14'4"
1.88m / 6'2"
TM202-2817
145/70R13
2000kg
463kg
2.80m / 9'2"
1.75m / 5'9"
4.38m / 14'4"
1.88m / 6'2"
TM162-3617
145/70R13
1600kg
513kg
3.60m / 11'10"
1.75m / 5'9"
5.18m / 17'0"
1.88m / 6'2"
TM202-3617
145/70R13
2000kg
513kg
3.60m / 11'10"
1.75m / 5'9"
5.18m / 17'0"
1.88m / 6'2"
TM272-2817
165R13
2700kg
486kg
2.80m / 9'2"
1.75m / 5'9"
4.38m / 14'4"
1.88m / 6'2"
TM272-3617
165R13
2700kg
536kg
3.60m / 11'10"
1.75m / 5'9"
5.18m / 17'0"
1.88m / 6'2"
All specifications are manufacturer published values and are for guidance only. Always check the vehicle/trailer paperwork for exact figures.
Tech Spec
📐 Technical Specifications
Internal Length: 2.80 m / 9' 2"
Internal Width: 1.75 m / 5' 9"
Overall Length: 4.38 m / 14' 4"
Overall Width: 1.88 m / 6' 2"
Gross Weight: 2700 kg / 5,952 lbs
Unladen Weight: 486 kg / 1,073 lbs
Tyres: 165R13
