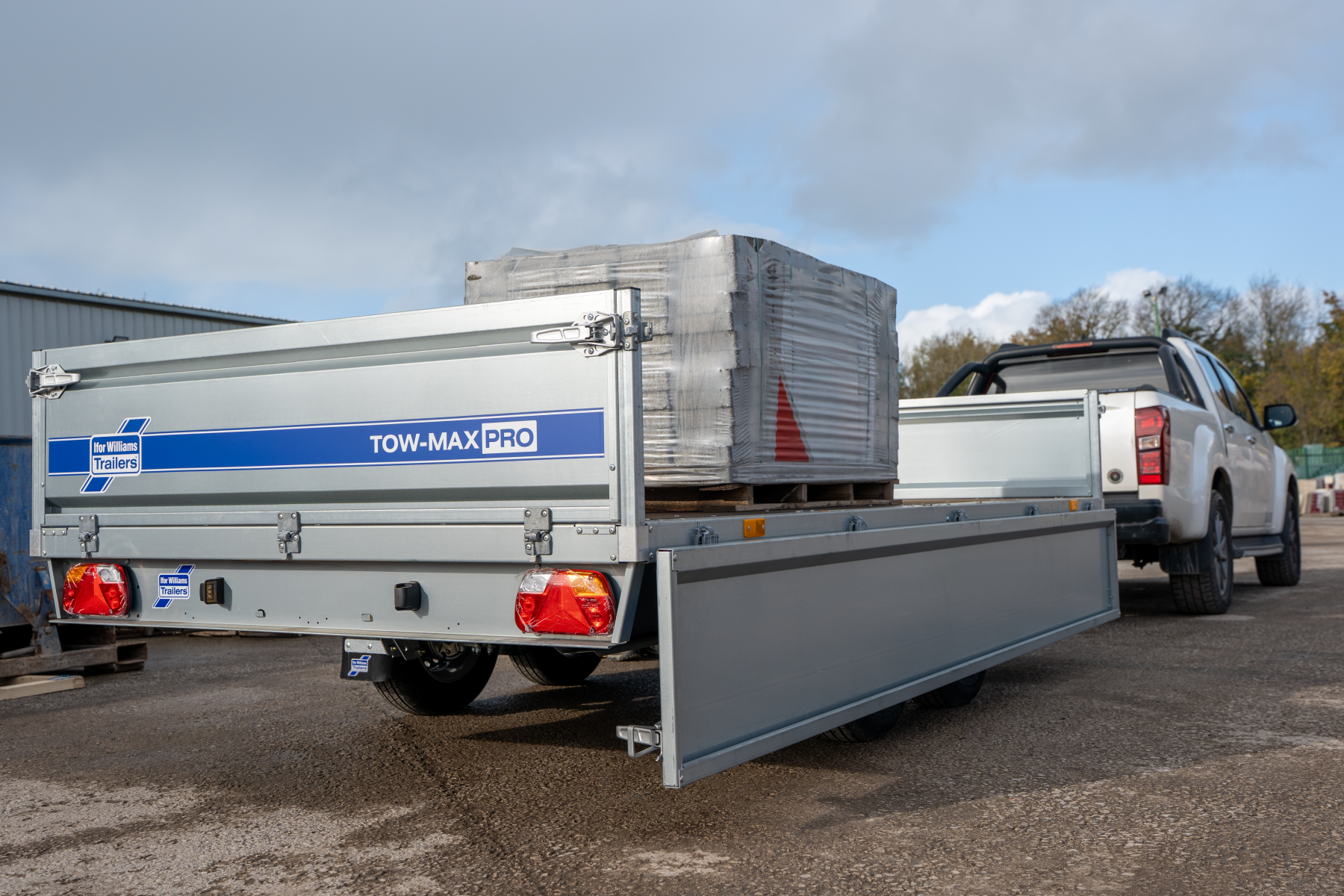

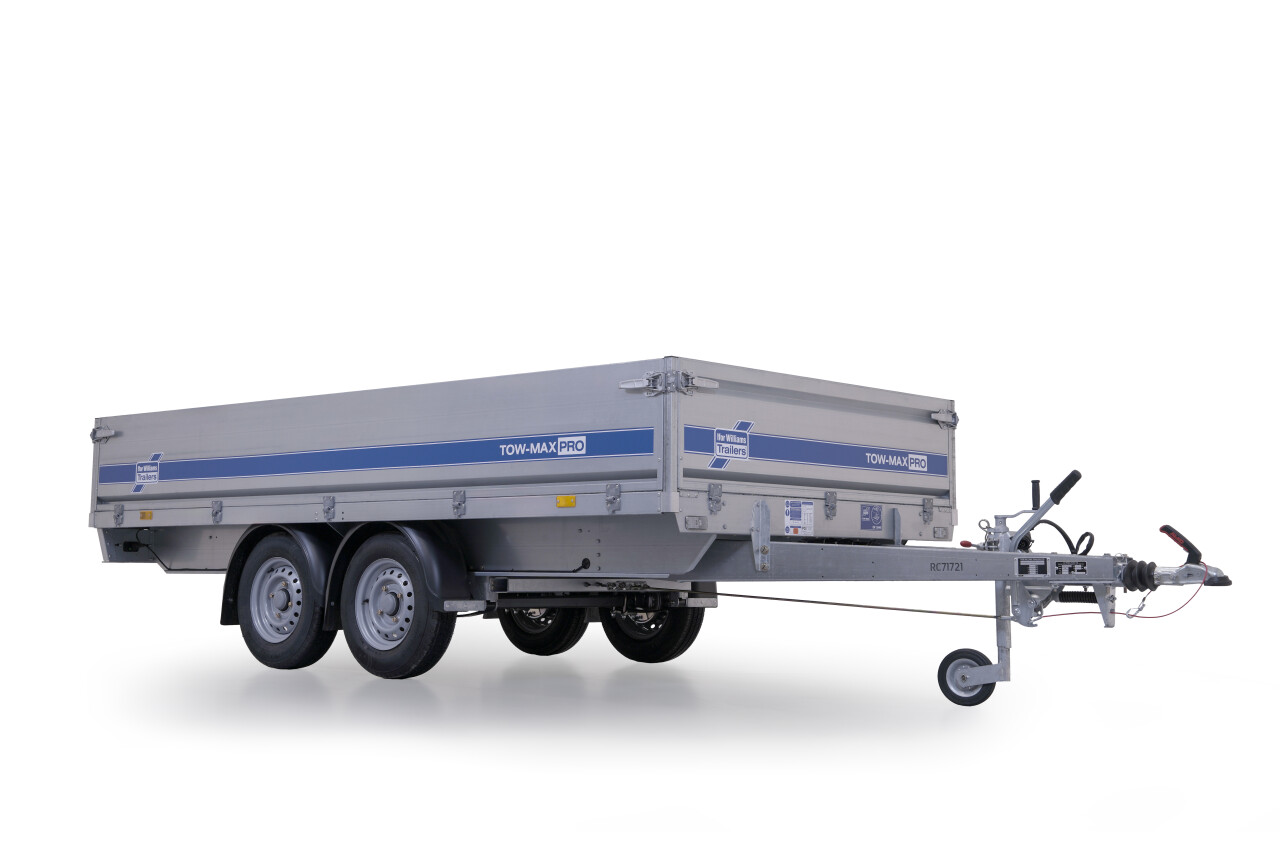

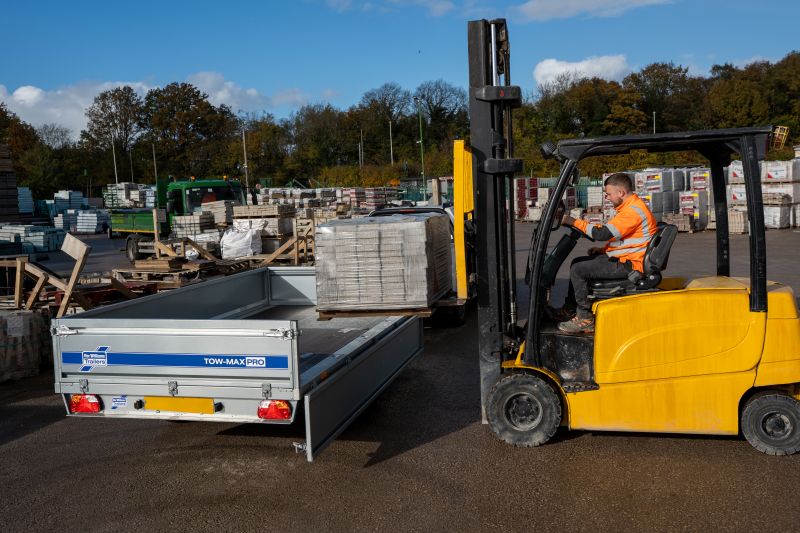

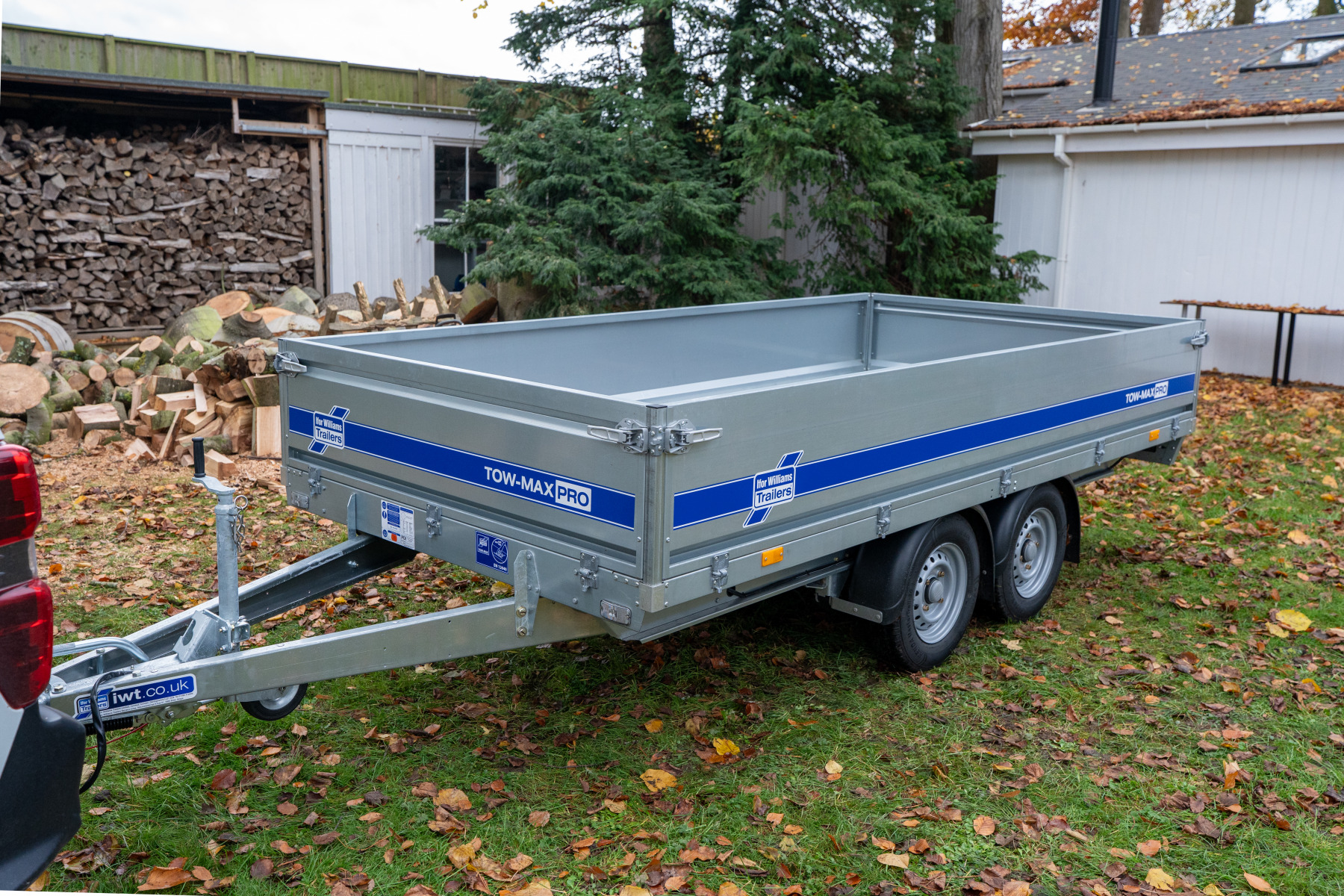

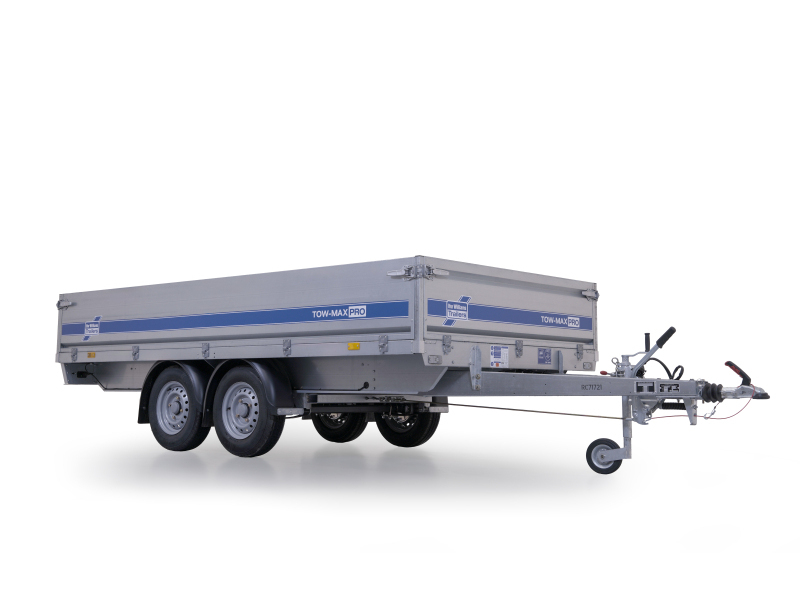

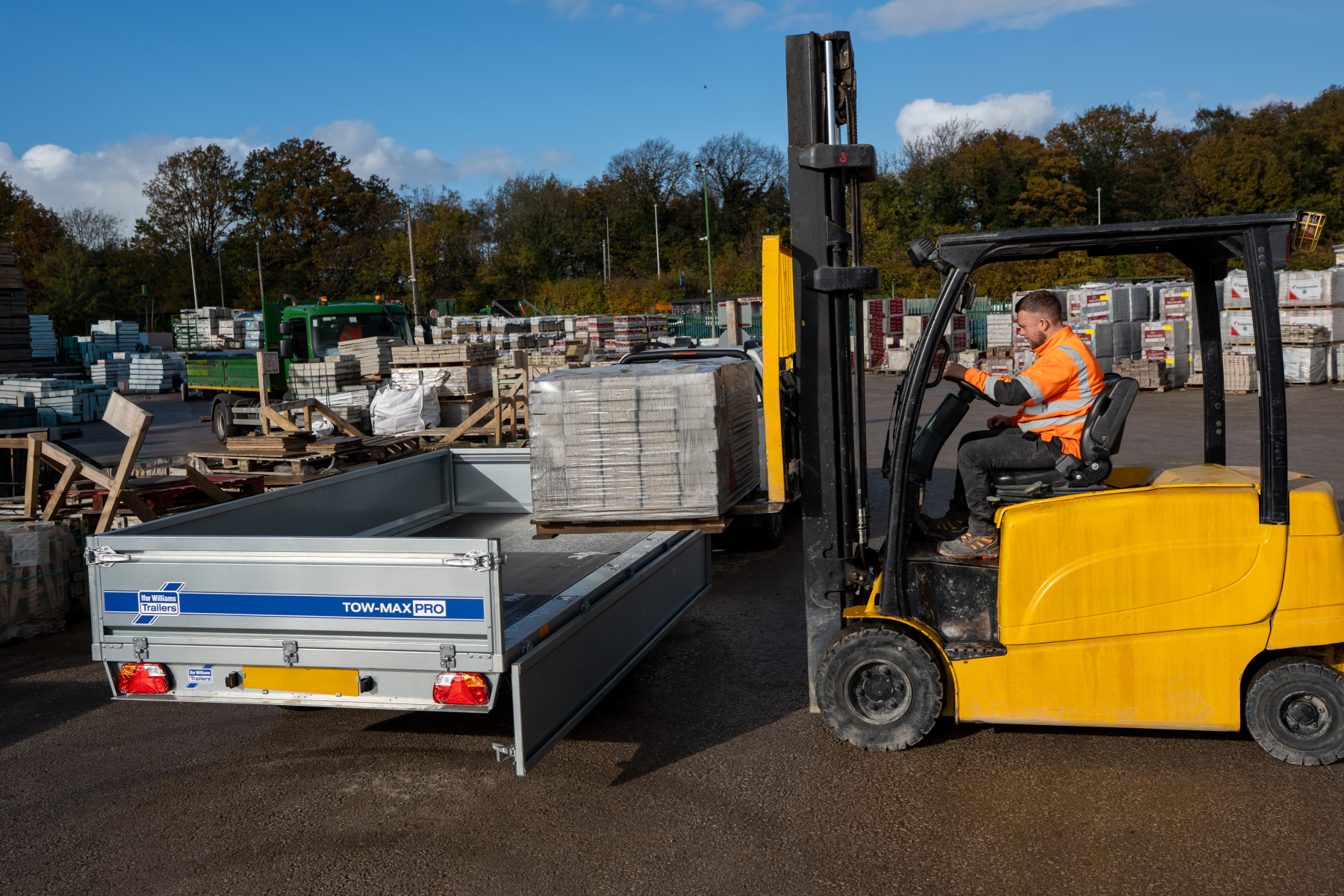

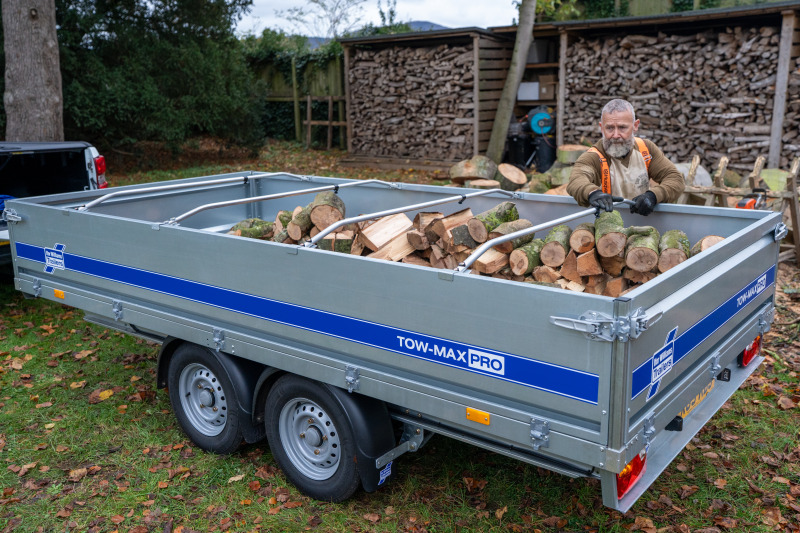

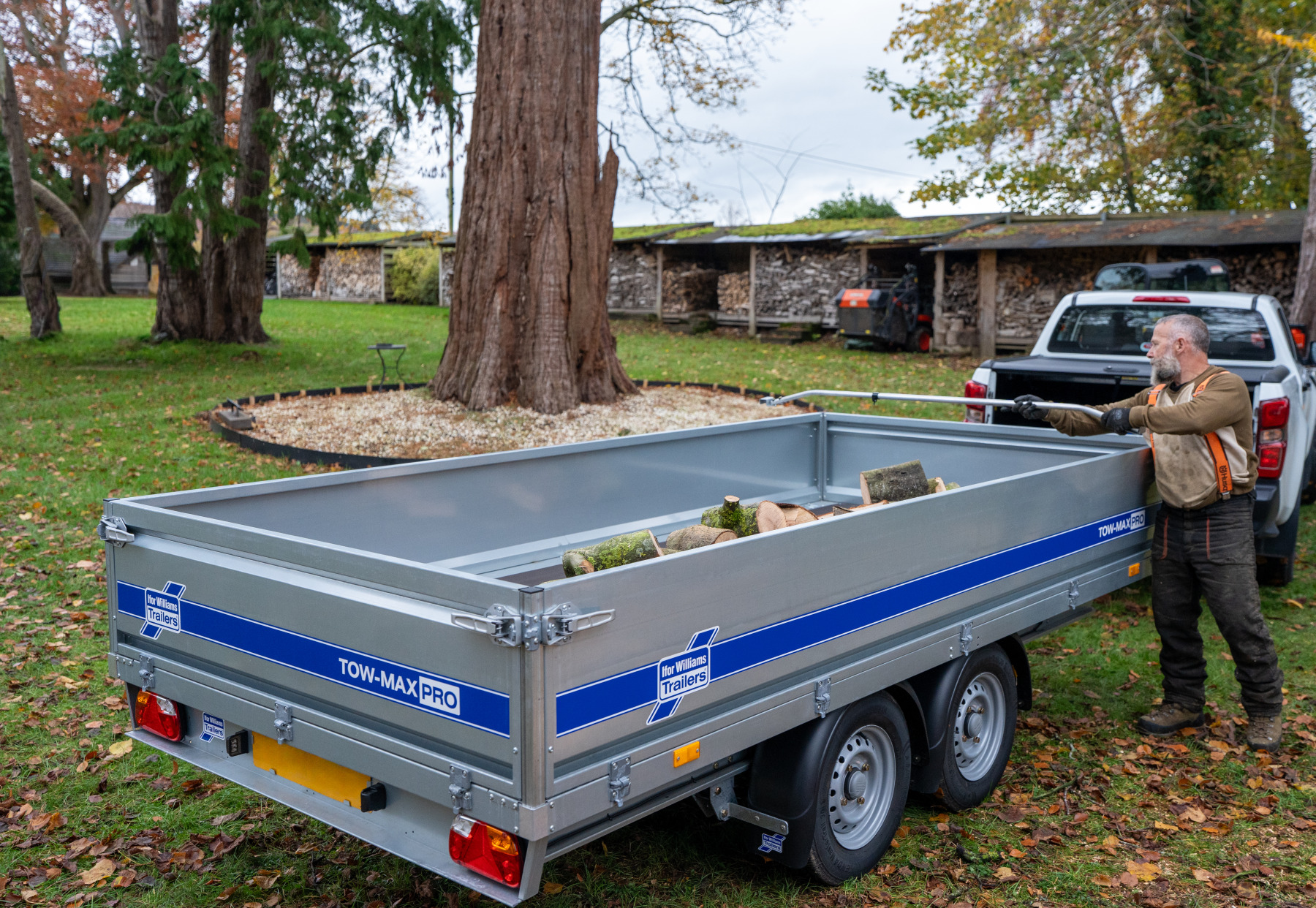

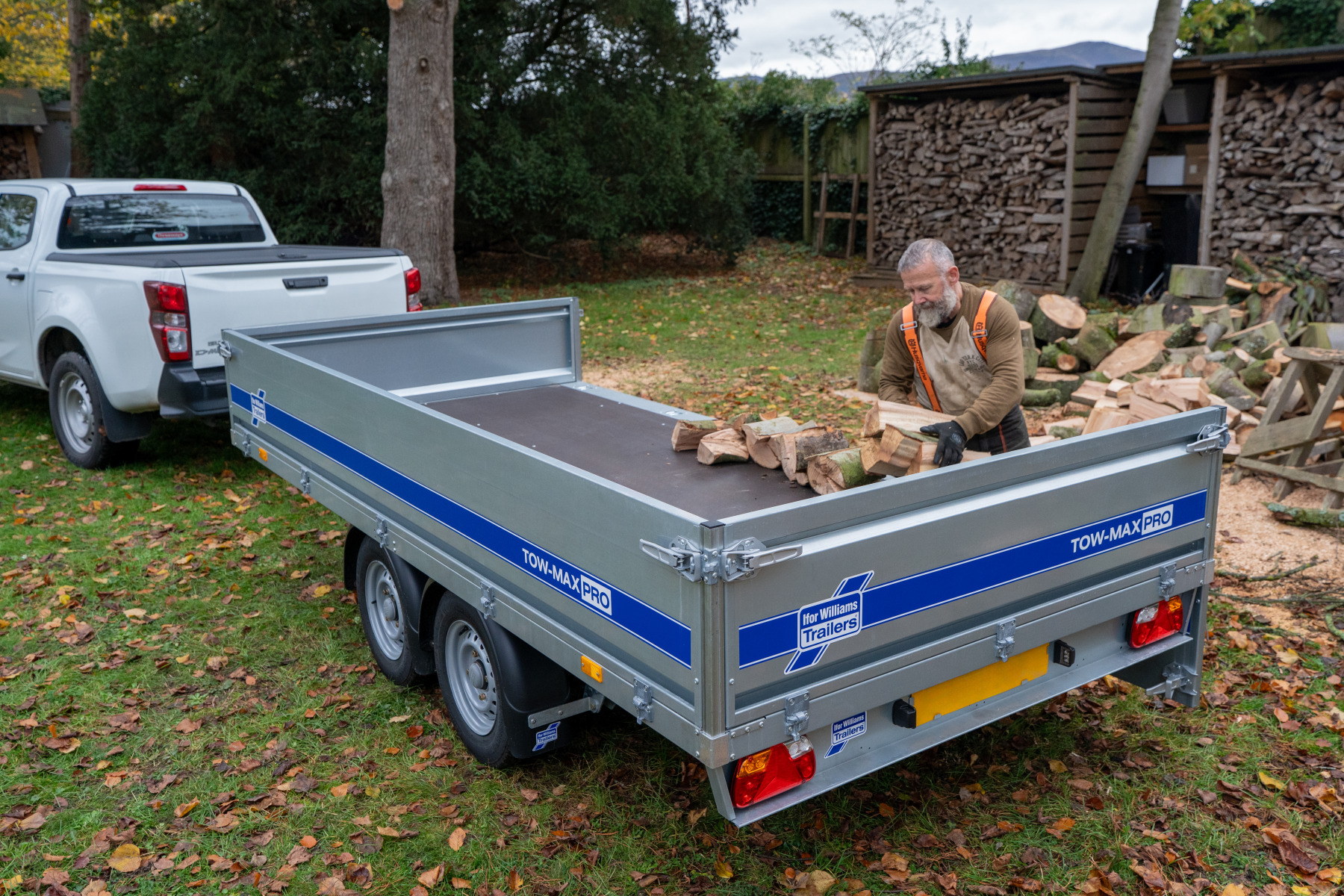

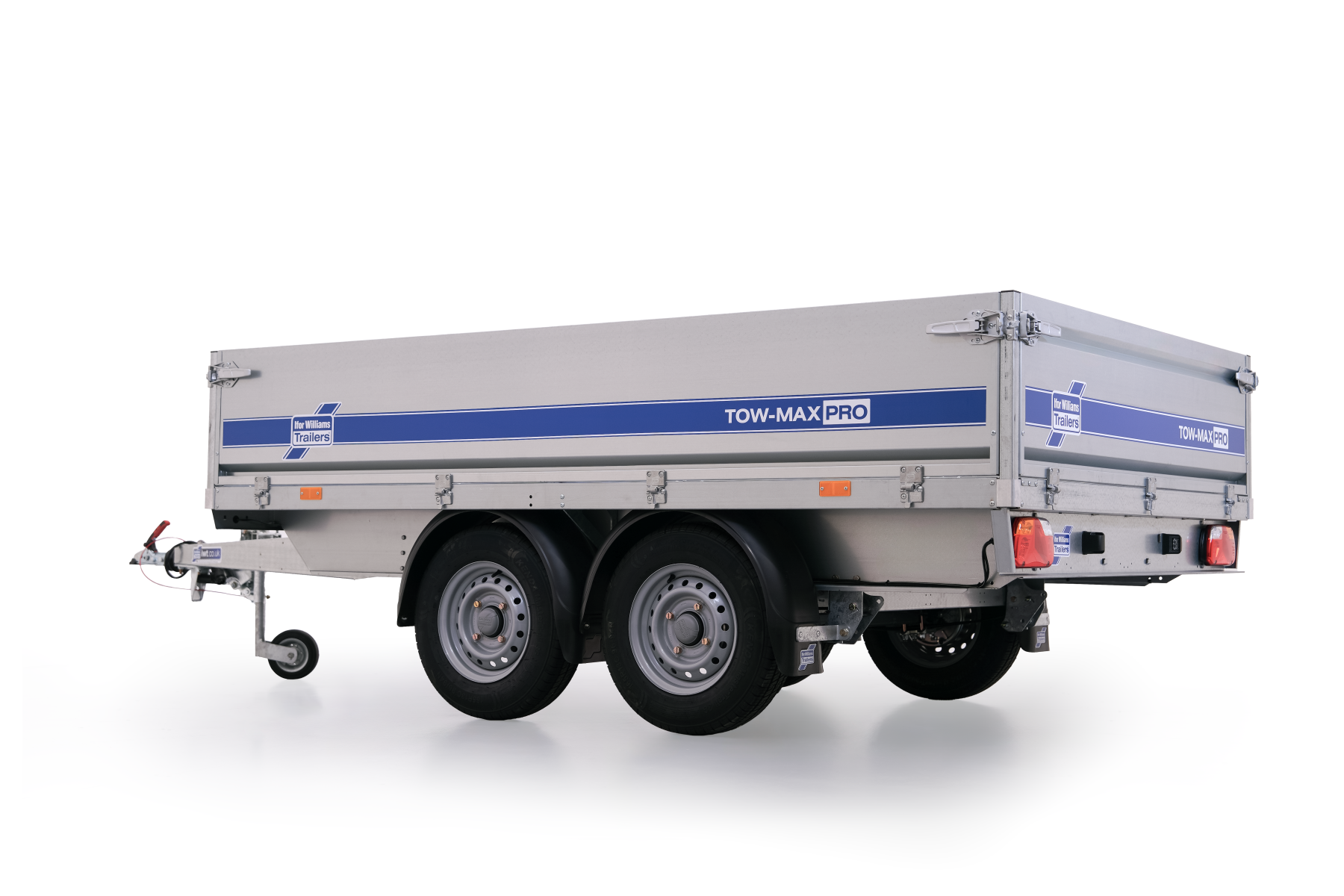

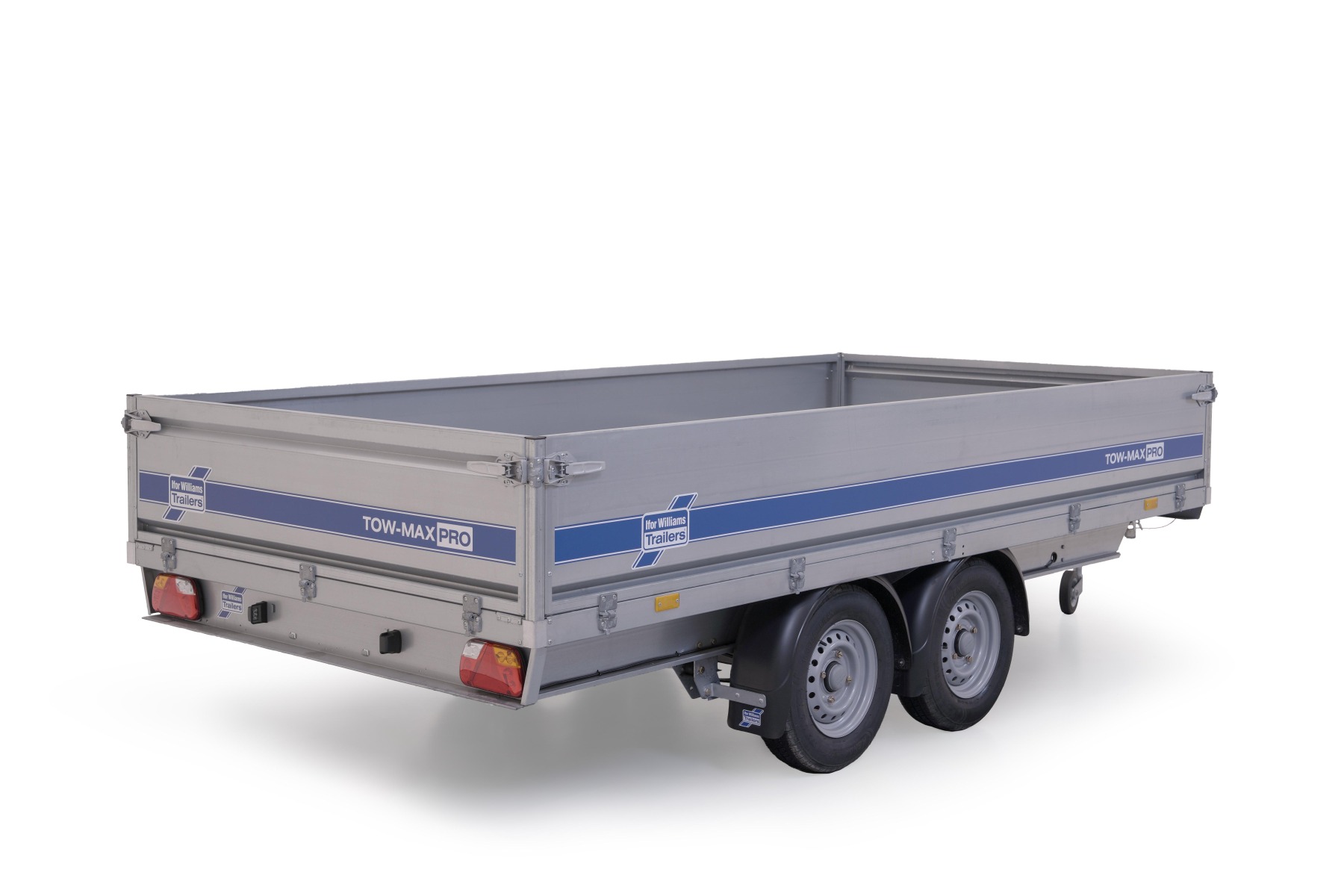

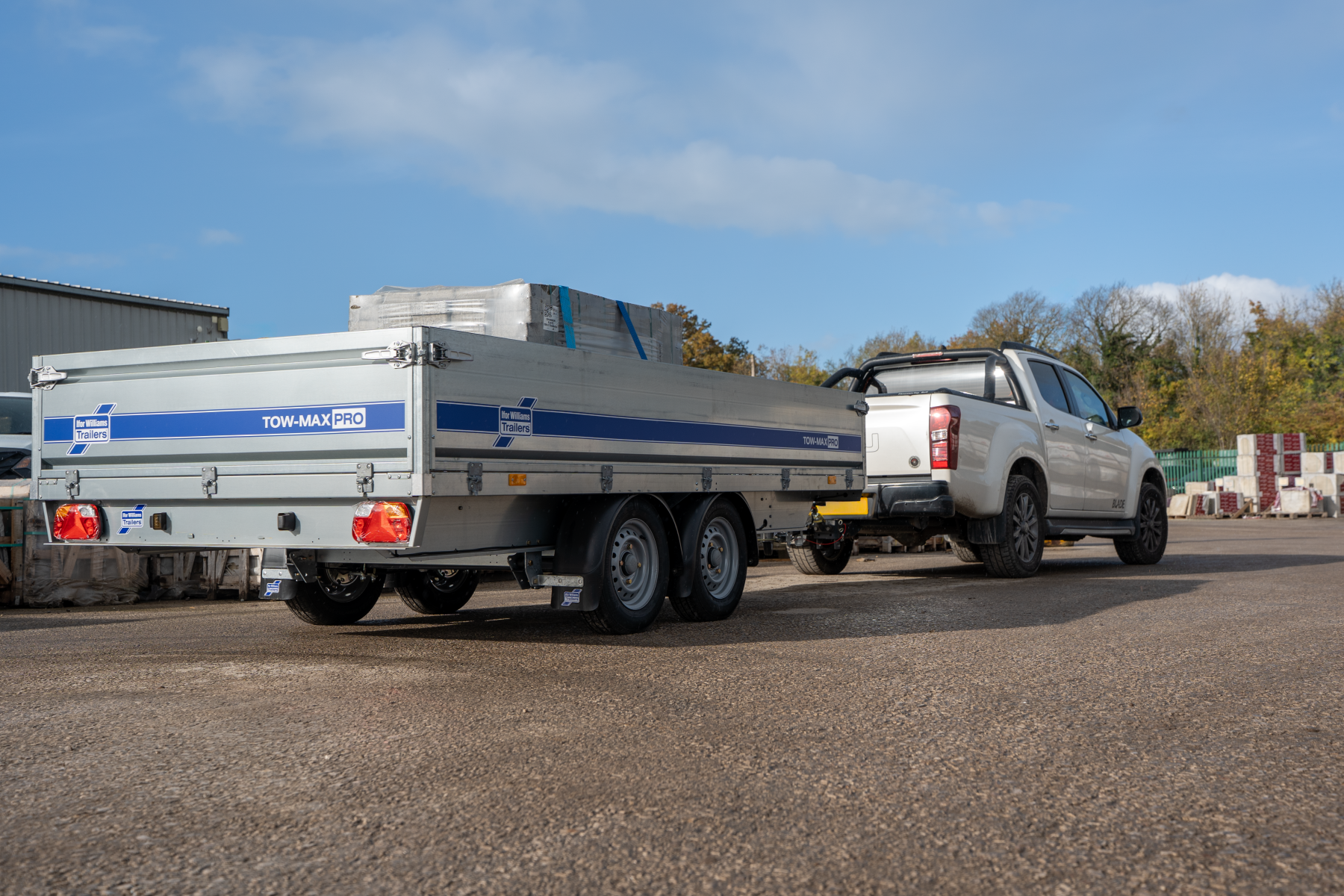

The Ifor Williams TM272-3617 Tow-Max Pro is the largest twin-axle trailer in the Tow-Max range, engineered for heavy-duty towing and maximum payloads. With a substantial 2700kg gross weight and a robust unladen mass of 536kg, it’s designed to handle the toughest domestic, commercial, or professional transport tasks while remaining stable and manoeuvrable.
Its generous 3.60m x 1.75m loading bed accommodates large equipment, landscaping materials, and machinery with ease. Twin Paraflex leaf spring suspension ensures smooth towing, excellent load control, and minimal bounce, even on uneven terrain.
Constructed with a galvanised steel chassis, 2.0mm heavy-duty dropsides, and Ifor Williams-designed axles, the TM272-3617 combines rugged durability with minimal maintenance. Extra-long drawbars improve towing stability and manoeuvrability, while the modular, bolted construction allows easy replacement of key components.
Choose the TM272-3617 for a professional-grade trailer that offers maximum capacity, enhanced stability, and long-term reliability for demanding transport tasks.
🔧 Key Features (Standard):
🔩 Galvanised steel chassis & extra-long drawbar
🌿 Paraflex leaf spring suspension (Ifor Williams design)
🔗 Four flush-mounted lashing points (five on 3.6m models)

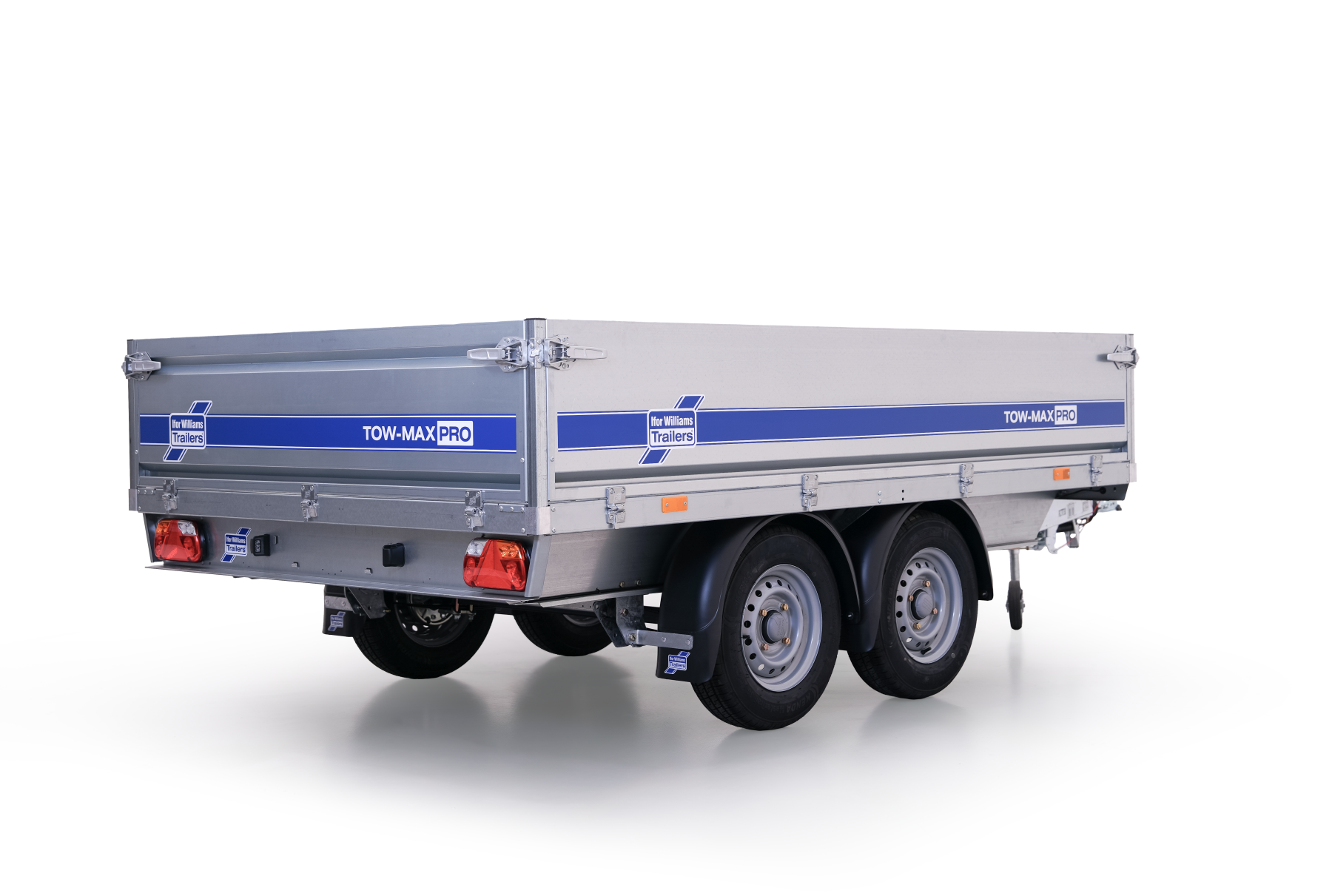

💡 12/24V LED lamps fitted as standard
🛞 Spare wheel and galvanised carrier fitted
🔧 Modular bolted construction for easy maintenance
🔽 Click to Show Optional Extras
➕ Dropside Extensions (350mm) – increase side height to 800mm for bulky or high loads.
🟩 Perforated Sides (700mm) – ideal for garden waste or loose materials; reduces wind resistance.
🪜 Ladder Rack – supports ladders and long items safely; compatible with extensions and perforated sides.
🛑 Suspension Damper Kit – hydraulic dampers for enhanced towing stability on twin-axle models.
🛞 Steel Loading Ramps (2.4m) – rated 250kg per ramp for safe loading of machinery and vehicles.
🧰 Loading Ramp Tray – galvanised under-chassis tray to store ramps securely.

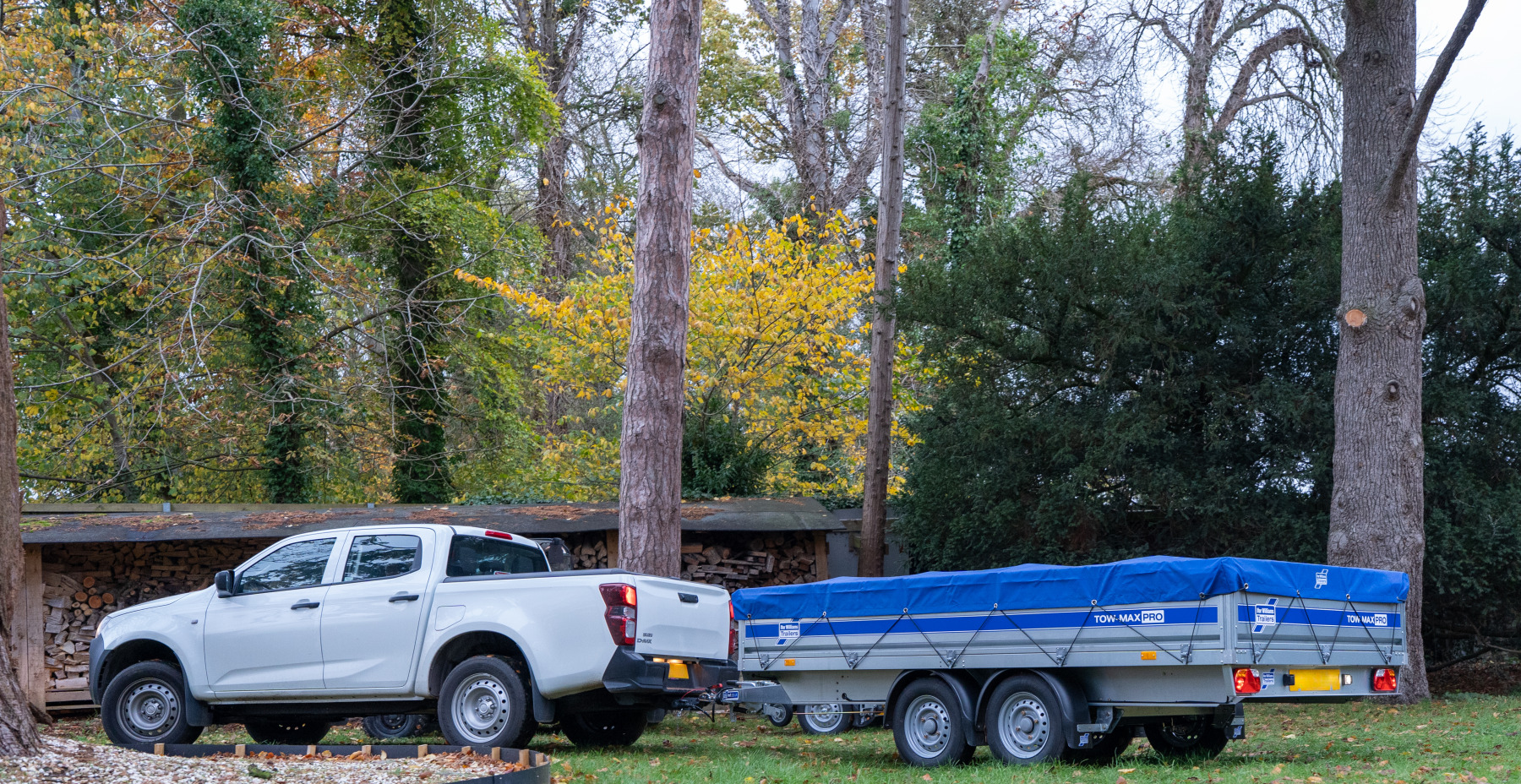

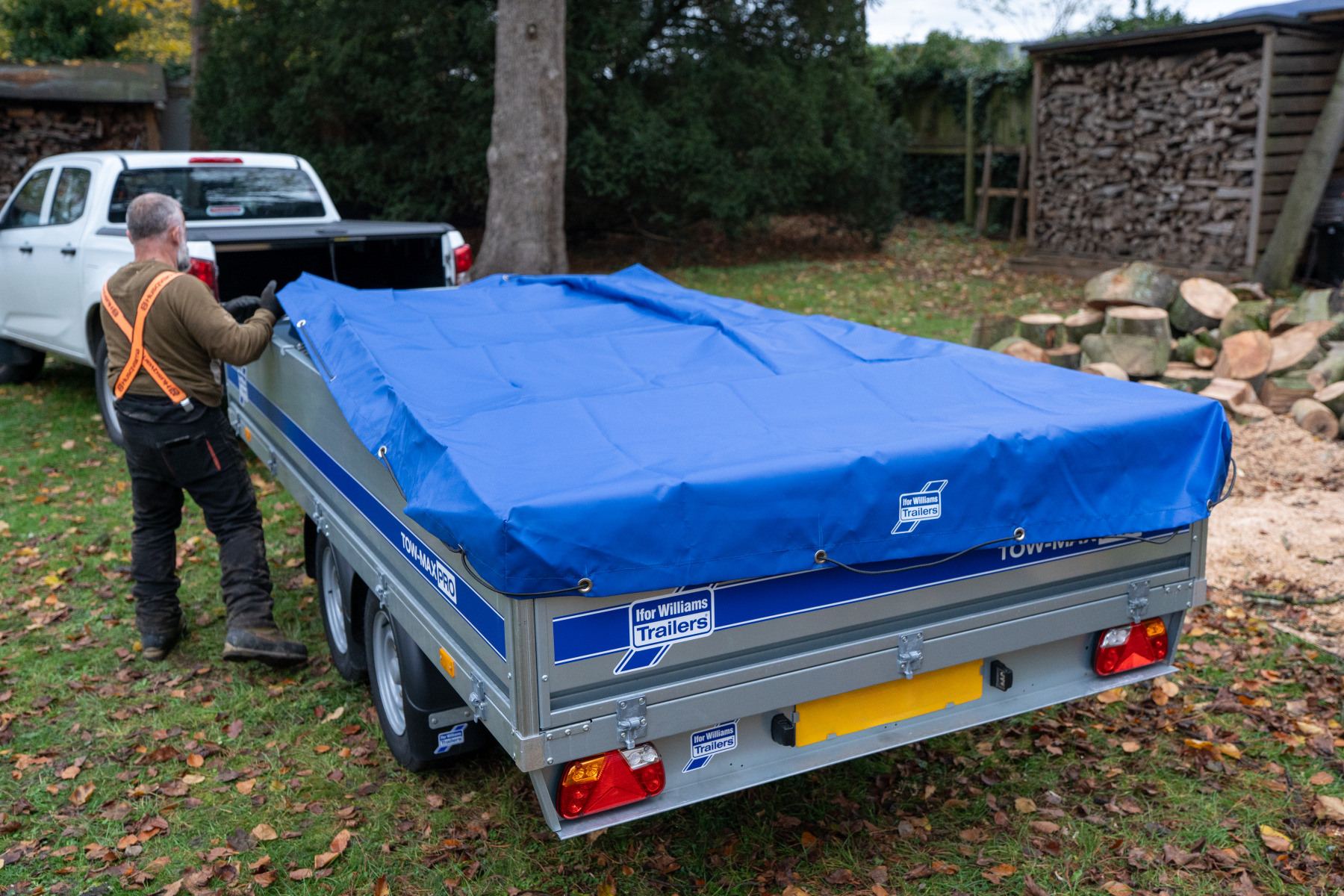

🛡️ Tarpaulin Cover – 650g/m² heavy-duty tarpaulin with elastic cord for full load protection.
🧰 Toolbox (drawbar-mounted) – lockable galvanised steel toolbox; 490 x 247 x 197mm for 1.75m wide trailers.
⚓ Winch Kit (manual) – 680kg maximum in-line pull, ideal for compact machinery.
🪵 Propstands – stabilise the trailer when loading heavy equipment.
🔒 Security Options – hitch locks, wheel clamps, and rear light guards for added protection.
📸 Images are for illustration only. Some items shown may be optional extras and are not included in the standard trailer price.
✅ Price includes: Ifor Williams factory delivery to GT Towing Ltd. 💷 All prices include VAT.
💡 Did you know? The TM272-3617 is the largest Tow-Max Pro trailer, designed for high-capacity transport while maintaining twin-axle towing stability and long-term durability.
🔍 View Model Comparison
Model
Tyres
Gross Weight
Unladen Weight
Internal Length
Internal Width
Overall Length
Overall Width
TM071-2514
145/70R13
750kg
298kg
2.50m / 8'2"
1.47m / 4'10"
4.03m / 13'3"
1.60m / 5'3"
TM101-2514
145/70R13
1000kg
338kg
2.50m / 8'2"
1.47m / 4'10"
4.08m / 13'5"
1.60m / 5'3"
TM141-2514
165R13
1400kg
346kg
2.50m / 8'2"
1.47m / 4'10"
4.08m / 13'5"
1.60m / 5'3"
TM162-2514
145/70R13
1600kg
423kg
2.50m / 8'2"
1.47m / 4'10"
4.08m / 13'5"
1.60m / 5'3"
TM202-2514
145/70R13
2000kg
423kg
2.50m / 8'2"
1.47m / 4'10"
4.08m / 13'5"
1.60m / 5'3"
TM162-2817
145/70R13
1600kg
463kg
2.80m / 9'2"
1.75m / 5'9"
4.38m / 14'4"
1.88m / 6'2"
TM202-2817
145/70R13
2000kg
463kg
2.80m / 9'2"
1.75m / 5'9"
4.38m / 14'4"
1.88m / 6'2"
TM162-3617
145/70R13
1600kg
513kg
3.60m / 11'10"
1.75m / 5'9"
5.18m / 17'0"
1.88m / 6'2"
TM202-3617
145/70R13
2000kg
513kg
3.60m / 11'10"
1.75m / 5'9"
5.18m / 17'0"
1.88m / 6'2"
TM272-2817
165R13
2700kg
486kg
2.80m / 9'2"
1.75m / 5'9"
4.38m / 14'4"
1.88m / 6'2"
TM272-3617
165R13
2700kg
536kg
3.60m / 11'10"
1.75m / 5'9"
5.18m / 17'0"
1.88m / 6'2"
All specifications are manufacturer published values and are for guidance only. Always check the vehicle/trailer paperwork for exact figures.
Tech Spec
📐 Technical Specifications
Internal Length: 3.60 m / 11' 10"
Internal Width: 1.75 m / 5' 9"
Overall Length: 5.18 m / 17' 0"
Overall Width: 1.88 m / 6' 2"
Gross Weight: 2700 kg / 5,952 lbs
Unladen Weight: 536 kg / 1,181 lbs
Tyres: 165R13
