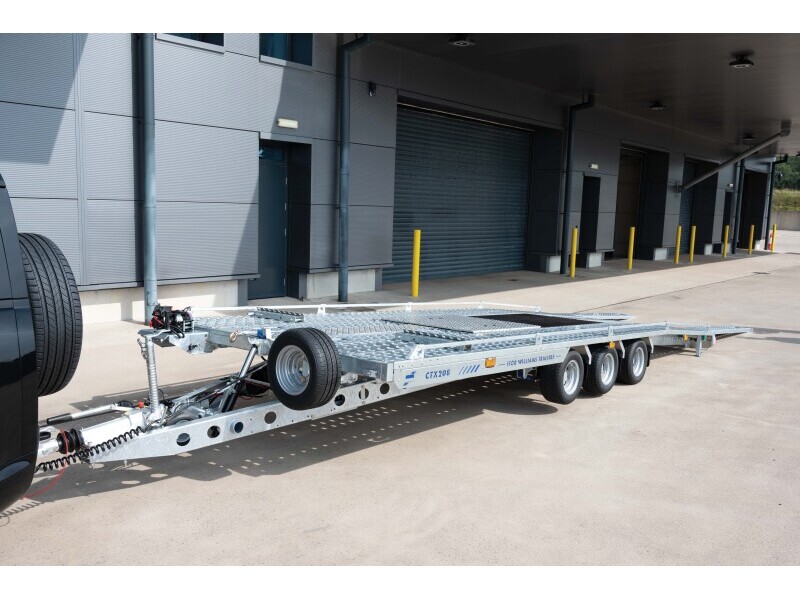

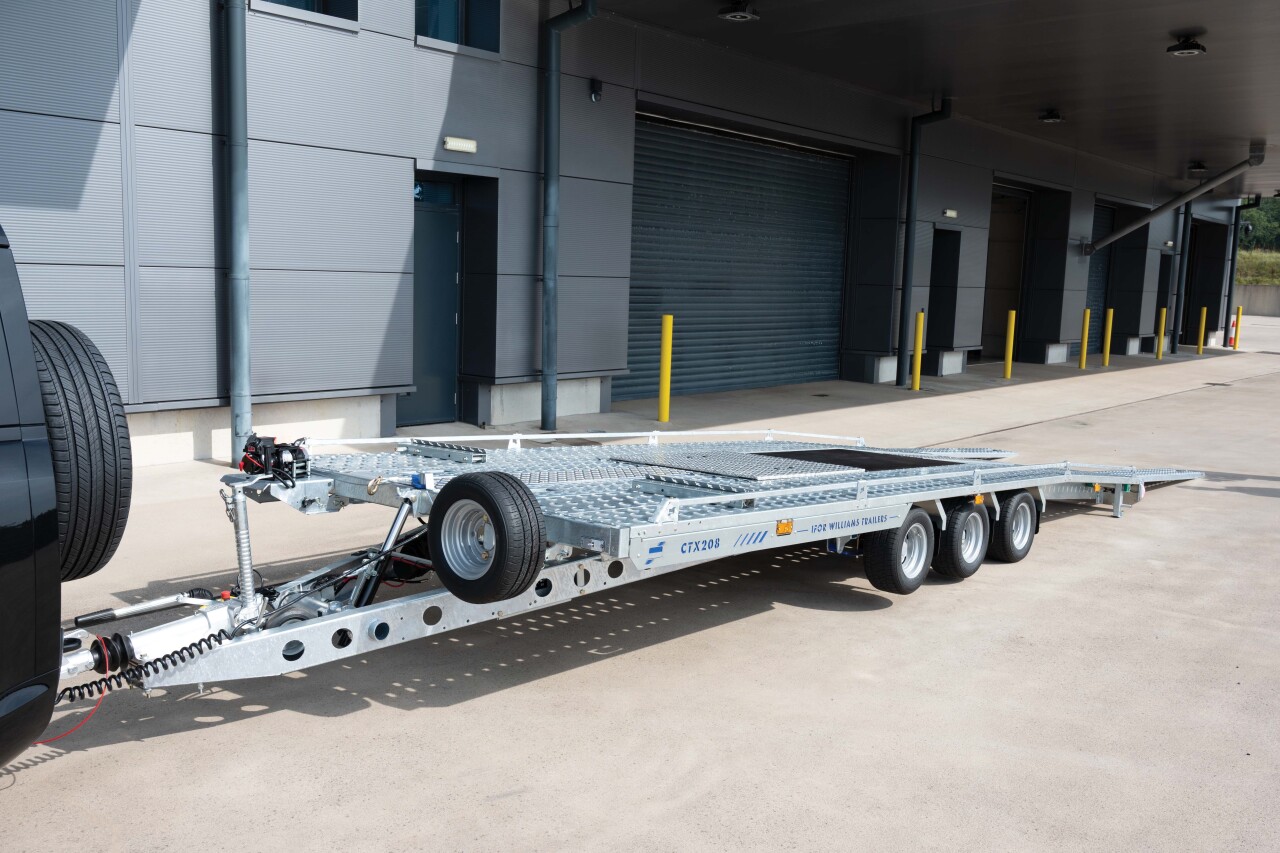

Ifor Williams CTX208 Tiltbed Beavertail Car Transporter Trailer
The new Ifor Williams CTX208 tilt-bed beaver-tail is a 3.5 tonne car transporter trailer engineered for professional vehicle recovery and transport, with a low loading angle, 2,510kg payload and versatile configuration. Ideal for a wide range... Read More
Optional Extras
Ifor Williams CTX208 Tiltbed Beavertail Car Transporter Trailer
The Ifor Williams CTX208 is the latest generation car transporter from Ifor Williams Trailers, engineered to deliver exceptional performance, versatility and reliability for professional vehicle transport and recovery applications.
With a 3,500kg gross weight, generous 6.04m x 2.30m loading bed and a payload of up to 2,510kg in its standard configuration, the CTX208 is designed to accommodate a wide range of vehicles – from everyday cars and commercial vehicles to performance and low-ground-clearance vehicles.
The CTX208 combines heavy-duty construction with a low bed height and shallow loading angles, making vehicle loading straightforward while helping to minimise the risk of damage to vehicles with low ground clearance. With a fully tilted loading angle of as little as 5°, the CTX208 is particularly well suited to specialist and performance vehicle transport.
Built around heavy-duty cross members, high tensile steel, full hot-dip galvanising, Ifor Williams manufactured axles and heavy-duty leaf spring suspension, the CTX208 is designed to withstand the demands of regular professional use.
The trailer also features a range of thoughtful details designed to make day-to-day operation easier. Anti-clatter spring hangers, bump stops and ramp hold-down plates help provide quiet towing, while the largely bolted construction allows key components to be replaced individually should damage occur.
Whether you're involved in roadside recovery, vehicle transportation, motorsport, specialist vehicle movement or general professional use, the Ifor Williams CTX208 provides a highly configurable platform built around the demands of modern vehicle transport.
- ⚖️ 3,500kg gross weight with up to 2,510kg payload*
- 📐 6.04m x 2.30m loading bed
- ⬇️ Low 0.53m unladen bed height
- 📐 Loading angle as low as 5° when fully tilted
- 🔩 Heavy-duty cross members and high tensile steel construction
- 🛡️ Full hot-dip galvanised construction for long-term durability
- 🛞 Ifor Williams manufactured axles and heavy-duty leaf spring suspension
- 🔇 Anti-clatter spring hangers, bump stops and ramp hold-down plates for quieter towing
- 🔗 Secure lashing points positioned approximately every 75mm along the bed
- 🪜 Perforated loading ramps providing high grip and secure footing
- ↔️ Full-width rear ramp channel allows ramp spacing to suit different vehicle track widths
- 🔧 Largely bolted construction for easier component replacement and repair
- 📦 Configurable centre deck for maximum payload or additional storage and working area
🚗 Designed for Professional Vehicle Transport
The CTX208 has been developed to handle a wide range of vehicle transport requirements, from roadside recovery and vehicle transportation to carrying specialist and high-value vehicles. Its combination of a low bed height, shallow loading angle, extensive lashing points and configurable centre deck provides the flexibility needed for a wide variety of applications.

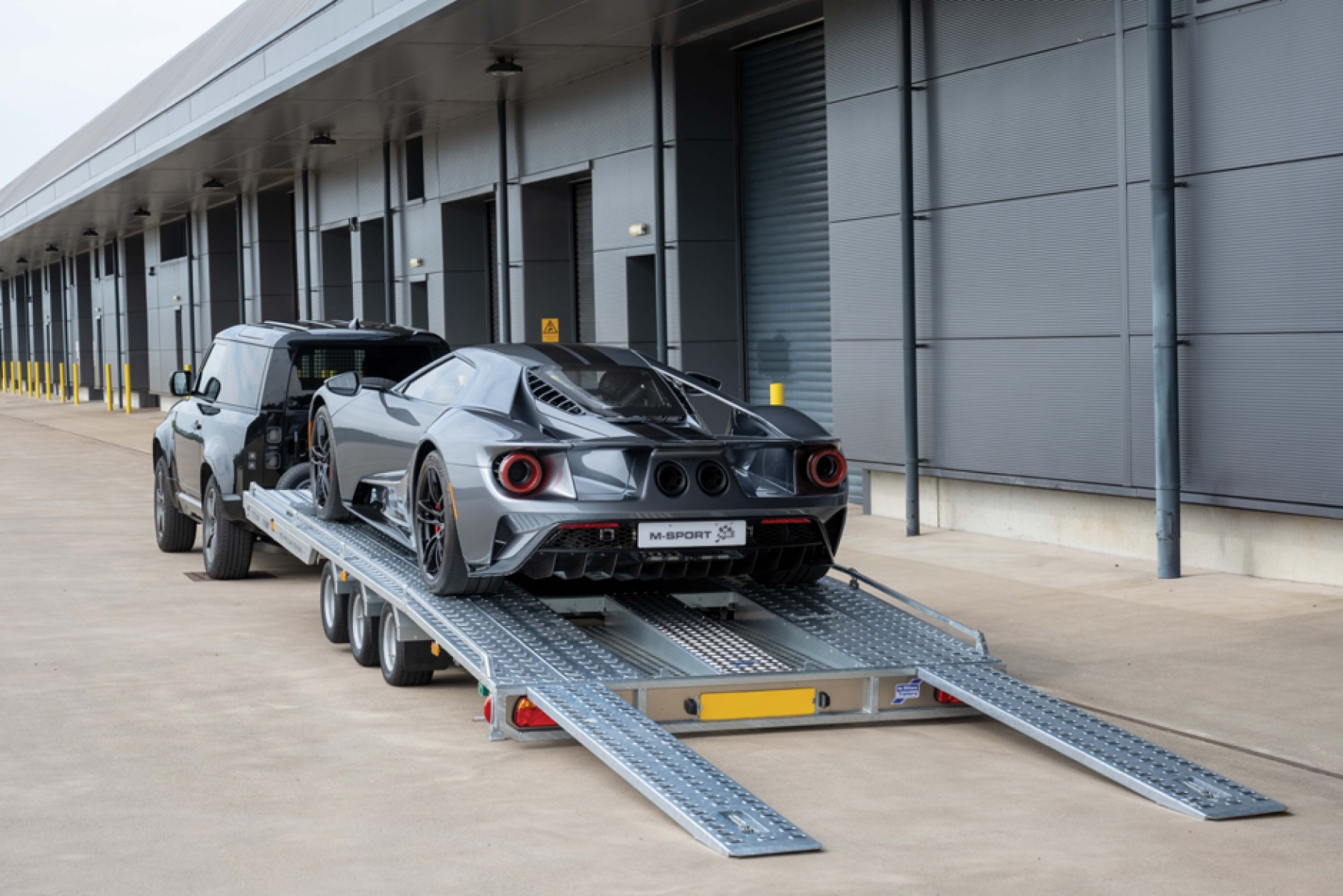

🪜 Quick-Deploy Loading Ramps
The CTX208's loading ramps are designed for fast and convenient deployment. A heavy-duty rear channel runs the full width of the trailer, allowing the ramp position to be adjusted to suit a wide range of vehicle track widths.
When not in use, the ramps stow below bed height to help minimise trip hazards. Ergonomic latches and dedicated ramp hold-down plates keep the ramps securely stored during towing.
🔗 Secure Vehicle Lashing
With lashing points positioned at approximately 75mm centres along the trailer bed, the CTX208 provides an extensive range of tie-down positions for securely restraining vehicles.
The arrangement is designed to provide excellent flexibility when positioning vehicles and offers full compatibility with up-and-over vehicle straps.
⚙️ Configurable Centre Deck
The centre section of the CTX208 can be configured to suit the intended application. It can be left open to maximise available payload, or equipped with deck infill panels and/or toolboxes to create additional usable space.
This flexible design allows the CTX208 to be configured around the individual requirements of vehicle recovery operators, transport businesses, workshops and specialist users.
🔽 Click to Show Optional Extras
- ⚡ Electric Hydraulic Tilt – upgrade from the standard manual hydraulic tilt for effortless loading and unloading.
- 🪝 Electric or Manual Winch Kits – provide additional assistance when loading vehicles onto the trailer.
- ↗️ Cross-Over Ramp Kit – enables vehicles to be loaded onto the beds of flatbed recovery vehicles via the CTX208.
- 🪜 1.8m or 2.4m Loading Ramps – choose the ramp length best suited to the vehicles being transported.
- 🧰 Toolbox Kit – secure, on-board storage for tools and equipment.
- ⚓ Propstand Kit – provides additional support and stability when loading the trailer.
- 🛡️ Side Rail Kit – provides additional security around the perimeter of the loading bed.
- 🛞 Spare Wheel Kit – keeps a spare wheel securely mounted and readily available.
- 🪵 Deck Infill Kits – creates a walkable area within the centre of the trailer.
- 🛡️ Headboard – provides additional protection at the front of the loading area.
- 🛑 Vehicle Wheel Chock Kit – provides additional security for vehicles during transportation.
- 🛞 High-Level Tyre Rack Kit – provides practical, out-of-the-way storage for spare tyres.
💼 Ideal Applications
The versatile design of the Ifor Williams CTX208 makes it suitable for a wide range of professional vehicle transport applications, including:
- 🚨 Roadside recovery and vehicle recovery
- 🚗 Professional car transportation
- 🏎️ Motorsport and performance vehicle transport
- 🏆 Specialist and high-value vehicle transportation
- 🔧 Workshop and garage vehicle movements
- 🚚 Commercial vehicle and fleet transportation
- 🛠️ Vehicle collection and delivery services
📸 Images are for illustration only. Some items shown may be optional extras and are not included in the standard trailer price.
✅ Price includes: Ifor Williams factory delivery to GT Towing Ltd.
💷 All prices include VAT.
📏 Technical Specifications
| Specification | Metric | Imperial |
|---|---|---|
| Model | CTX208 | CTX208 |
| Overall Length | 7.60m | 25' |
| Overall Width | 2.36m | 7'9" |
| Bed Length | 6.04m | 19'9" |
| Bed Width – with Side Rails | 2.24m | 7'4" |
| Bed Width – without Side Rails | 2.30m | 7'6" |
| Bed Height – Unladen | 0.53m | 1'9" |
| Loading Angle – Not Tilted | 10°–14° | 10°–14° |
| Loading Angle – Fully Tilted | 5°–7.5° | 5°–7.5° |
| Gross Weight | 3,500kg | 3,500kg |
| Unladen Weight* | 990kg | 990kg |
| Payload* | 2,510kg | 2,510kg |
*Unladen weight and payload figures are based on the trailer fitted with manual hydraulic tilt, 1.8m ramps and no additional accessories.
All specifications are manufacturer published values and are for guidance only. Always check the vehicle/trailer paperwork for exact figures.
❓ Frequently Asked Questions – Ifor Williams CTX208
Have a question about the new Ifor Williams CTX208 car transporter? We've answered some of the most common questions below. If you need further information or advice on configuring a CTX208 for your requirements, please contact the team at GT Towing.
What is the Ifor Williams CTX208?
The Ifor Williams CTX208 is a new-generation 3.5 tonne car transporter designed for professional vehicle transportation, roadside recovery and specialist vehicle transport. It combines a heavy-duty galvanised construction with a low bed height, shallow loading angles, extensive vehicle lashing points and a configurable centre deck.
What is the payload of the Ifor Williams CTX208?
The CTX208 has a maximum payload of 2,510kg when fitted with the standard manual hydraulic tilt, 1.8m loading ramps and no additional accessories. Adding optional equipment will increase the trailer's unladen weight and therefore reduce the available payload.
What is the gross weight of the CTX208?
The Ifor Williams CTX208 has a 3,500kg gross weight, making it a 3.5 tonne car transporter suitable for transporting a wide range of vehicles.
What is the loading angle of the CTX208?
The CTX208 has a loading angle of approximately 10°–14° without the trailer tilted. When fully tilted, the loading angle can be reduced to approximately 5°–7.5°, making the CTX208 particularly suitable for vehicles with low ground clearance.
How big is the CTX208 loading bed?
The CTX208 has a 6.04m (19'9") long loading bed. The bed is 2.30m (7'6") wide without side rails, or 2.24m (7'4") wide with the optional side rail kit fitted.
Is the CTX208 suitable for low cars and supercars?
Yes. The CTX208 has been designed with a low 0.53m unladen bed height and a shallow loading angle, which can be reduced to as little as 5° when fully tilted. This makes it well suited to a wide range of vehicles, including cars with low ground clearance.
How are vehicles secured on the CTX208?
The CTX208 features secure vehicle lashing points positioned at approximately 75mm centres along the trailer bed. This provides a large number of tie-down positions and allows the trailer to be used with up-and-over vehicle straps.
Does the CTX208 have a hydraulic tilt?
Yes. The CTX208 is fitted with a manual hydraulic tilt as standard. An optional electric hydraulic tilt is also available for effortless loading and unloading.
Can the CTX208 be fitted with a winch?
Yes. The CTX208 can be equipped with either an electric or manual winch kit, providing additional assistance when loading vehicles that cannot be driven onto the trailer.
Can the CTX208 be configured for vehicle recovery?
Yes. The CTX208 has been developed with applications such as roadside recovery and professional vehicle transportation in mind. Available accessories include winch kits, cross-over ramps, side rails, toolboxes, propstands, wheel chocks and an electric hydraulic tilt.
What ramps are available for the CTX208?
The CTX208 can be specified with either 1.8m or 2.4m loading ramps. The ramps locate into a full-width rear channel, allowing their position to be adjusted to suit different vehicle track widths. They can also be stored below the bed when not in use.
Can the centre of the CTX208 bed be configured?
Yes. The centre deck can be left open to maximise payload, or configured with deck infill panels and/or toolboxes depending on the intended application.
What is the overall size of the CTX208?
The Ifor Williams CTX208 measures approximately 7.60m (25') overall in length and 2.36m (7'9") overall in width.
Where can I buy an Ifor Williams CTX208?
The Ifor Williams CTX208 is available through authorised Ifor Williams Trailers distributors, including GT Towing Ltd. Contact our sales team for current pricing, availability, delivery timescales and advice on configuring your CTX208 with the accessories you require.
📐 Technical Specifications
3,500 kg / 7,716 lbs
990 kg / 2,183 lbs*
2,510 kg / 5,534 lbs*
7.60 m / 25' 0"
2.36 m / 7' 9"
6.04 m / 19' 9"
2.24 m / 7' 4"
2.30 m / 7' 6"
0.53 m / 1' 9"
10°–14°
5°–7.5°
*Weight and payload figures: Based on manual hydraulic tilt, 1.8 m loading ramps and no additional accessories. Actual unladen weight and payload may vary depending on specification and accessories fitted.
